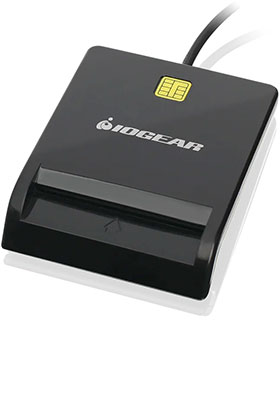

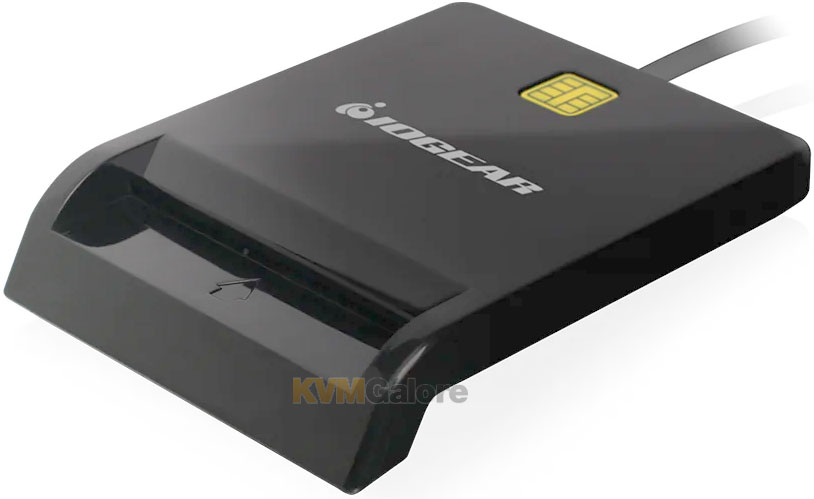

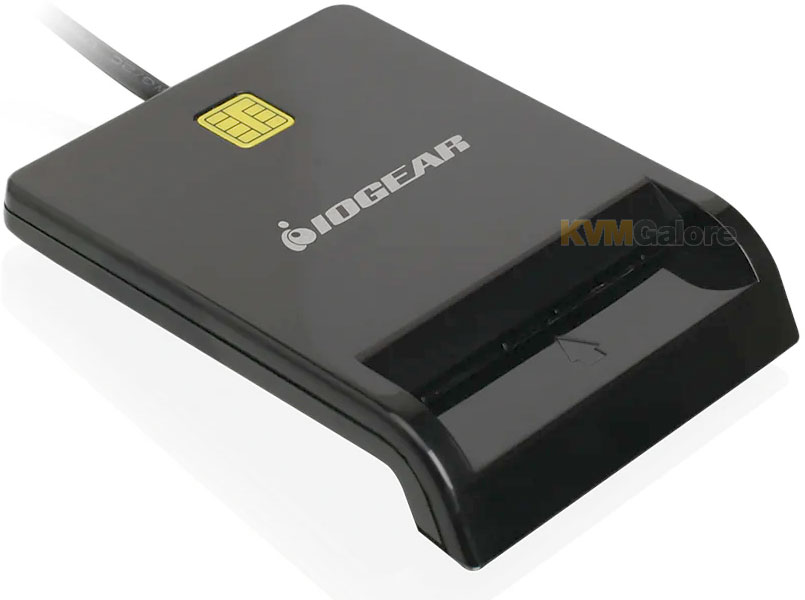

GSR212: USB Type-A common access card (CAC) reader

IOGEAR's USB common-access card (CAC) reader is the perfect solution for most civilians as well as non-military government workers who need everyday secure access. Common-access card (CAC), or Smart Card readers are often used as a communications medium between the EMV smart card and a host (e.g. a computer, a point-of-sale terminal, network login, etc.) in secure systems such as those used by government, banking and health care.

Why choose a CAC card?
Having reached tremendous adoption rates outside of the U.S., Smart Cards are now rapidly growing in this country to combat credit card fraud, while also providing next generation security and user friendly identification. The federal government issues common-access cards programmed with a personal identification verification (PIV) chip containing the data necessary for the cardholder to be properly identified and granted access to secure federal facilities and information systems. Smart Cards have been in use by the federal government in accordance with homeland-security presidential directive 12 (HSPD-12) since 2006, and now the technology is rapidly spreading to banking, healthcare and other areas requiring identity verification and secured access.

Minimize Misalignment Errors
IOGEAR's USB common-access card (CAC) reader requires the card to be inserted directly into the reader where electrical contacts retrieve the data stored in the card's chipset. IOGEAR's physical contact readers are designed to eliminate misalignment, which reduces the possibility of being misread.

Features and Benefits
• Support EMV Level 1 specification
• Designed for use with CAC middleware (not included)
• Supports PC Smart Card industry standard - PC/SC version 1.0/2.0
• ISO7816 implementation - Class A, B, and C (5V / 3V / 1.8V) Card
• Support T0, T1 protocol
• EMV 4.1 compliant
• Supports popular memory cards including: SLE 4404, 4418, 4428, 4442, 4443, and I2C
• Support short APDU and extended APDU
• Compatible with Microsoft USB-CCID driver
• Compliant with USB CCID Transport Specification Rev 1.1
• Low power consumption
• Display function: LED display to show system operation and power status
• Dual multi-protocol Smart Card interface: Main Card and Auxiliary Card
• Compliant with ISO 7816, EMV2000, GIE-CB and WHQL Standards
• Asynchronous Protocol T=0 and T=1, with Direct and Inverse Modes
• Supports CPU-based cards with ISO 7816 T=0 and T=1protocol and 2 and 3 wire Memory Cards or 12C interface synchronous card
• FIPS-201 compliant
• Suitable for applications in government, healthcare, banking, and secure network login
• Windows authentication and single sign-on (SSO) support
