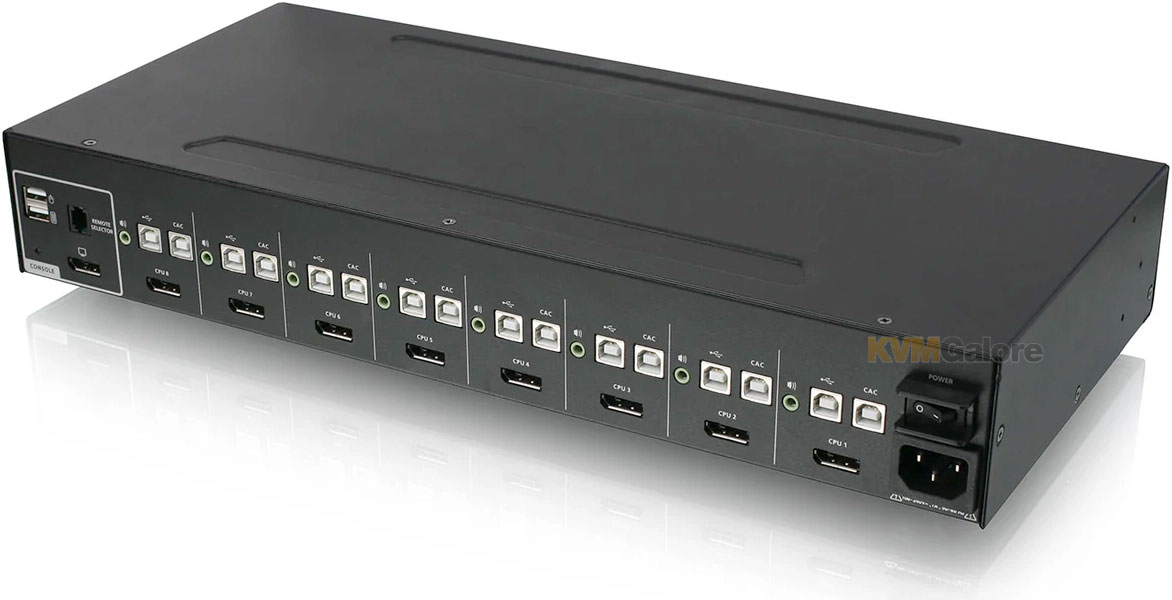

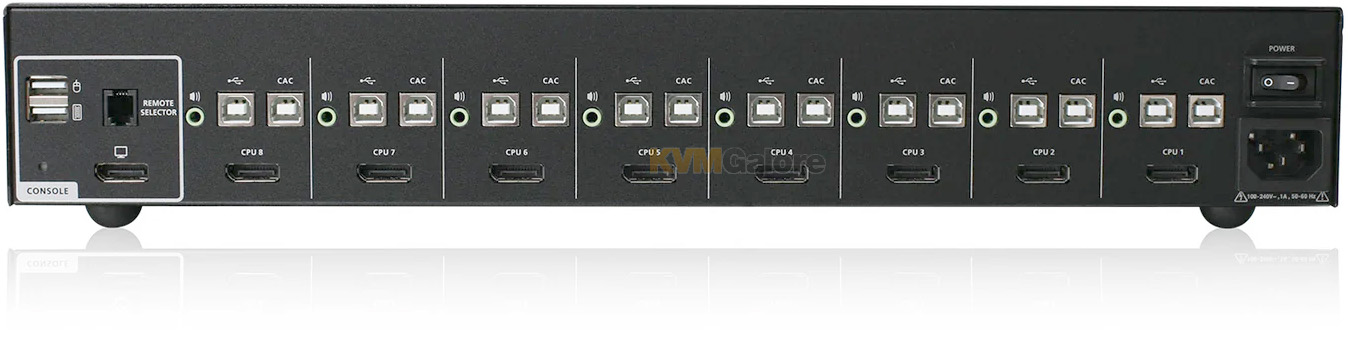

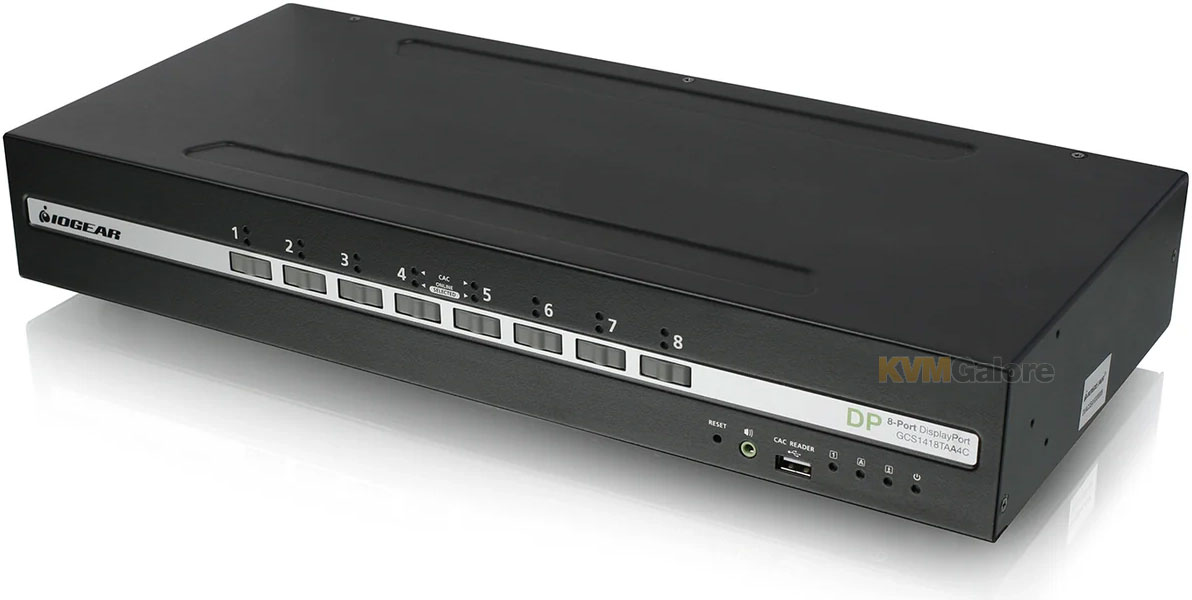

GCS1418TAA4C-UN: 8-port, single-view, universal* (DisplayPort/HDMI) secure KVM switch

with audio and CAC support, PP4.0, 6-foot cables included

• NIAP-Certified PP4.0 - Validated to Protection Profile for Peripheral Sharing Device v4.0
• CAC and biometrics support - Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers¹
• One USB console controls eight secure computers on one display
• Superior 4K Ultra-HD video resolution (3840x2160 @ 30Hz)

Secure and manage multiple data-sensitive systems from one workstation from internal and external cyber-security threats with the TAA-compliant IOGEAR 8-port single-view universal (DisplayPort/HDMI) secure KVM switch kit with audio and CAC support. Enable authorized users secure access to up to eight systems with one keyboard, mouse, a 4K @ 30Hz monitor and dedicated common access card (CAC) reader port.

Featuring the latest in Common Criteria and NIAP Protection Profile v4.0 security requirements set for the U.S. government for peripheral sharing switches, the secure KVM switch is built for multiple interfaces and ideal for use in high-security environments that demand rigorous cyber-security provisions including military and defense, federal agencies, government, utilities, commercial and healthcare applications.

NIAP Certified, Common Criteria Compliance and TAA Compliant
This IOGEAR secure KVM switch complies with NIAP PP v4.0 security certification meeting the latest cyber-security requirements from the U.S. government. The secure KVM switch also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.

Superior Video Quality
The secure KVM switch supports 4K Ultra-HD resolutions up to 3840x2160 @ 30Hz. With the addition of the universal KVM cables, the secure KVM switch can support any video port even if the monitor uses a different display standard while enabling a universal display standard.

Active Tamper-Proof System
IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.

With the combination of physical and software security, IOGEAR secure KVM switch offers secure air-gap network isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.

Dedicated Common Access Card Reader Port
A fully advanced and configurable CAC reader port supports smart cards or biometric readers in compliance with NIAP-certified access accessories.

Compatible with IOGEAR Remote Port Selector
Securely select and switch between systems with optional external remote port selector that provides full operator control for an optimized user experience.

Data Channel Isolation and Unidirectional Data Flow
IOGEAR secure KVM switches control and isolate data flow between the console device and the connected computers preventing any data transfer between the connected computers. Data channel isolation prevents data leakage between connected computers via isolated channel per port and unidirectional data flow ensures unidirectional data flow between the console devices and the selected computer. The secure KVM switch supports analog audio via speakers only.

Multiple Video Interface Support
Connect computers with different video interface using IOGEAR video adapter-cables, which enable administrators' options for preventing compatibility issues with diverse secure computer ecosystem. IOGEAR video adapter-cables connect multiple video sources to an IOGEAR KVM switch even if they are using different display standards. This flexibility enables IT managers to deploy the same KVM switch across their network without the need for unreliable active cables or costly external video converters or additional docking stations. The video adapter-cables options include HDMI^® to DisplayPort** and USB Type-C to DisplayPort***.

Government, Military and Commercial Applications
IOGEAR secure KVM switches physically isolate sensitive networks and network assets from any exposure to the public internet and only accessible with authorized permissions. Additionally, these secure KVM switches filter or block exposed USB ports on servers and desktop computers to ensure the data integrity is never compromised. Designed originally for military and federal intelligence agencies, secure KVM switches are able to serve many organizations including:
• FBI
• CIA
• NSA
• Department of Defense
• Federal departments
• State and local utilities
• Financial institutions
• Healthcare organization
• Law firms

More Features and Benefits
• Supports DisplayPort and HDMI video interfaces
• Port selection via push-button and remote port selector (sold separately) for enhanced security
• Keyboard restrictions - OSD and hotkey methods are not allowed
• Isolated channel per port - Unidirectional data flow restricts data leakage between connected computers
• Active chassis intrusion detection - Compromising the unit's cover renders the switch inoperable
• Tamper-evident seals - Visually detect attempts to gain access to switch's internal components
• Tamper-proof hardware - Integrated circuits are soldered directly onto the circuit board to hinder component sabotage
• Non-reprogrammable firmware prevents tampering and attempts to reprogram the switch's firmware
• Clears keyboard buffer - Data clears automatically after transmission to switch and resets
• Analog speaker support - Secure audio data input does not convert digital audio to analog audio
• Multiplatform support - Windows^® 2000, Vista, 7, 8, 8.1, 10, 11 and later; Linux; Mac OS X and later; Sun
• Rugged, durable, Metal Enclosure
• Build-in, internal power supply

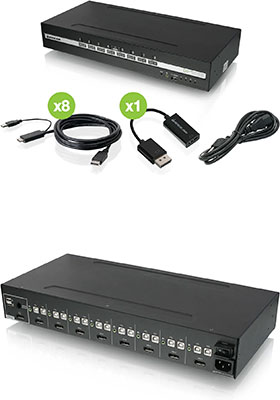

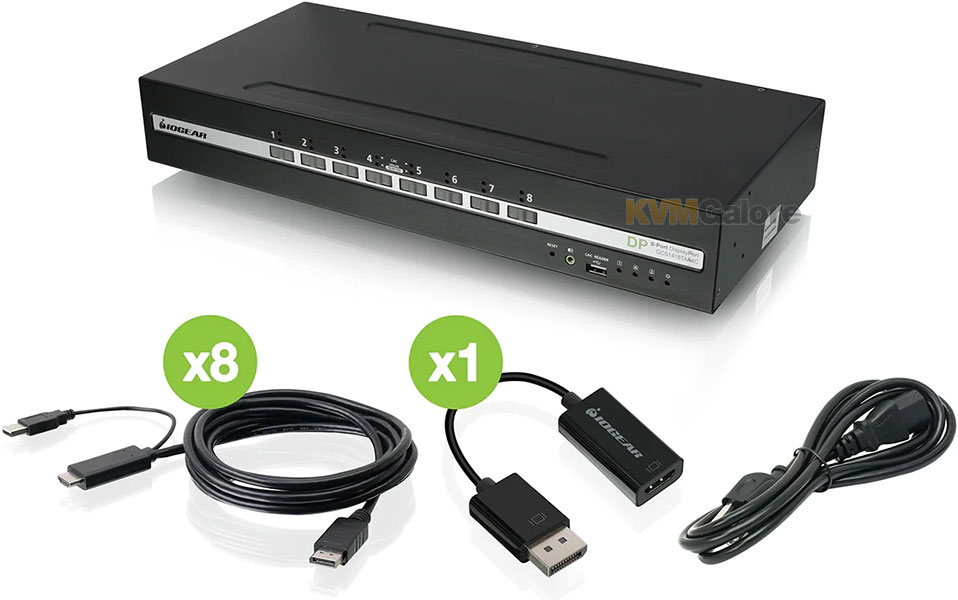

Package Includes
1x 8-port single-view universal (DisplayPort/HDMI) secure KVM switch w/ CAC support
1x Power cord
1x DisplayPort (male) to HDMI (female) monitor adapter (GDPHD4KA)
8x 6 foot HDMI to DisplayPort cables (G2LHDDP02)
8x 6 foot DisplayPort, audio, 2x USB cable sets (G2L902UTAA3)
1x User guide
1x Warranty card

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

1 Compatible with Microsoft^® LifeCam HD-3000 and Microsoft fingerprint reader
* The cables and adapter that ship included make it possible to connect this DisplayPort KVM switch to HDMI computers and an HDMI monitor
** Ship included
*** Purchased separately
