4K 18G HDBaseT receiver

(328 feet) with L/R audio de-embed, supporting USB, LAN, ARC, IR, RS-232

Note: Transmitter units are purchased separately

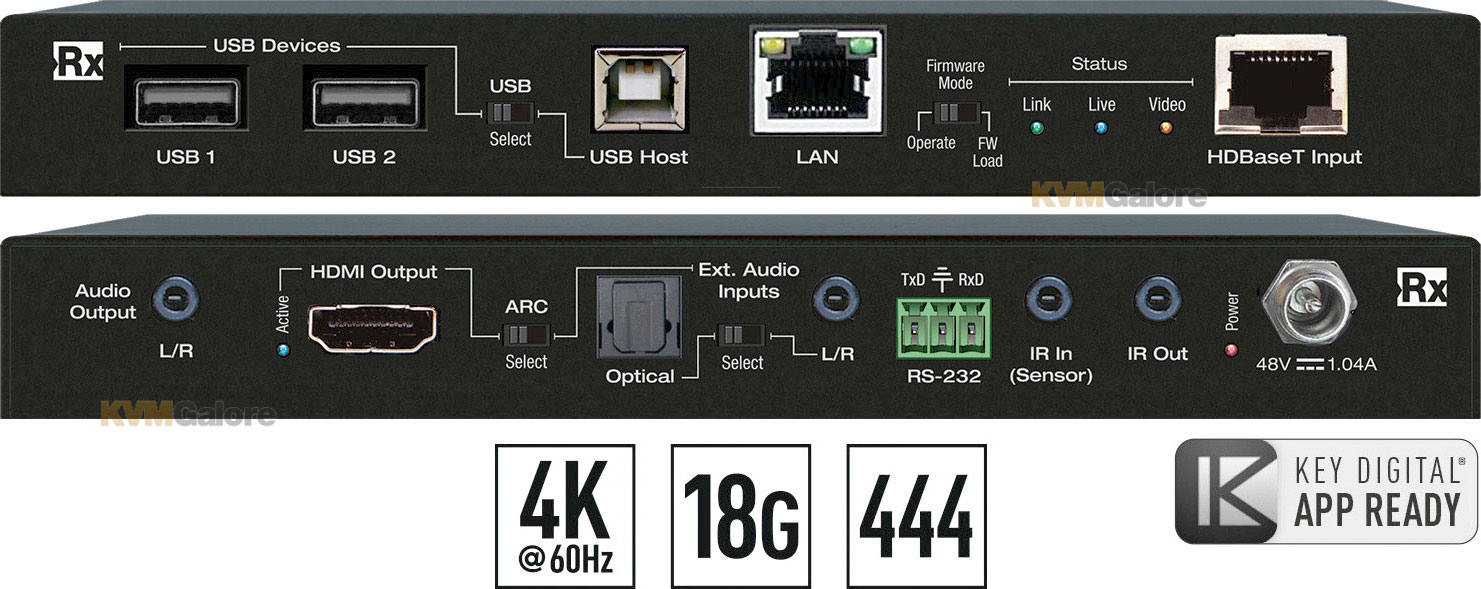

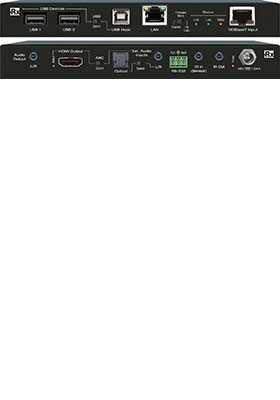

Key Digital^® KD-X100MRx is a 4K/Ultra-HD, HDCP 2.2 compliant HDBaseT receiver with 18Gbps bandwidth, flexible audio return channel (ARC), audio de-embedding, and USB for a complete soft-codec enabling extension receiver.

KD-X100MRx is sold a la carte to natively integrate with Key Digital HDBaseT transmitters, KD-X4x1WUTx (wall plate) or KD-PS22UTx (surface mount).

KD-X100MRx provides PoH power to its Tx units, and audio de-embed output for ease of integrating the selected source with audio systems.

USB ports enable keyboard, mouse, cameras or USB microphones or mixed audio signals from DSPs to be fed back to the conferencing host computer at the wall plate or presentation switcher.

4K/Ultra-HD signals are extended up to 328 feet (100 m) and 1080p up to 492 feet (150 m) via single CAT-5e/6 cable.

In addition to AV signals, KD-X4x1WUTx extends IR, RS-232, and TCP/IP for controlling remotely located equipment.

Features and Benefits
• Tx Options: Sold a-la-carte to integrate natively with KD-X4x1WUTx wall-plate or KD-PS22UTx black box transmitters (sold separately); Also integrates natively and is included with KD-UPS52U
• Soft-Codec Enabling System: USB Host + Device ports on Rx and chosen wall-plate / presentation switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X4x1WUTx / KD-PS22UTx; Rx is powered by Tx when integrated with KD-UPS52U
• Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R connector
• ARC / eARC: Audio may be returned to the connected Tx unit (KD-PS22UTx or KD-X3x1WUTx) from the connected HDMI display or external audio inputs
• CEC Manager™: Passes through CEC control signals for monitors & projectors generated by KD-X4x1WUTx, KD-PS22UTx, or KD-UPS52U
• PTZ USB Camera Integration: Marries natively with KD-CAMUSB for full PTZ control via KD-App with supported presentation switcher
• KD-AMP220 Integration: Marries natively with KD-AMP220 for full volume and mic mix control with supported presentation switcher
• Ultra-HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• 4K/Ultra-HD (18G) Signal Extension: Up to 328 feet (100 m)
• 1080p Signal Extension: Up to 492 feet (150 m)
• 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
• HDR10: More life-like images through a greater range of luminance levels
• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
• Deep Color Support: Up to Ultra-HD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
• RS-232: Bi-Directional control to/from Tx/presentation switch and Rx unit
• Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API
• Low Profile: Super slim chassis design

Included Accessories
2x Mounting bracket
1x IR Sensor
1x IR Emitter
1x 3-pin phoenix terminal
1x Power Supply, 48V / 1.04A, 50W, KDPS50W48VC
