HDMI 4K 60Hz 100 feet wireless extender kit

with IR support

• 100 foot (30 m) wireless HDMI extension of resolutions up to 4K 3840x2160p 60fps
• Low-latency extension based on 5G wireless frequency with anti-interference stabilizing
• Supports 4K HDMI signals with HDR, HDCP 2.2, and 2 channel audio
• 5G WiFi technology for reliable transmission - transmits through walls and ceilings with minimal range loss
• IR signal extension for source control
• Point-to-point pairing of up 4 extender sets using 4 unique channels
• Kit includes transmitter, receiver, power supplies, IR emitter and IR sensor

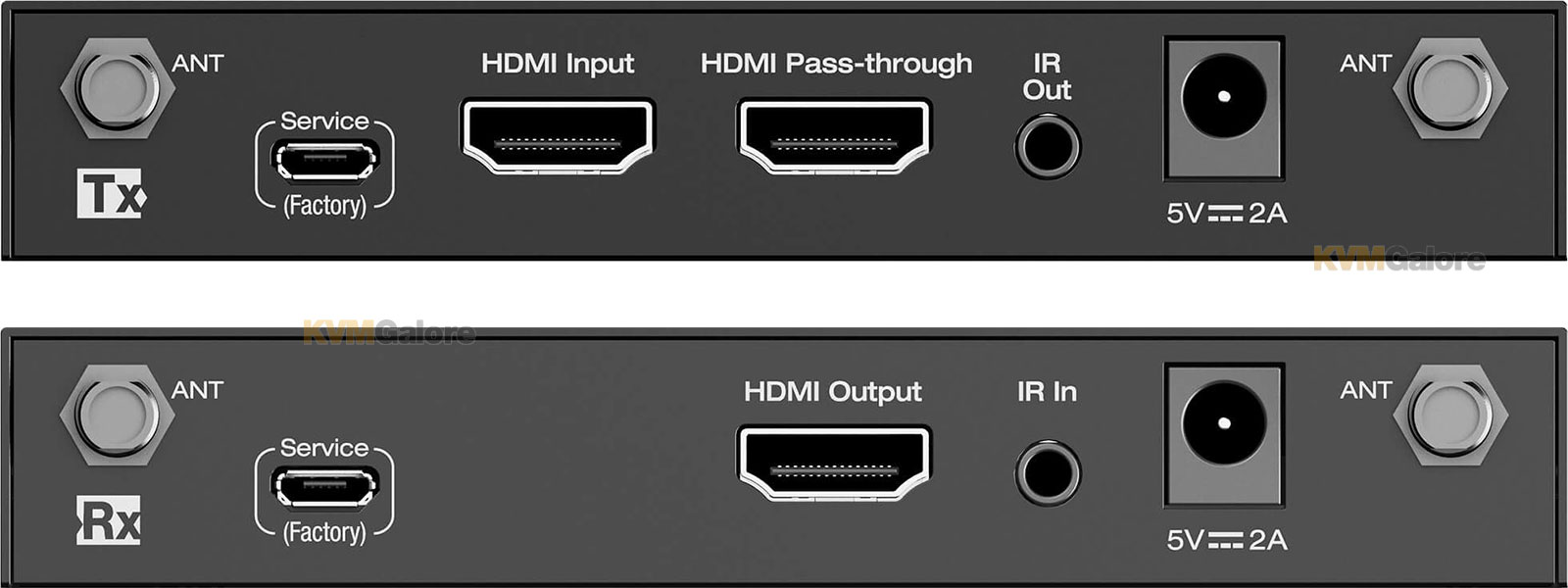

• HDMI pass-through port for connecting second display, monitor, or AV receiver

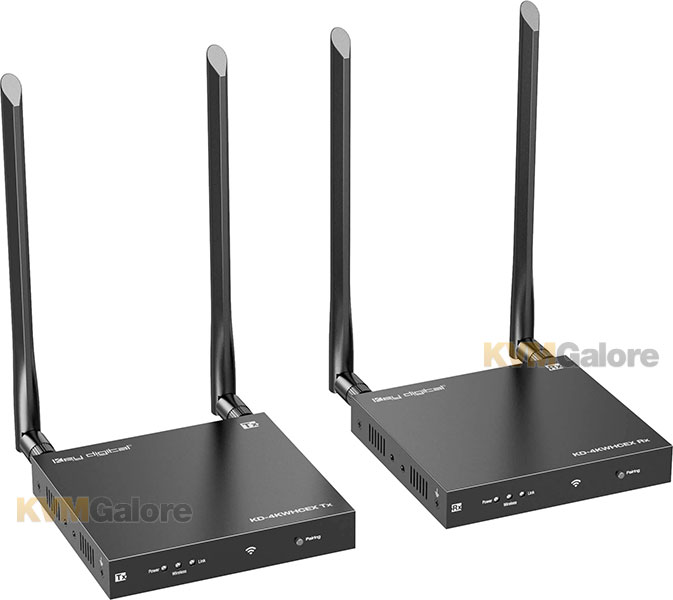

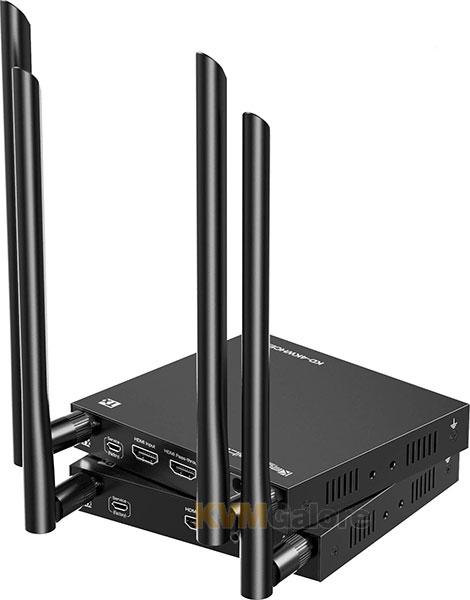

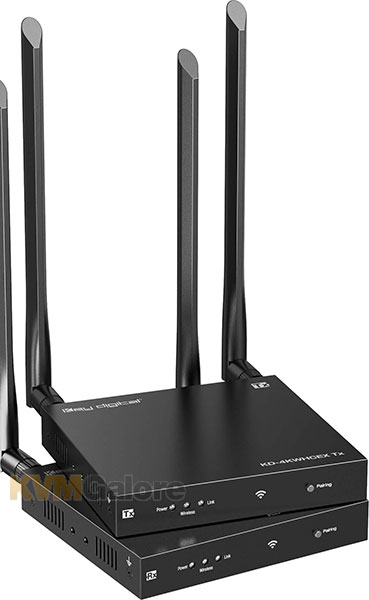

KD-4KWHCEX is a wireless HDMI extender kit with support for resolutions up to 4K.

The innovative technology behind KD-4KWHCEX reliably extends HDMI signals with the latest standards - up to 3840x2160 resolution, HDR, 4:4:4 chroma, and deep color – for an effortless solution ideal for temporary and permanent installation in presentation spaces, outdoor AV setups, and all environments where running a new wire is not possible.

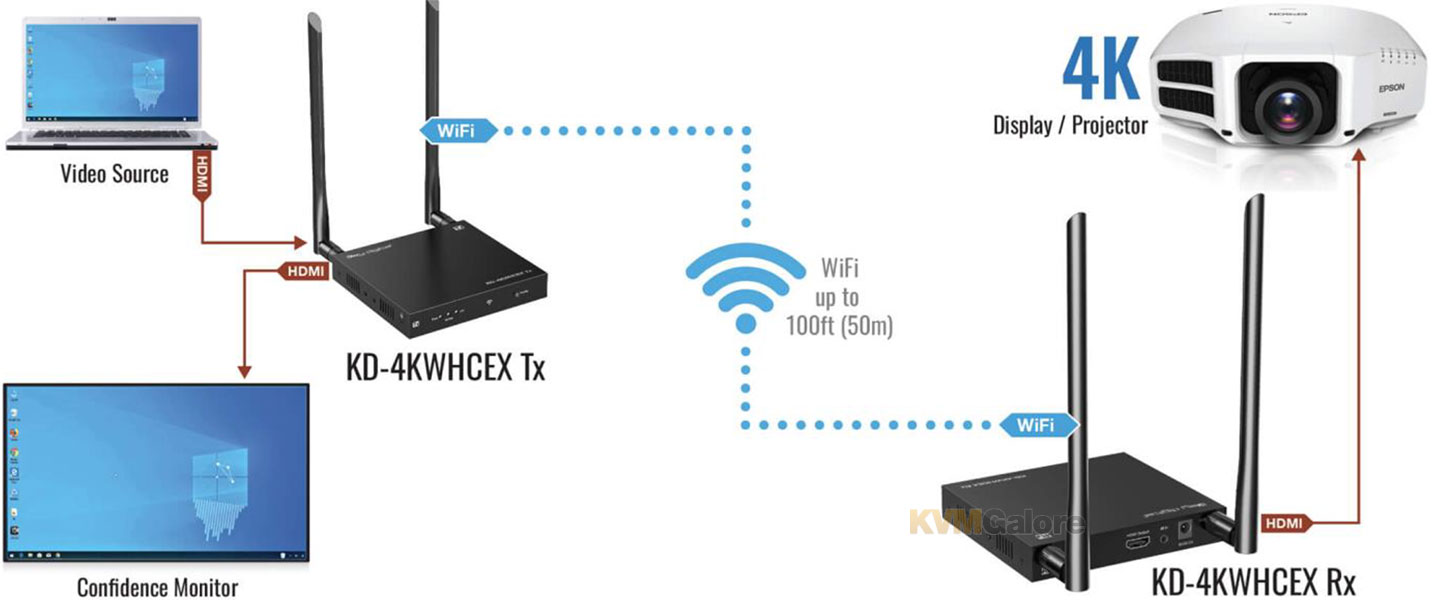

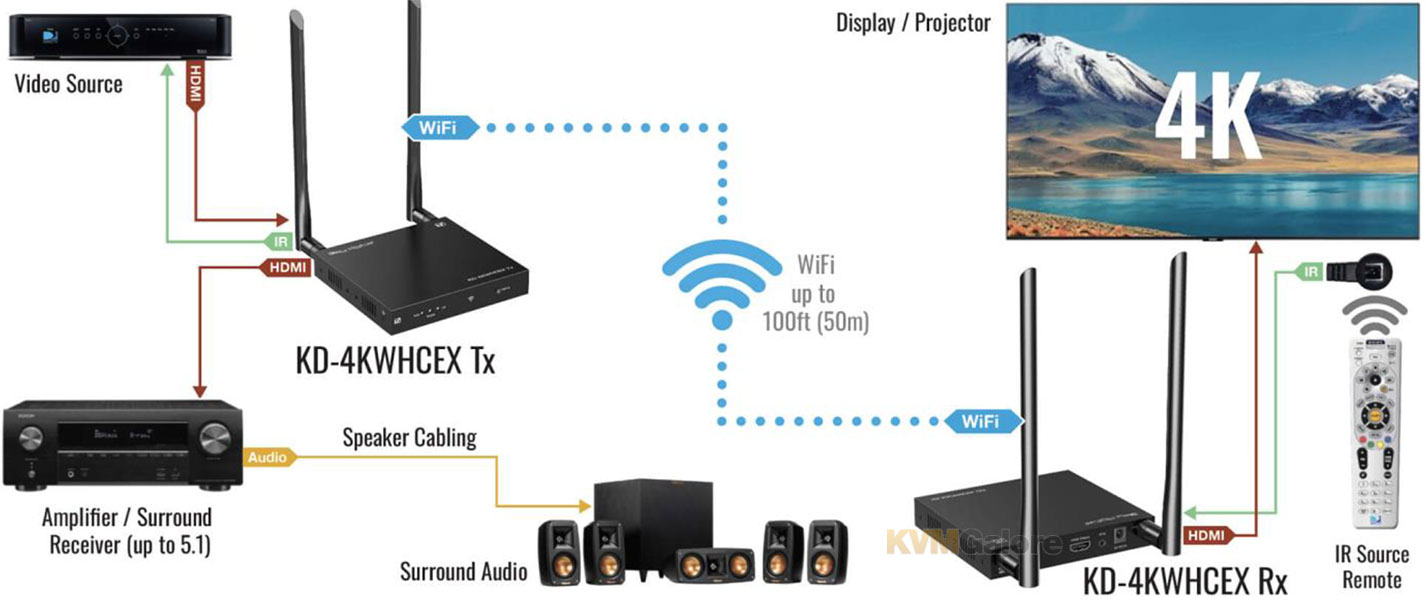

KD-4KWHCEX features an HDMI pass-through port for connecting a local monitor or sending audio into an AV receiver. Additionally, the included IR sensor and emitter allow for control of the connected HDMI source devices such as cable boxes or streamers.

Features and Benefits
• Wireless Extension: Great for temporary setups or installations where new wiring is not possible
• 4K Resolution Support: Up to 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth) and backward compatible
• Signal Distance: 100 foot (30 m) extension with optimal quality (up to 164 feet (50 m) capable in ideal environments)
• 5G WiFi Technology: Transmits through walls and ceilings with minimal range loss and maximum resistance to wireless interference
• IR Control Extension: Sensor at Rx unit collects IR signals from device remote to control source equipment at Tx unit with IR emitter
• HDMI Pass-Through: Ideal for local monitor or connection into AV receivers
• Surround and 2ch Audio Support: Pass-through port supports up to Dolby^®, DTS™ (formats up to 5.1/6.1). 2ch audio maximum support via wireless extension to Rx unit
• Point-to-Point: Pairing of up 4 extender sets using 4 unique channels possible within the same job site
• Complete Kit: Includes transmitter, receiver, power supplies, IR sensor, IR emitter, antennae, mounting brackets and screws
• HDR (High Dynamic Range): More life-like images through a greater range of luminance
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• Visually Lossless Compression: 18G enabling technology allows wireless extension of HDMI signals with latest resolution and features
• HDCP 2.2: Compliancy up to HDCP 2.x and backward compliant
• HDCP Authentication: HDCP sources are authenticated by the HDCP key on transmit unit, for one-to-one topology
• AV Signal Regeneration: Re-clocking of TMDS (AV signal) channel data at Transmitter unit for brand-new AV signal

Accessories Included
2x 5V/2A, 24W DC Power Supply Model KD-PS5V2A
4x Antenna
1x IR Sensor
1x IR Emitter
4x Mounting L-Bracket
10x Mounting Screw
2x Grounding Screw
