2-input, 1:4 HDMI splitter (distribution amplifier)

• Max. Data Rate - 6.75Gbps (2.25Gbps per graphics channel)
• I-EDIDPro™
• 3D Pass-Through.
• Control - IR and RS-232
• Size - Desktop
• Audio - E

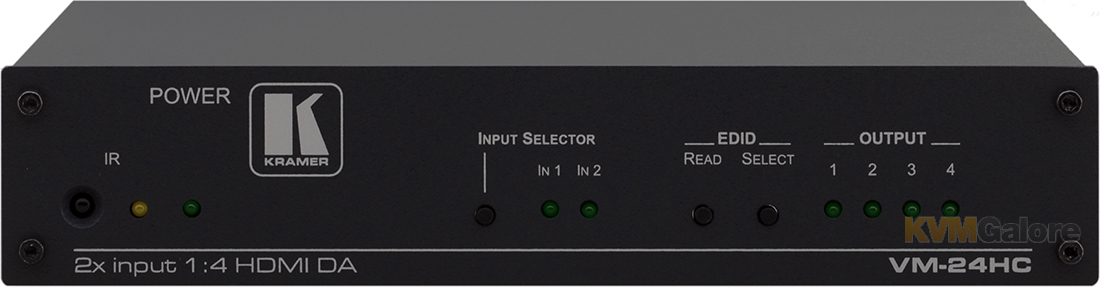

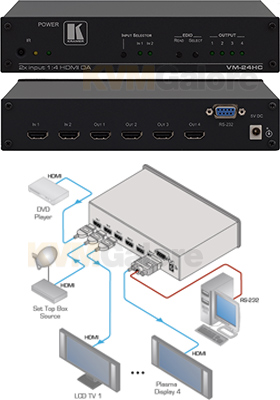

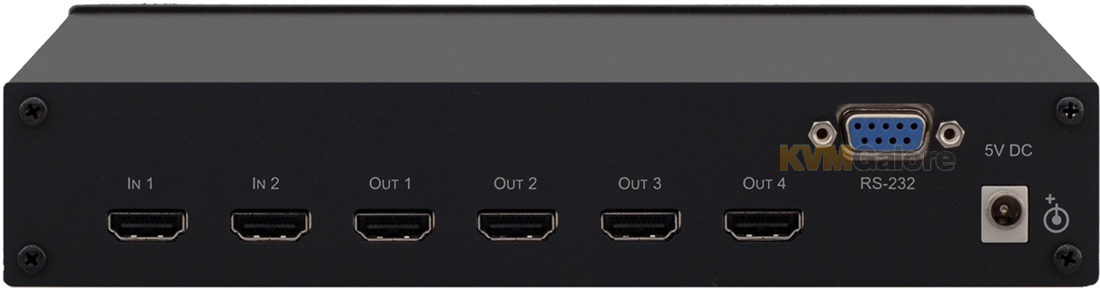

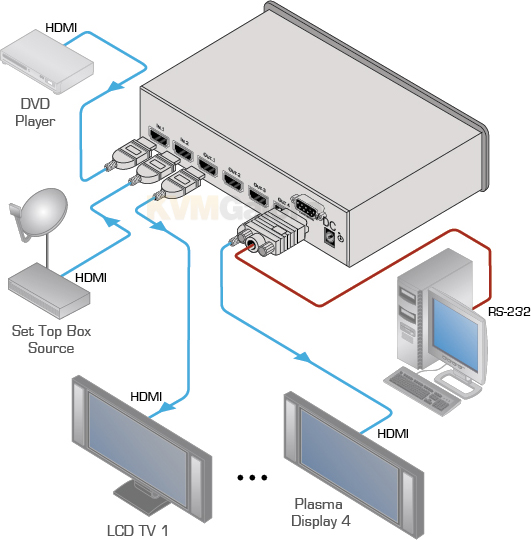

VM-24HC is a high-performance switcher and distribution amplifier for HDMI™ signals. The unit accepts one of two HDMI inputs and distributes the selected signal to four (4) HDMI outputs.

Applications
• Home theater, presentation and multimedia applications.
• Rental and staging.

Features and Benefits
• Max. Data Rate - 6.75Gbps (2.25Gbps per graphics channel).
• HDTV Compatible.
• HDCP Compliant.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling and processing algorithm ensures Plug and Play operation for HDMI systems.
• EDID Handling - Acquires the EDID from one output, from all connected outputs (auto-mix) or uses a default EDID.
• Kramer Equalization and re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• HDMI Support - With Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
• 3D Pass-Through.
• Flexible Control Options - Front panel, IR remote and RS-232.
• Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter.
