2-input, 1:2 HDMI splitter (distribution amplifier)
• Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel)
• Enhanced EDID
• Rack Kit - RK-3T
• Size - DigiTOOLS®
• Audio - E

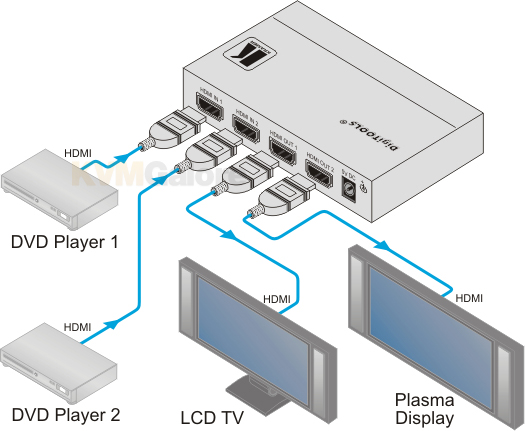

VM-22H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to two identical outputs.
Features and Benefits
• Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
• HDCP Compliant.
• HDMI Support - Deep Color, x.v.Color™, Lip Sync, CEC.
• 3D Pass-Through.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.

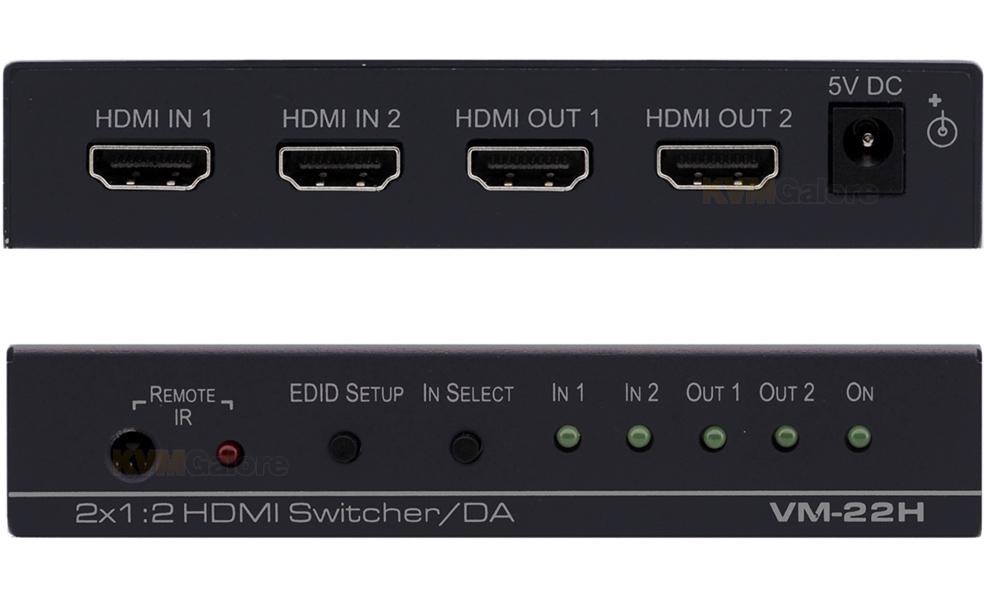

• Active Output LED Indicators.
• Control - Front panel or IR remote switching.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
• Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
