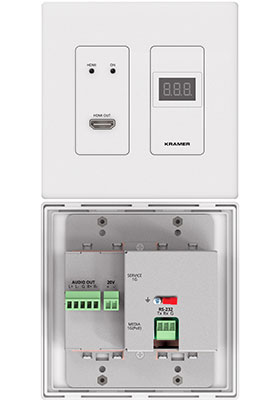

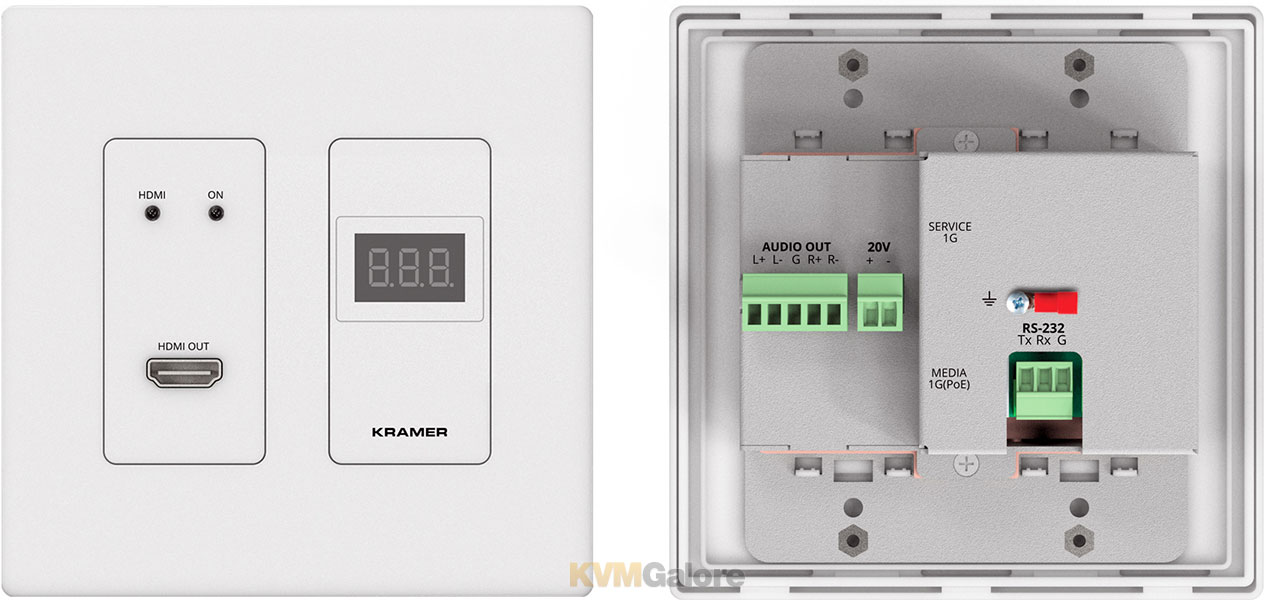

High-performance, highly-scalable, AV (audio/video) over IP [AVoIP] wall-plate decoder

with white Decora^® design frame set for 4K over 1G network

Note: Encoder units are purchased separately

• Outstanding end-user experience
• Ideal for large-scale deployments
• Robust security
• Simple planning and rollout

Get a full AVoIP streaming solution for anywhere low-latency, high-quality video presentation is required.

WP-DEC7 wall-plate decoder is an advanced receiver for streaming 4K @ 60Hz (4:2:0) video signals, RS-232, or CEC signals via Ethernet over copper cable in unicast (one-to-one) or multicast (one-to-many) configurations. It decodes streams over an IP network to HDMI output, and transmit RS-232 or CEC signal over IP network.

The KDS-7 line comprises a full range of encoders and decoders, supports up to 1000 video sources, enables simple and fast deployment, and easily scales to suit any size network AV installation.

Delivering a superb user experience, enterprise IT-grade security and advanced yet intuitive management, KDS-7 is a perfect fit for enterprise, education, homeland security, military or government sites of any size.

Exceptional Quality
• Streams up to 4K @ 60Hz (4:2:0) resolution signals over a 1G network interface
• HDR10 support up to 4K @ 30Hz 4:2:2 12 bits
• Provides unicast and multicast streaming
• Analog audio de-embedding - WP-DEC7 extracts the HDMI audio signal or LAN streaming audio and outputs it as balanced analog audio
• Video-wall support - WP-DEC7 can create a video wall of up to 16x16 displays

Advanced and User-friendly Operation
• Convenient and comprehensive control - control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet, or front panel buttons.
• PoE support - device power is supplied by a PoE (power over Ethernet) connection from a PoE switch
• Control gateway - through P3K or special TCP connection, remote users can control/communicate with RS-232, or CEC to the connected devices
• Separate service LAN port - a second LAN port is available for physical separation between AV and command streams to improve security and reliability
• Analog/embedded audio outputs

Robust Security
• Enterprise IT-grade security - KDS-7 devices comply with IT security requirements, including 802.1x and HTTP-S/TLS.
• Security certification - All devices carry OWASP Top 10 certification for web application security.
• Separate ethernet ports for optimal security and experience -Physical separation between control and AV data over two separate Ethernet ports ensures IT control and an uninterrupted audio-visual experience.

Simple Planning and Rollout
• Cost-effective from day one - Plug-and-play integration with leading IP network switches, such as Netgear M4250 series, enable deployment in a wide variety of network topologies. There is no need to deal with complex IP packets prioritization or switching setting. Offering easy management, high reliability and adjustable bandwidth control, KDS-7 is extremely cost-effective to maintain over the long term
• Full product range for any site, any application - The comprehensive KDS-7 line spans encoders, decoders and auto-switcher encoders in a choice of rack and wall-plate form factors, as well as a dedicated manager device. The broad set of products within the KDS-7 product line allows quick and cost-effective rollout of AV-enabled spaces of all forms and size. The eight different KDS-7 devices can be combined in any way, with any quantity of decoders, according to the site needs.
• Integrated with Kramer's complete audio-visual solutions, KDS-7 line is part of Kramer's market-leading full AVoIP-based solution. It is pre-integrated with Kramer Control, allowing efficient deployment and control of any space, at a fraction of the time and cost of standalone alternatives. It also works perfectly with KDS-USB2 for AVoIP remote access to any USB peripheral devices, such as webcams.

Features and Benefits
• Instantaneous switching time - 1 second
• Highly scalable - 999 channels build in support
• State of the art management device
• Rich set of management capabilities - Standard P3K Open API, LCD screen for configuration
• Enterprise IT-grade security - 802.1x and HTTPS/TLS
• Security certification - OWASP Top 10 certificate
• Separate Ethernet ports for optimal security and experience
• New HW architecture that enables robust FW update
• Cost-effective from day one
• Full product range for any site, any application
• Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, etc.
• Using PoE switch - up to 13W consumption
• Embedding and de-embedding audio

Applications
• For real-time essential installations such as command and control rooms
• For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
• AV distribution systems with one or more sources and many displays in schools, universities, and public venues
• For AV installations where low latency KM/KVM capabilities are required
