1:4 4K HDMI 2.0 splitter (distribution amplifier)

• Resolution - Up to 4K @ 60Hz Ultra-HD (4:4:4)
• Max. Data Rate - 17.82Gbps
• HDMI 2.0 and HDCP 2.2 compliant
• Kramer Equalization and re-Klocking™ technology
• Default EDID
• Size - MegaTOOLS®: Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter
• Audio - E

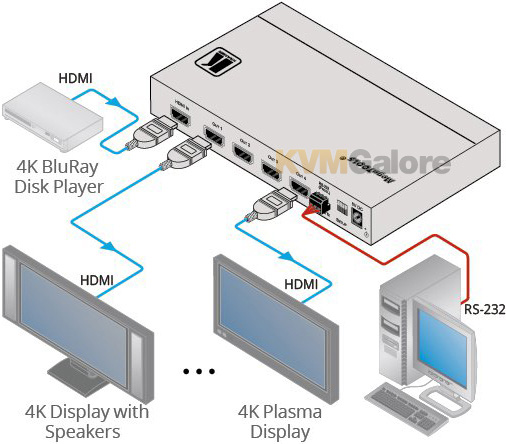

VM-4H2 is a distribution amplifier for 4K Ultra-HD HDMI 2.0 signals. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical outputs.

It distributes signals having resolutions up to 4K @ 60 (4:4:4) with HDMI 2.0 and HDCP 2.2.

Features and Benefits
• Resolution support - Up to 4K @ 60Hz (4:4:4) Ultra-HD.
• Max. Data Rate - 17.82Gbps (5.94Gbps per graphic channel).
• HDTV compatible.
• HDMI 2.0 and HDCP 2.2 compliant.
• 3D pass-through.
• HDMI support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
• Kramer Equalization and re-Klocking™ technology - Rebuilds the digital signal integrity to travel longer distances.
• Default EDID - For fast and efficient connection of the unit. The default EDID feature lets you connect the VM-4H2 without having to connect a display to the output.

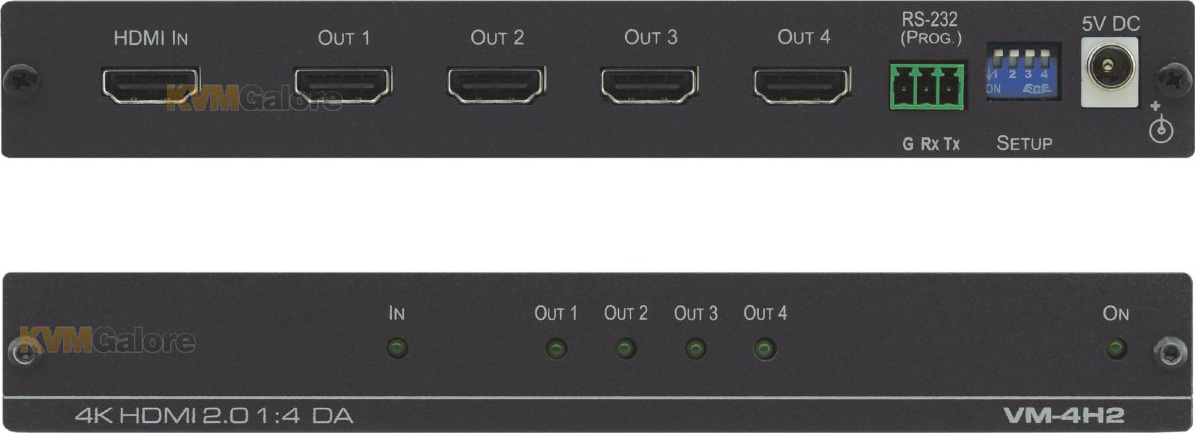

• RS-232 port - For upgrading firmware.
• Dynamic range support (HDR).
• Operating modes selectable by DIP-switch: force RGB, lock EDID, HDCP enable, programming mode.
• Plug and play operation.
• Cascade of Kramer devices like distribution amplifiers.

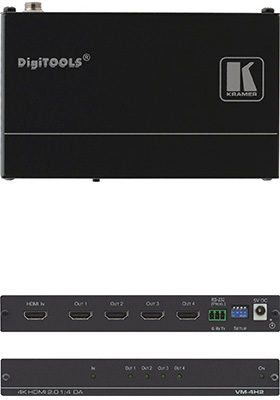

• A compact MegaTOOLS® enclosure with a 5V DC power source.

Applications
• Home theater, presentation and multimedia applications
• Digital signage, entertainment, retail
• Medical and defence applications that require high-resolution support
• Rental and staging
