2-port automatic 4K Ultra-HD HDMI standby switcher

• Max. Data Rate - 17.82Gbps
• HDMI & HDCP 2.2 Compliant
• 4K @ 60Hz (4:4:4) UHD resolution support
• Size - TOOLS
• Audio - E

VS-211H2 is a high-performance automatic switcher for 4K UHD HDMI video signals. Offering priority and last-connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection. It supports resolutions up to 4K @ 60Hz (4:4:4) UHD.

The user-friendly VS-211H2 includes auto switching - last-connected and priority - and optional manual switching.

VS-211H2 includes actual video output detection and not just for 5V connections. This enables more reliable switching and better support of HDMI equipment. It also conserves power and product life. VS-211H2 switches off the 5V output when there are no active inputs, allowing the display to go to sleep.

Applications

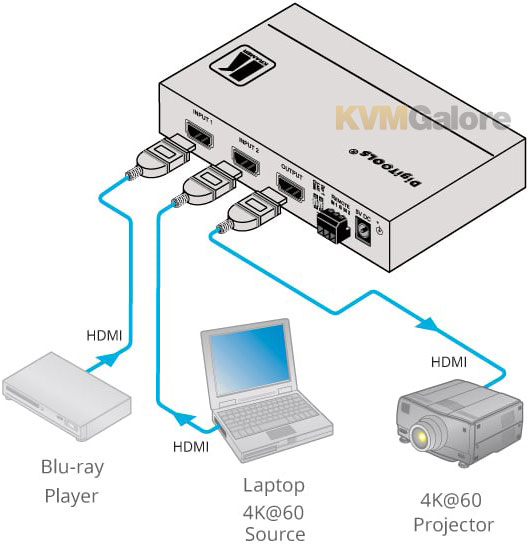

Presentation systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging.

Features and Benefits
• Maximum data rate of 17.82Gbps (5.94Gbps per data channel)
• Maximum resolution 4K @ 60Hz UHD (4:4:4)
• HDTV compatible
• HDCP 2.2 and HDMI 2.0 compliant
• 3D pass-though
• HDMI support for Deep Color, x.v.Color™, Lip Sync, up to 7.1 Uncompressed Audio Channels, CEC
• Advanced auto switching based on video clock detection
• Contact closure for remote manual switching that overrides auto switching
• HDMI power on the output follows the input, (that is, there is no power on the output when there is no active input)
• EDID pass thru that passes EDID signals from display to source

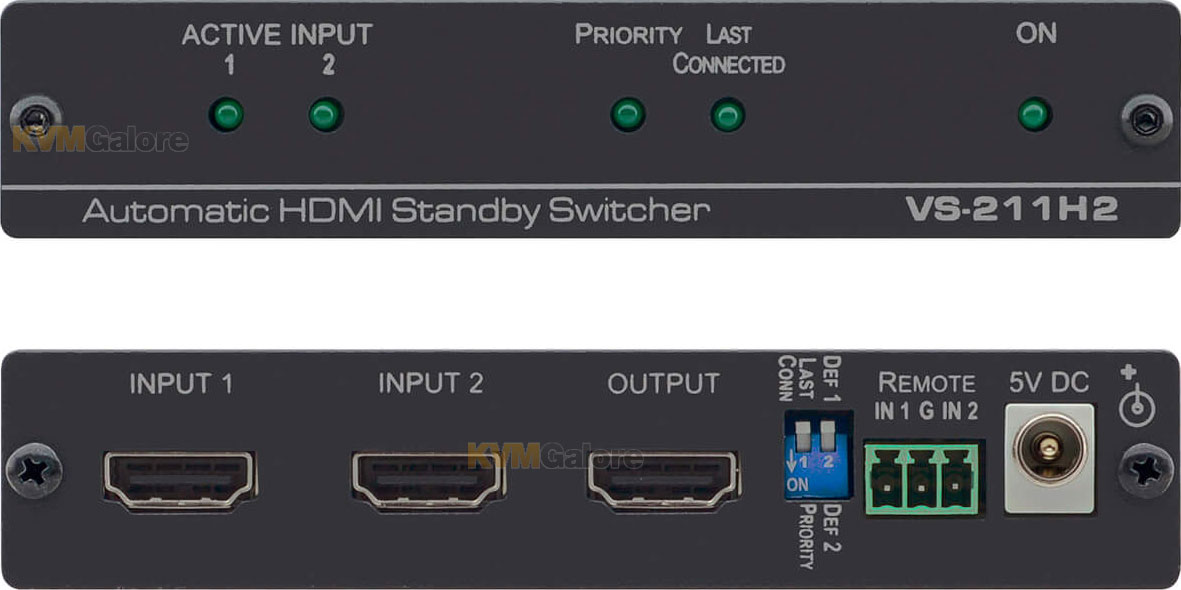

• DIP-switches for setting the switching mode
• Compact DigiTOOLS® enclosure where 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
