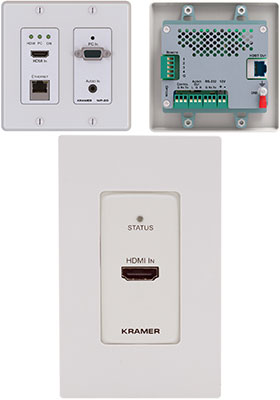

HDBaseT Wall-Plate Extenders

4K60 4:2:0 HDMI PoE wall-plate transmitters and receivers

with optional VGA, USB-C, RS-232 and IR over HDBaseT

Kramer HDBaseT wall-plate extenders are high-performance, HDBaseT wall-plate transmitters and receivers for 4K @ 60Hz (4:2:0) HDMI and HDCP 2.2, with optional VGA, USB-C, RS-232 and IR signals over twisted pair.

The Transmitter converts the input signal into an HDBaseT signal and transmit it to a compatible Receiver.

They extend signals over CATx cables at up to 4K @ 60Hz (4:2:0) 24bpp video resolution and provide even further reach for lower HD video resolutions.

These wall-plates are powered through PoE (power over Ethernet) over the twisted pair cable.

High Performance Transmitters and Receivers
Professional HDBaseT transmitters and receivers for providing long-reach signals over twisted pair copper infrastructures. Kramer HDBaseT wall-plate extenders are standard extenders that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.

Reliable PoE (power over Ethernet) Powering
Auto-senses the extension line PoE status, and accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.

HDMI Signal Extension
HDCP 1.4 and 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.

EDID Pass-through
Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.

Multi-channel Audio Extension
Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.

Cost-Effective Maintenance
Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting.

Easy Installation
Compactly fits into standard US 1 or 2-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.

WP-20: HDMI and VGA auto-switcher/transmitter

WP-20CT: HDMI and USB-C auto-switcher/transmitter

WP-211T: 2x HDMI auto-switcher/transmitter

WP-789R: HDMI, RS-232 and IR receiver

WP-789T: HDMI, RS-232 and IR transmitter
