1:16 HDMI splitter (distribution amplifier)
• Max. data rate - 6.75Gbps (2.25Gbps per graphic channel)
• HDCP compliant
• Enhanced EDID
• Size - Standard 19" (1U), Rack "ears" included
• Audio - E

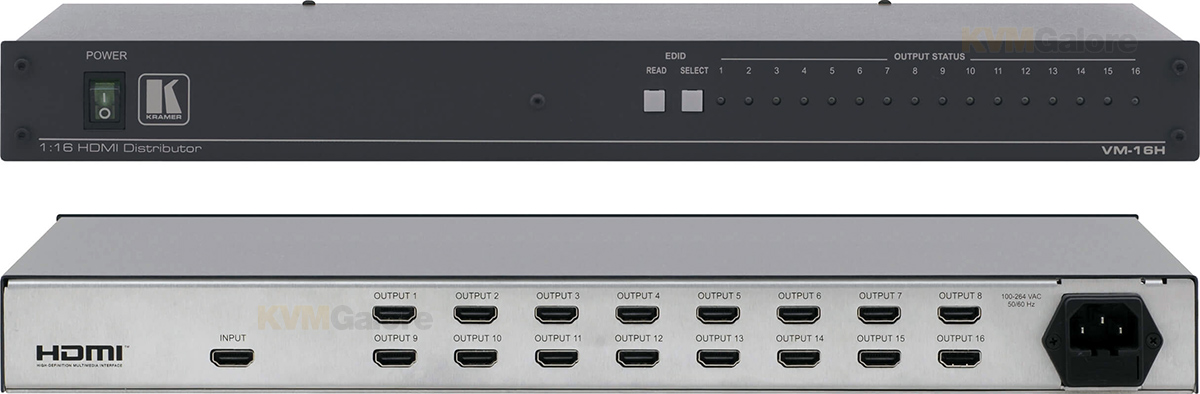

VM-16H is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to 16 identical outputs.
Kramer VM-16H 1:16 HDMI distribution amplifier is a high quality distributor that accept an HDMI input and distributes the signal to 16 outputs respectively, allowing one or more of the outputs to be connected to receiving devices, thus making them a versatile, reliable component in a video system.
VM-16H distributes signals having resolutions up to and including 1080p, and all HDTV formats.
In particular, the HDMI distributor features:
• Up to 2.25Gbps bandwidth per graphic channel
• Data reclocking and equalization
• A default EDID for fast and efficient connection of the unit
• I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems
• 3D pass-through
• HDMI support - HDMI (with Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC)
• HDMI connectors, output status LEDs, and EDID read and select buttons
VM-16H is housed in a 19" 1U rack-mountable enclosure, and is fed from a 100-264V AC universal switching power supply.
The HDMI distributor is ideal for:
• Home theater, presentation and multimedia applications
• Rental and staging
• Retail store displays
Features and Benefits
• Max. data rate - 6.75Gbps (2.25Gbps per graphic channel)
• HDTV compatible
• HDCP compliant
• HDMI support - Deep Color, x.v.Color™, Lip Sync, CEC
• 3D pass-through
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances
• Active output LED indicators
• Worldwide power supply - 100-240V AC
• Standard 19" rack-mount size - 1U, rack "ears" included
Package Includes
• VM-16H 1:16 HDMI distribution amplifier
• Power cord
• Rack-mount "ears"
