Active wall-plate HDMI receiver over shielded twisted pair (STP)

for 295 feet extension

Note: Transmitter unit is purchased separately

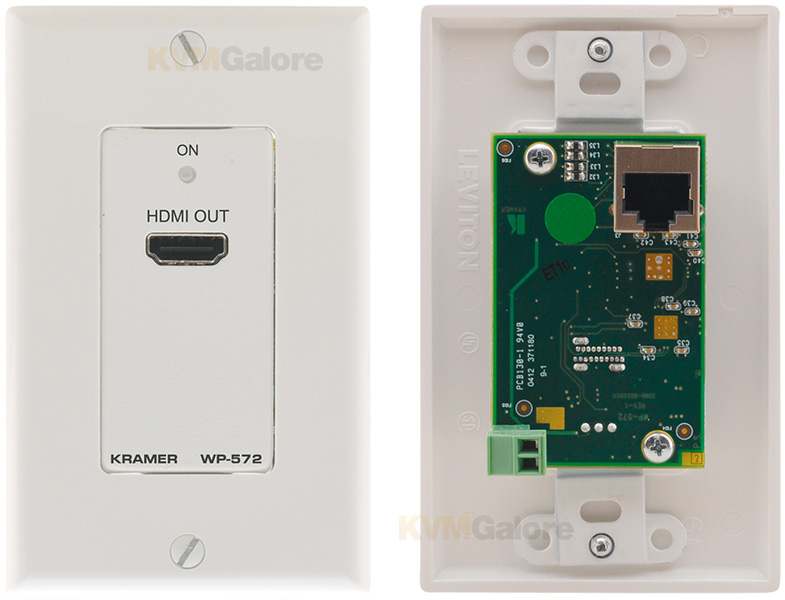

WP-572 is a DGKat™ twisted pair receiver for HDMI signals. The WP-571 transmitter unit (purchased separately) converts an HDMI signal to a single twisted pair signal and the WP-572 converts the twisted pair signal back to an HDMI signal.

Applications
• Board, conference, and training rooms.
• Presentation systems.
• Signal distribution and home theater.

Features and Benefits
• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliant.
• DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
• HDMI Support - HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
• 3D Pass-Through.
• System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
• Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT-5, CAT-6, and CAT-7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
• EDID PassThru - Passes EDID signals between the source and display.
• Active Power Indication - The ON LED lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached.
• Power Connect™ System - A single connection to the transmitter powers the receiver.
• Dimensions - 3.3cm x 3.6cm x 10.4cm (1.3" x 1.42" x 4.1") W, D, H.
• Wall Plate Size - 1 gang US.
