SDVoE* manager for KDS-8 series streaming products

over a 10G network

• Management of up to 255 KDS-8 devices
• Intuitive configuration of AV channel routing, video walls and multiview systems

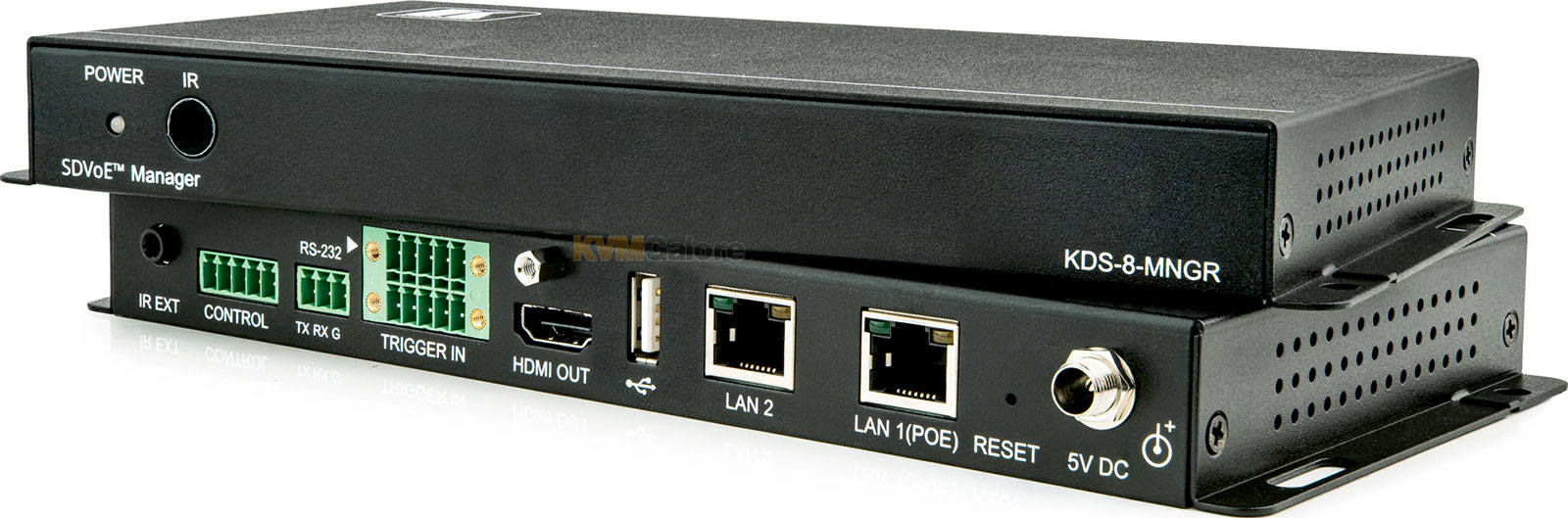

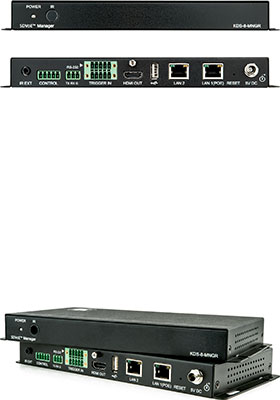

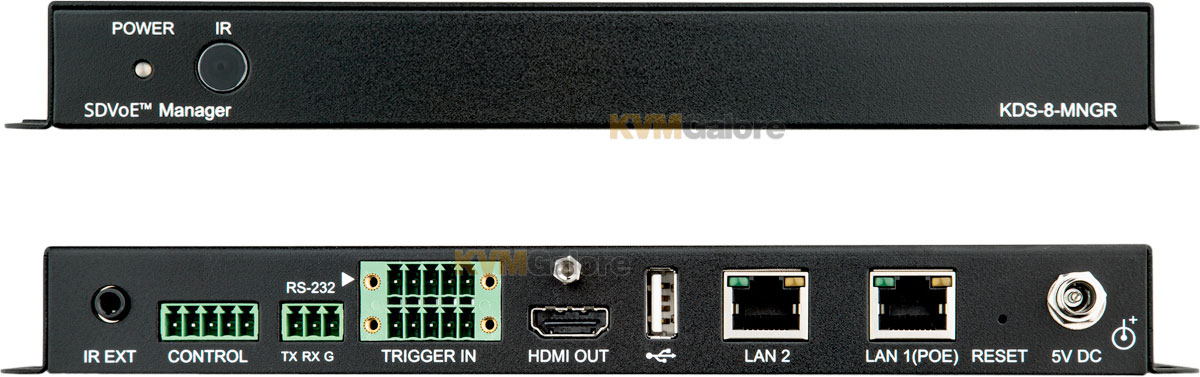

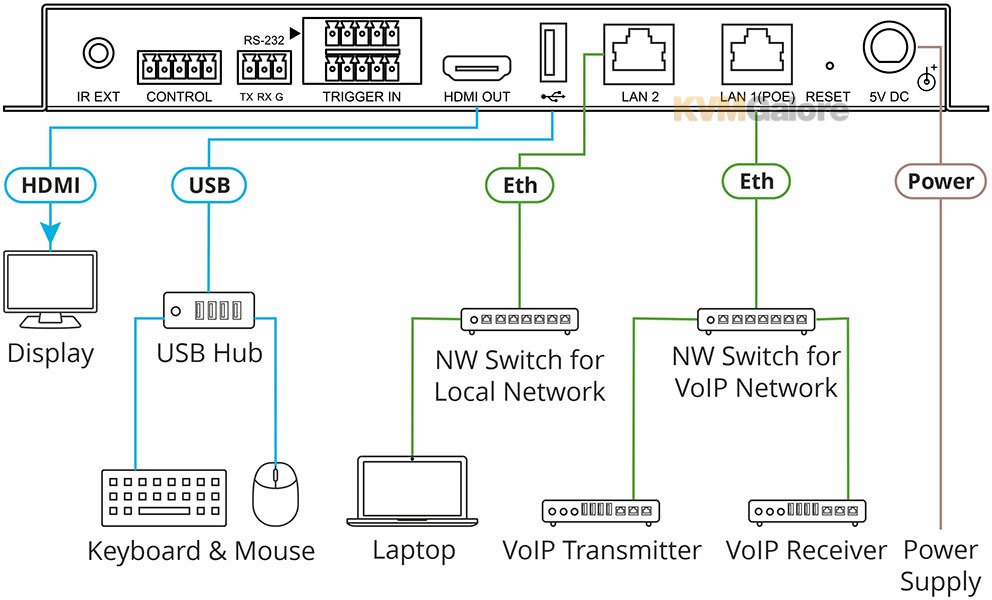

KDS-8-MNGR SDVoE manager is the solution for configuration and management of KDS-8 and KDS-8F deployments within the same network. Just install the unit into the same local network as the extenders (encoders and decoders) to easily define and configure channel routing selections (including video, audio, and a variety of control interface types) using the embedded web pages. Without the use of this centralized control unit, each encoder/decoder pair would only function in a point-to-point capacity.

Additionally, KDS-8-MNGR supports controlling and configuring the matrix, video wall, and multiviewer modes of connected KDS-8 devices. The settings of all connected encoder/decoder units, including IP configuration, compatibility settings, and extender status are clearly displayed and easily managed in the embedded web pages.

A trigger input interface is also provided to allow the easy addition of a Kramer Control remote keypad, or other trigger-supporting products, which can be installed within a podium or table in a conference room or classroom. This interface can allow the user to activate stored macros with the simple press of a button. Standard control is available via the embedded web pages (remote or local), RS-232, Telnet and IR Remote.

Features and Benefits
• Centralized Management - Manage and configure multiple compatible KDS-8 devices through a single web interface; Control the independent routing of video, audio and control signals; Configure matrix, video wall, and multiviewer modes
• Customizable - Create macros to further streamline and customize operation of the connected devices
• Status at-a-Glance - Displays the status of all connected Transmitters and Receivers, including IP addresses, channel selections, and more
• Serial Control - Generates serial commands to directly control an external serial-controlled device
• Flexible Power - Can be powered by Ethernet switches supporting the IEEE 802.3af 2003 PoE standard (optional)
• Convenient Control Options - Standard control is available via embedded web pages (remote or local), RS-232, and Telnet

* Software-Defined Video over Ethernet
