4-output video-wall driver

cascadable

• Quick front panel setup
• PC App for comprehensive setup
• Up to 64 displays with additional devices
• HDCP and EDID support
• Constant output sync
• CEC auto display control

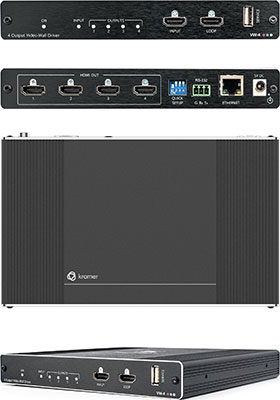

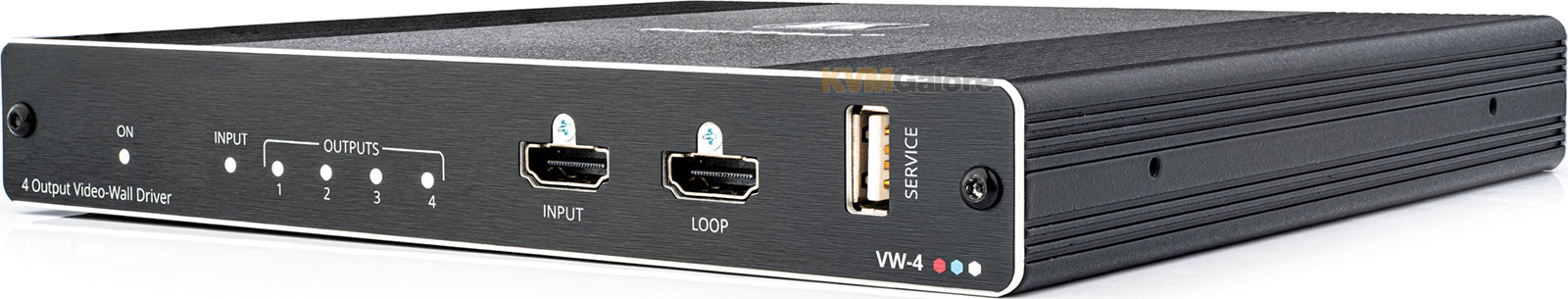

VW-4 is a 4-output video-wall driver designed to quickly and easily configure and manage video walls

Use one VW-4 device to create any wall configuration with up to 4 displays, for example, a 2x2, 4x1, 1x4, 2x1, 3x1 video wall

Connect additional devices to create walls of any size and configuration of up to 64 displays

Configure a single or multiple device setup using VW-4 app via Ethernet or RS-232, or quickly configure a basic setup using the local dip switches

VW-4 provides exceptional quality and user-friendly operation

Exceptional Quality
• Scalable Video-walls - Create and manage a video-wall of up to 4 displays or, by adding devices, create video-walls of up to 64 displays
• Content Protection - Supports HDCP 2.2 on the input and loop output and HDCP 1.4 on the main outputs
• EDID Support - Upload EDID files, copy any output EDID to the input, and select from several built-in EDID files
• Reliable Video - Features constant output sync, and includes auto-sync off options for shutting down the output when no input is detected
• Auto Display Powering - CEC capabilities turn ON or OFF the connected displays according to the status of the input video
• HDMI Support - CEC (by-pass loop for output only), 4K @ 60Hz (input and loop output), 1080p (output), Deep Color, 7.1 PCM, as specified in HDMI 2.0

Advanced and User-friendly Operation

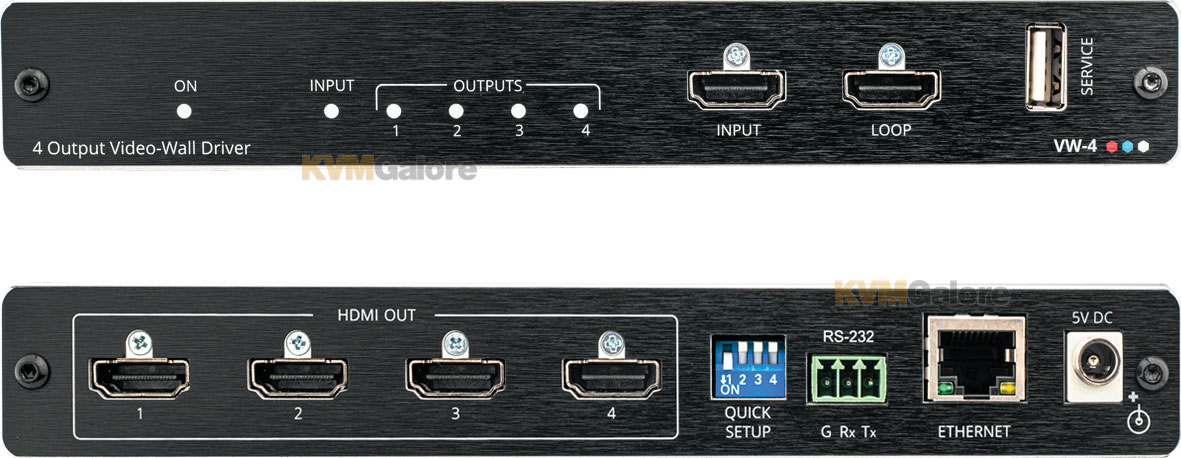

• Quick, Basic, Local Setup - Use front panel DIP-switches for basic setup of video-walls up to 16 displays
• Full Feature Configuration - Use VW-4 app via Ethernet or RS-232 to set up video-walls of up to 8x8 displays
• Also use the app for bezel corrections, HDCP status, factory reset, upgrading firmware, viewing network settings and copying EDID

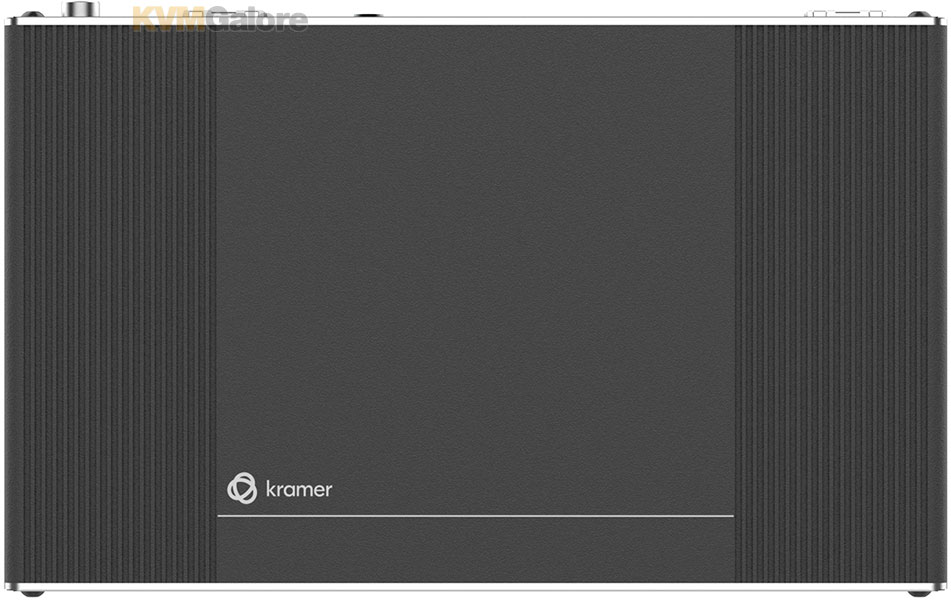

• Easy Installation - Compact MegaTOOLS^® fan-less enclosure for surface mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter

Typical Applications
• Command and control rooms
• Digital signage
• Stock market displays
• Building lobbies
• Corporate offices
• In-store retail promotion
• Convention and trade shows.

Control
• DIP-switch settings - for basic video-wall configuration
• VW-4 app, via the Ethernet or RS-232
• Remotely, by RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller

Included Accessories
1x Power adapter
1x Bracket set
4x Rubber feet
