500086: Extend digital S/PDIF or TOSLink audio 500 feet

over a single CAT-5e/6 cable with PoC, outputting both S/PDIF and TOSLink simultaneously

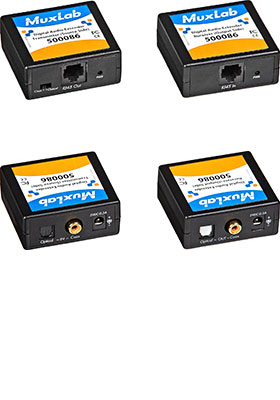

MuxLab digital audio extender kit (500086) is a versatile digital audio extender and converter.

The product allows one (1) digital coax (S/PDIF), or digital optical (TOSLink) source to be connected to a digital audio receiver supporting either digital coax (S/PDIF), or digital optical (TOSLink) inputs. Outputs on the 500086 receiver unit are simultaneous, effectivrly converting S/PDIF to TOSLink, or TOSLink to S/PDIF.

The audio transmission signal can be distributed to up to a distance of 500 feet (150 m) in a point-to-point configuration over a single CAT-5e/6.

The extender supports most standards to transmit two channels of uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound, such as Dolby^® digital Plus or DTS-HD High Resolution Audio (multichannel digital audio Dolby digital^® 5.1, DTS, and Dolby^® True HD).

Features and Benefits
• Converts digital optical (TOSLink) to digital coax (S/PDIF), digital coax (S/PDIF) to digital optical (TOSLink)
• Input (Tx): one (1) digital coax RCA (S/PDIF), one (1) digital optical (TOSLink)
• Output: one (1) digital coax RCA (S/PDIF), one (1) digital optical (TOSLink) – outputs are simultaneous
• Switch for selecting between S/PDIF and TOSLink inputs on source side (Tx unit)
• Power over cable – either Tx or Rx unit can be powered
• 1m digital optical (TOSLink) cable included

Package Includes
1x Transmitter (Tx )unit
1x Receiver (Rx) unit
1x 5V power supply
1x 3-foot (1 m) optic cable
