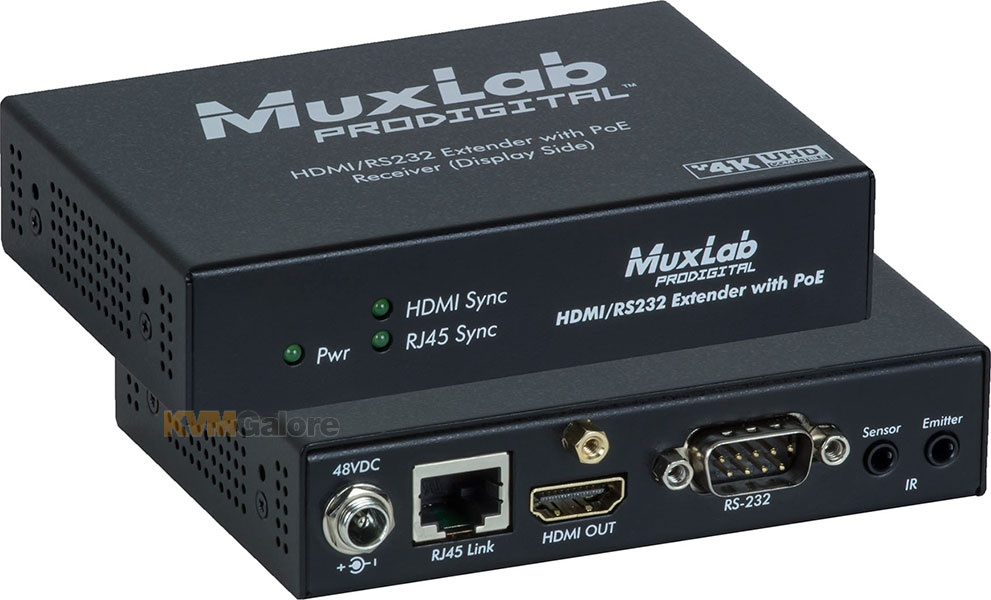

500454-POE-RX: Connect an HDMI source to a remote display (point-to-point)

up to 131 feet apart at 4K; up to 230 feet apart at 1080p with PoE support

Note: Transmitter units are purchased separately

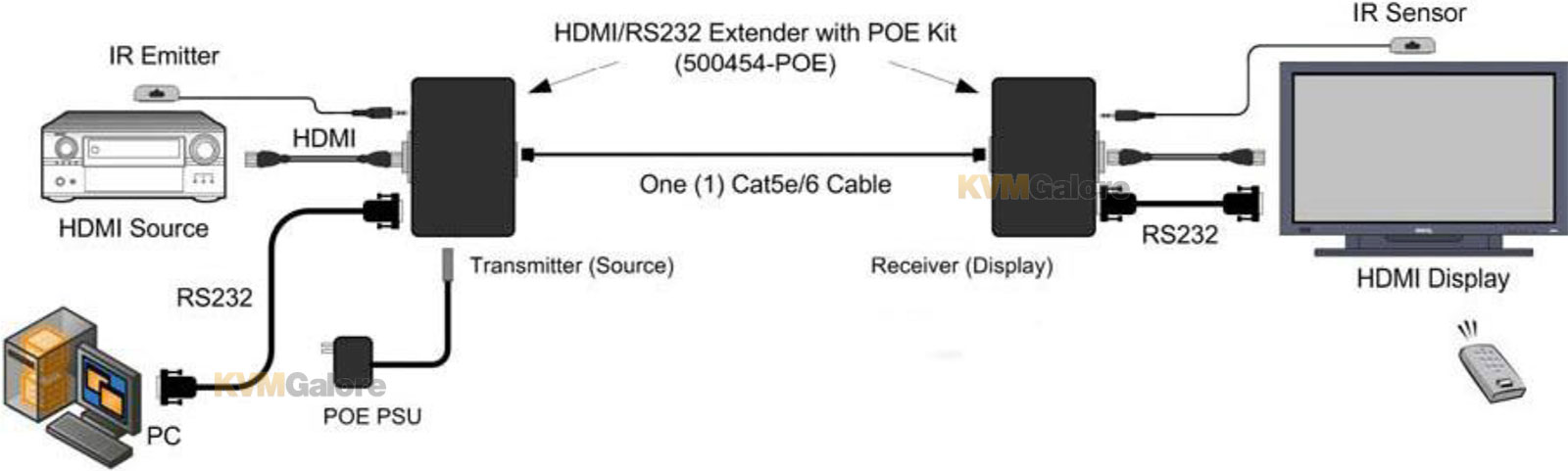

The Ultra-HD 4K HDMI HDBaseT extender with PoE allows HDMI equipment to be connected up to 131 feet (40 m) @ 4K/30 (4:4:4) or 4K/60 (4:2:0) resolution, or up to 230 feet (70 m) @ 1080p Deep Color via one (1) CAT-5e/6 unshielded twisted pair cable in a point-to-point configuration.

For ease of cabling, the Receiver features PoE (PD), including PoC.

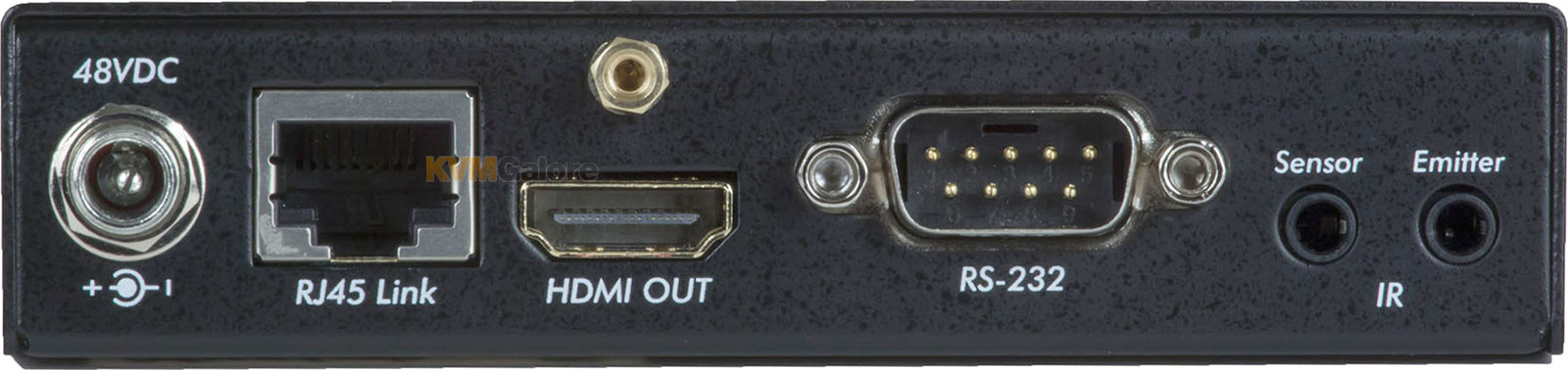

The unit supports RS232 and bidirectional IR for end devices remote control.

The Receiver comes with one IR sensor for remote control applications.

Typical Applications
• Digital signage
• Commercial AV systems
• Classroom projector systems
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Features and Benefits
• Supports 1080p deep color and full 3D to distances of up to 230 feet (70m) over a single CAT-5e/6
• Supports 4K @ 30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131 feet (40m) over a single CAT-5e/6
• Supports RS232
• Supports bi-directional IR pass through
• Supports all digital audio modes
• Supports PoE (PD) and PoC on both the transmitter and receiver
• Includes IR emitter and IR sensor (carrier-wave)
• Compatible with 500454 (non PoE version)
