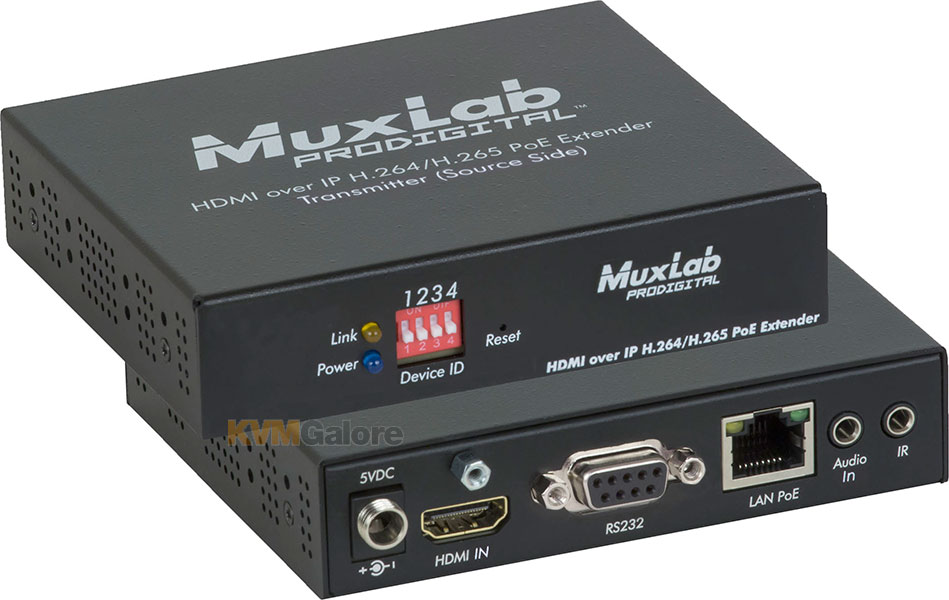

500762-TX: 1080p HDMI over IP H.264/H.265 transmitter
supporting low bandwidth point-to-point, one-to-many and many-to-many configurations, with PoE*, video wall and multi-view capabilities
Note: Receiver units are purchased separately
HDMI over IP H.264/H.265 PoE transmitter allows HDMI source equipment to be extended locally up to 330 feet (100 m) at up to 1080p resolution via CAT-5e/6 cable and is compatible with the Muxlab 500762-RX-V2 receiver to support point-to-point, point-to-multipoint and multipoint-to-multipoint configurations, video wall and multi-view capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems.
The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe.
The use of H.264/H.265 technology uses a lot less bandwidth (yet higher latency), therefore ideal for sending video feeds over the Internet.
The transmitter accepts a 1080p video @ 60Hz and streams the content to an H.264/H.265 receiver, such as the MuxLab 500762-RX-V2, to be displayed on a 4K monitor.
The transmitter may also send H.264/H.265 video streams to other H.264/H.265 compatible receiving devices.
The device supports PoE (PD) and may be powered by a PoE (PSE) Ethernet switch.
MuxLab Pro Digital Network Controller and MuxControl App are available to simplify configuration and management of this and other MuxLab AV over IP networked devices via smartphone and tablet.
Features and Benefits
• Supports up to 1080p video
• Works with the 500762-RX-V2 receiver to support matrix connectivity, video wall and multi-view capabilities
• Extends local audio/video transmission up to 330 feet (100 m) over CAT-5e/6
• H.264/H.265 video codec, excellent for LAN, WiFi and Internet transmission
• High image quality and <200ms latency in low latency mode with H.265
• Supports 100s of Tx and Rx devices depending on network bandwidth
• Supports Multicast, RTSP, RTMP, HLS, FLV and TS
• Supports embedding of 2CH audio
• RS232 and directional IR for remote control of end-devices
• PoE powered, via PoE (PSE) Ethernet switch
• Managed via ProDigital Network Controller, MuxControl smartphone and tablet app, and third party apps
Applications
Applications include video wall, digital signage, commercial and residential AV systems, classroom projector systems, boardroom systems, collaborative PC systems, and medical information systems.
Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.
* This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet switch. If a PoE (PSE) Ethernet switch is unavailable, then the power supply (500993) may be purchased separately.
