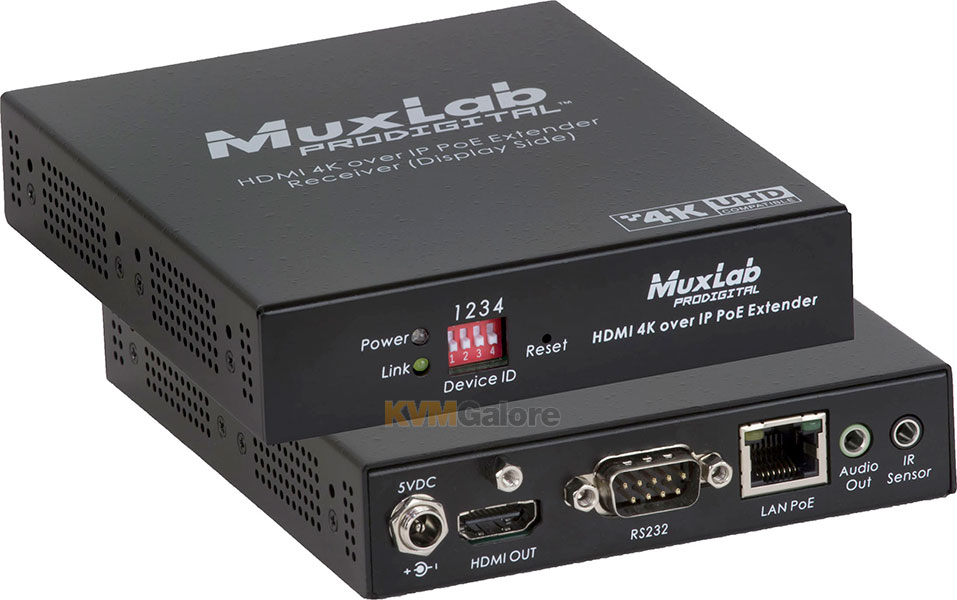

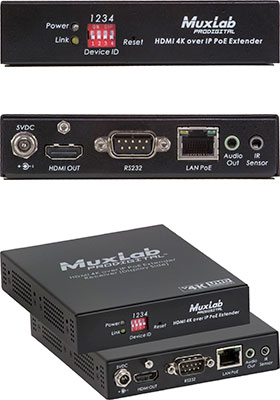

500759-RX: Video-wall 4K HDMI over IP receiver

with PoE

Note: Transmitter units are purchased separately

The video-wall 4K over IP PoE extender allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a video wall of user configurable size (X by Y) supporting 100s of screens, depending on network bandwidth, utilizing one receiver for each display in the array.

Each transmitter (500759-TX) and receiver (500759-RX) can be connected via CAT-5e/6 cable up to 330 feet (100 m) from an Ethernet switch.

The transmitters and receivers support PoE* (PD) and may be powered by a PoE (PSE) Ethernet switch.

The IR emitter and IR sensor, if required, may be purchased separately for IR based remote control applications.

For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP server capability, IGMP communications protocol and support Jumbo Frames. MuxLab recommends using the Cisco SG300 Series Managed switches.

MuxLab Pro Digital Network Controller and MuxControl App are available to simplify configuration and management of this and other MuxLab AV over IP networked devices via smartphone and tablet.

Features and Benefits
• Configure a video wall array with 100's of displays, depending on network bandwidth
• Supports up to 4K @ 30Hz and 1080p @ 60Hz
• Visually lossless video (1 frame latency)
• Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
• Transmission up to 330 feet (100 m) over CAT-5e/6

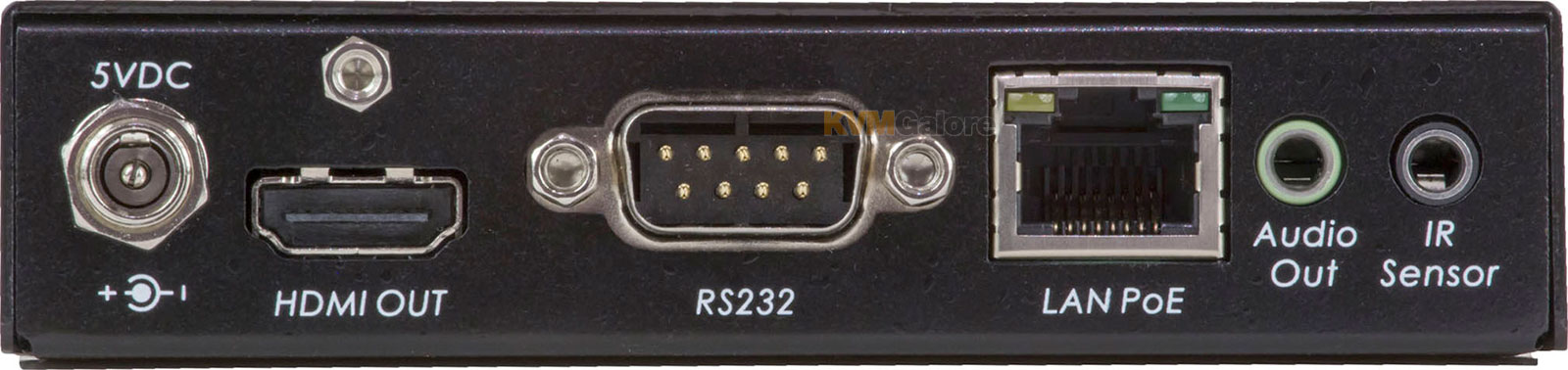

• Supports audio insert (Tx) and audio extract (Rx)
• Supports RS232 and IR transmission for remote control
• PoE powered
• Control via any web device (mobile, tablet) with use of MuxLab Pro Digital Network Controller and MuxControl App

Applications
Applications include video wall, digital signage, commercial and residential AV systems, classroom projector systems, boardroom systems, collaborative PC systems, and medical information systems.

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet switch. If a PoE (PSE) Ethernet switch is unavailable, then the power supply (500993) may be purchased separately.
