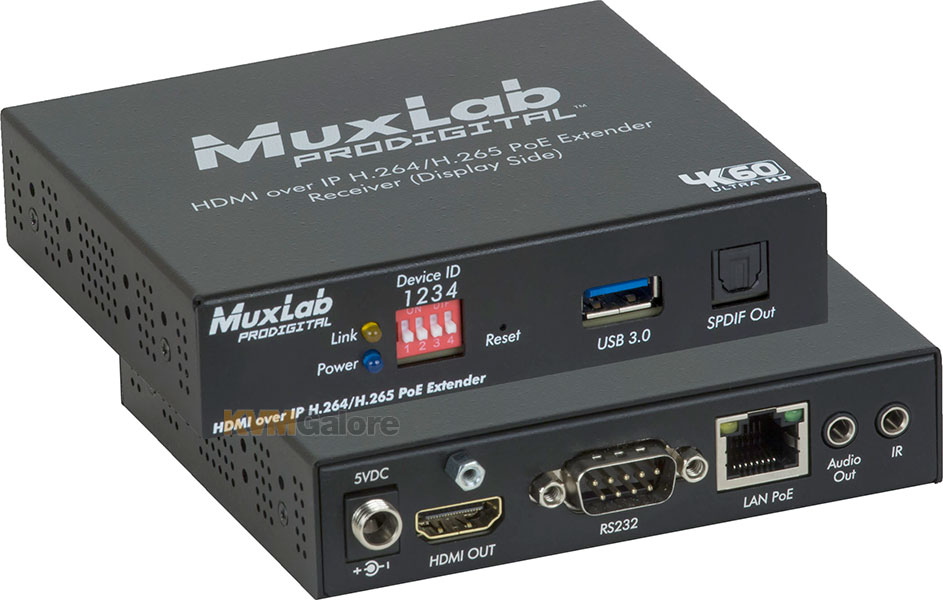

500762-RX-V2: 4K/60 HDMI over IP H.264/H.265 receiver

supporting low bandwidth point-to-point, one-to-many and many-to-many configurations, with PoE, video wall and multi-view capabilities

Note: Transmitter units are purchased separately

4K/60 HDMI over IP H.264/H.265 PoE receiver, in combination with a 500762-TX, 500763-TX or 500764-TX transmitters allows HDMI source and display equipment to be extended locally up to 330 feet (100 m) at up to 4K/60Hz resolution via CAT-5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, and supports video wall and multi-view capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems.

The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, and over the Internet for distributed installations spread-out throughout the globe.

The use of H.264/H.265 technology uses a lot less bandwidth (yet higher latency), therefore ideal for sending video feeds over the Internet, whereas the 500759 are more for closed networks.

The receiver can accepts a 1080p/60Hz video streams and up-scale the signal up to 4K/60Hz to be displayed on a 4K monitor.

The receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz.

These devices support PoE* (PD) and may be powered by a PoE (PSE) Ethernet switch.

MuxLab Pro Digital Network Controller and MuxControl App are available to simplify configuration and management of this and other MuxLab AV over IP networked devices via smartphone and tablet.

Features and Benefits
• Supports up to 4K @ 60Hz (4:4:4) video streams
• Supports up-scales 1080p @ 60Hz video streams from transmitters and other devices up to 4K @ 60Hz
• Works with 500762-TX, 500763-TX or 500764-TX transmitters to support matrix connectivity, video wall and multi-view capabilities
• Extends local audio/video transmission up to 330 feet (100 m) over CAT-5e/6
• H.264/H.265 video codec, excellent for LAN, WiFi and Internet transmission
• Supports SPDIF (TosLink) audio out
• High image quality and <200ms latency in low latency mode with H.265
• Supports 100s of Tx and Rx devices depending on network bandwidth
• Supports Multicast, RTSP, RTMP, HLS, FLV and TS
• Supports embedding of 2CH audio
• RS232 and directional IR for remote control of end-devices
• PoE powered, via PoE (PSE) Ethernet switch
• Managed via ProDigital Network Controller, MuxControl smartphone and tablet app, and third party apps

Applications
Applications include video wall, digital signage, commercial and residential AV systems, classroom projector systems, boardroom systems, collaborative PC systems, and medical information systems.

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet switch. If a PoE (PSE) Ethernet switch is unavailable, then the power supply (500993) may be purchased separately.
