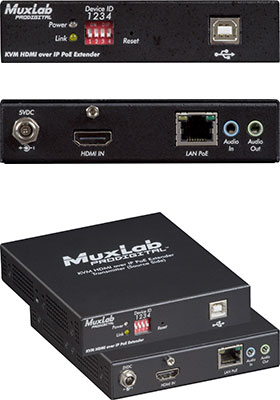

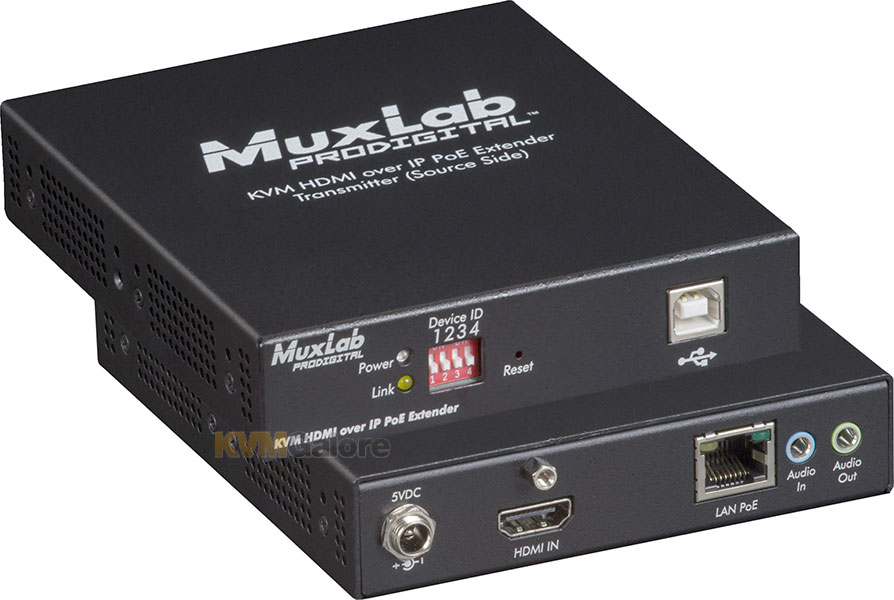

500772-TX: Management of multi-server systems supporting HDMI displays in IT departments
Note: Receiver units are purchased separately
UHD-4K HDMI KVM over IP extender with PoE allows HDMI and USB equipment to be connected up to 330 feet (100 m) over an Ethernet LAN, supporting HDMI up to 4K @ 60Hz (4:2:0) and 4K @ 30Hz (4:4:4) via CAT-5e/6 cable in multiple point-to-point and point-to-multipoint configurations.
The transmitter (500772-TX) and receiver (500772-RX) support PoE (PD) when used with a PoE (PSE) Ethernet switch.

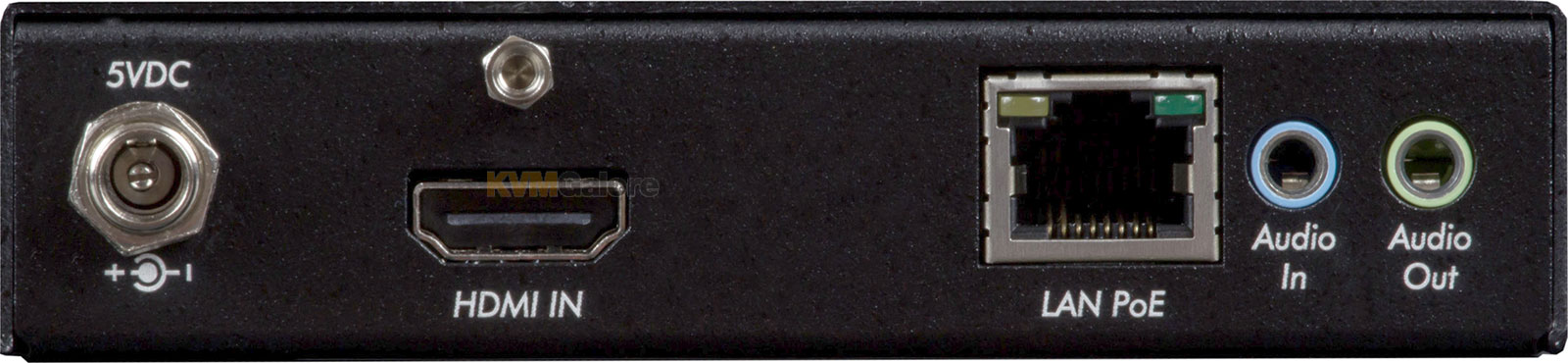

The transmitter terminates to a computer server/workstation via an HDMI and USB port. The receiver terminates to an HDMI display and up to 4x USB devices such as a keyboard, mouse, printer, drawing pad, storage device, etc., via a 4 port USB hub.

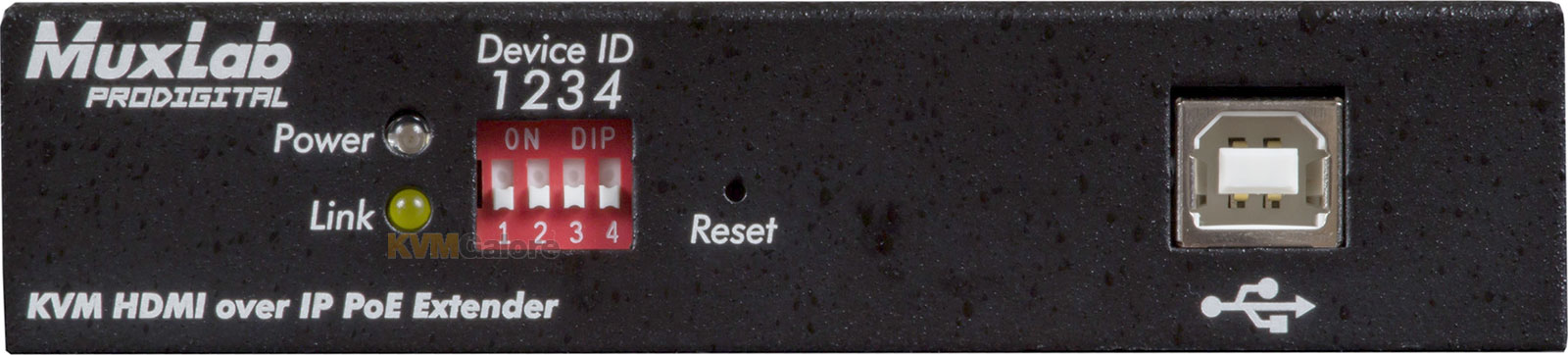

A single receiver can be switched via hotkey sequences to any transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.
Features and Benefits
• One operator can manage multiple servers/workstations
• Supports HDMI up to 4K @ 60Hz (4:2:0) and 4K @ 30Hz (4:4:4)
• Receiver side includes a 4-port USB hub, for KVM applications and USB peripherals
• Up to 330 feet (100 m) over CAT-5e/6
• Supports 100s of transmitters and receivers depending on network bandwidth
• Supports multiple point-to-point, and point-to-multipoint applications
• Supports HDR
• Supports PoE powered
• Supports audio insert and audio output (Tx), and audio extract and mic-in (Rx)
