ST-C6FOUSBDP4K-LC: 4K Ultra-HD @ 30Hz 4:4:4 DisplayPort USB KVM extender

extends DisplayPort video, audio, USB keyboard/mouse, and RS232

• Extend 4K @ 30Hz up to 328 feet via CATx or 6.21 miles via fiber
• 4 transparent USB connectors for keyboard, mouse, flash drive, HDD, touchscreen display, etc.
• RS232 extension

XTENDEX^® 4K 10.2Gbps DisplayPort USB KVM extender via CAT-6/7 or fiber provides remote KVM (USB keyboard, USB mouse and 4K 30Hz Ultra-HD DisplayPort monitor) access to a USB computer up to 328 feet (100 m) away via CAT-6/6a/7 cable, 6.21 miles (10 km) via simplex LC singlemode fiber optic cable, or 1640 feet (500 m) via simplex LC multimode fiber optic cable.

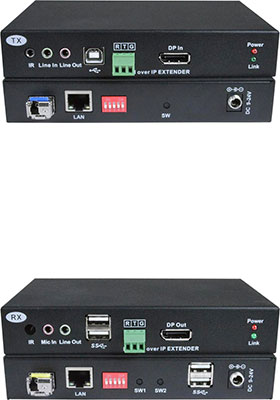

Each KVM extender consists of a local unit that connects to a computer, and a remote unit that connects to a DisplayPort monitor, bi-directional 3.5mm stereo audio speakers and microphone, RS232, and up to four USB devices (keyboard, mouse, flash drive, HDD, touchscreen display, etc).

Supported DisplayPort Features
• DisplayPort 1.2
• 36-bit Color
• RGB, YCbCr 4:4:4, TCbCr 4:2:2
• Dolby, DTS, Stereo, and LPCM Audio
• Bandwidth up to 340 MHz (10.2 Gbps)

Extension
• Using CAT-6/6a/7 cable: 4K signal up to 328 feet (100 m); 1080p or 1920x1200 signal up to 492 feet (150 m)
• Using singlemode 9-micron cable: 6.21 miles (10 km)
• Using multimode 50-micron cable: 1,640 feet (500 m)

Features and Benefits
• Supports Ultra-HD 4K resolution 3840x2160 @ 30Hz YUV 4:4:4; HDTV resolutions 1080p @ 60Hz, and 1920x1200 (WUXGA)
• Signal transmission via one CAT-6/6a/7 cable or one single-strand singlemode/multimode LC fiber optic cable
• HDCP compliant
• Four transparent USB ports for self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.)
• Keyboard and mouse are hot-pluggable
• Supports Plug-and-Play specification
• Using an unmanaged Gigabit network switch, extend up to 32 pairs in point-to-point connections over IP
• Use the DIP switch on the transmitter and receiver to specify the ID for the unit: transmitter and receiver units with the same ID will connect to each other (only Point-to-Point connections are supported)
• Supports full-duplex RS232 up to 115200 baud
• EDID pass-through for the support of any DisplayPort monitor
• Mounting brackets included for easy surface/wall mounting

In th Box
1x Local unit
1x Remote unit
2x FO4436 optical transceivers
1x 72.83 in. (1,850.00 mm) USB Type-A to Type-B cable
1x Mounting rack metal parts
2x Power supplies (12V/2A)
2x 3-Terminal block for RS232
Video cables are not included

Required video cables (between the source/transmitter and the display/receiver)
DisplayPort, male-male
