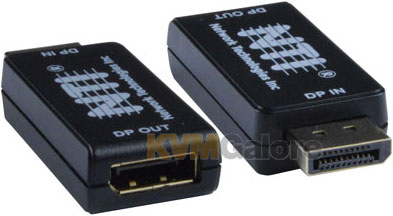

DP-HP-MNTR-SRC: Emulates a DisplayPort display (sink device)

• Maintains hotplug signal between source and display
• Resolves screen resetting issues when using a DisplayPort switch
• Headless operation
• Video pass-through
• DisplayPort v1.4
• Recomended for use with a DisplayPort KVM switch or a DisplayPort video switch - 1x hotplug maintainer for each device connected to the switch

The DisplayPort Hotplug Maintainer emulates a DisplayPort display (sink device) by maintaining a hotplug signal between a video source and sink/display. When used with a KVM/video switch, the DP-HP-MNTR-SRC eliminates the need to reconfigure monitor settings when switching between computers.

The DP-HP-MNTR-SRC unit is designed to work with KVM and video switches. Each computer / source connected* to the KVM or video switch would need to have a DP-HP-MNTR-SRC unit connected to it.  Dual-head DisplayPort sources would require two DP-HP-MNTR-SRC units (one at each DisplayPort port of the source).

Features and Benefits
• Emulates a DisplayPort display (sink device) by providing Hot Plug Detect (HPD) signal to the DisplayPort source device
• Designed for use with KVM/video switches
• When the input channel is deselected, the host computer connected to that input channel via the DisplayPort Hotplug Maintainer will recognize the monitor as connected
• Eliminates the need to reconfigure monitor settings – keeps screen settings while switching to another computer and then back
• Supports all source and display resolutions, including Ultra-HD 8K (7680x4320) @ 30Hz, 4Kx2K (4096x2160 and 3840x2160) @ 60Hz, 2560x1600 (WQXGA), 2560x1440p (WQHD), and HDTV 1080p @ 120Hz
• The Hotplug Maintainer is completely transparent
• Supports headless and video pass-through operations
• Compact design for easy installation and operation
• No power supply – powered by video source
• Patent pending

DisplayPort Features
• DisplayPort v1.4
• Multi-Stream Transport (MST)
• 10-bit Deep Color
• RGB, YCC 4:4:4, YCC 4:2:2
• LPCM
• HDR
• High-bandwidth HBR3
• Bandwidth up to 8.1Gbps per channel (32.4Gbps total)

* The DP-HP-MNTR-SRC must be connected directly to the video source (with no other equipment connected between the EMLTR and the video source)
