![ENVIROMUX High-Accuracy Platinum RTD Transmitter ENVIROMUX High-Accuracy Platinum RTD Transmitter](images/ENVIROMUX-RTDT-1562_P.jpg)

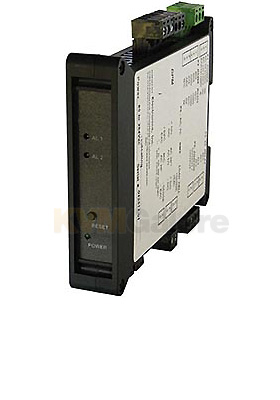

E-RTDT-1562: ENVIROMUX high-accuracy platinum resistance temperature detector (RTD) transmitter
-328°F to 1562°F
• Use to connect 100Ω platinum RTD temperature sensors to ENVIROMUX 2D/5D/16D
• When used with the ENVIROMUX 2D/5D/16D, the supported range is -89 to 738°F (-67 to 392°C). Call an NTI product consultant to have the range expanded on the ENVIROMUX system
• If the connected RTD sensor does not support this high of accuracy, the system will revert to the accuracy of the sensor
• Configuration: 2, 3, or 4-wire connection
• Signal output: RS485
• Interfaces with the ENVIROMUX 2D/5D/16D via the RJ45 sensor port
• Includes 7 foot pre-wired RJ45 cable with attached coupler to extend the transmitter up to 1000 feet (328 m) using CATx cable
• Din rail mount housing
• Includes pre-stripped country-specific line cord with tinned strands
