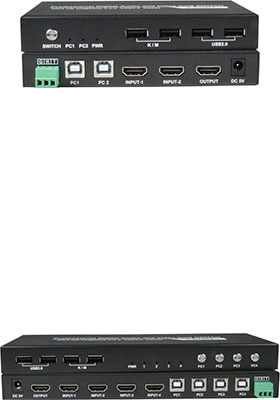

UNIMUX 4K HDMI-USB KVM Switches

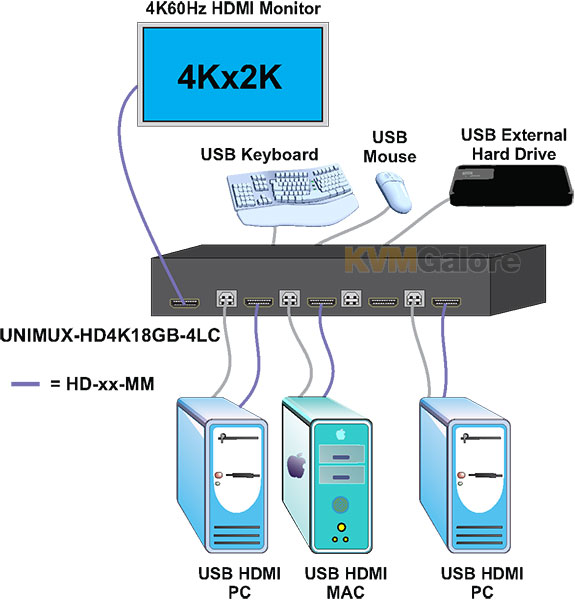

Control 2 or 4 Ultra-HD 4K HDMI-USB computers from one keyboard/mouse and one 4K HDMI monitor

with USB 2.0 peripheral sharing

• Ultra-HD 4K 60Hz 4:4:4 video resolution
• 18 Gbps
• HDMI 2.0
• USB 2.0
• No power supply required

UNIMUX™ 4K 18Gbps HDMI USB KVM switch allows a user to control two HDMI 2.0 Ultra-HD 4K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse, and 4K HDMI monitor.

Supported HDMI Features
• HDMI 2.0
• 8-bit, 10-bit, and 12-bit Deep Color
• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1, and DTS:X
• YUV 4:4:4, 4:2:2, 4:2:0, and RGB
• Bandwidth up to 600 MHz (18Gbps)
• 3D (1080p @ 60Hz)
• HDR

Front Panel Control
• Press the buttons on the front panel interface to switch between ports
• LEDs indicate currently selected port

Keyboard Control
• Scan or Auto Switching Modes are available from the keyboard
• Use the keyboard to command the switch box to select ports or configure the SCAN delay

RS232 Control
• Configuration and control can be done via RS232
• 3-pin screw terminal
• Baud rate: 115200 bps
