FIBER-1X4-SSSC: DVI splitter/extender via Multimode fiber-optic cable
drive up to 4 remote displays from one DVI video source up to 3280 feet away
One Transmitter and up to 4 Receivers must be purchased separately - see listing below
VOPEX® DVI splitter/extender simultaneously distributes high resolution DVI video to up to four displays up to 3280 feet (1000 meters) from a DVI computer using single-strand SC multimode fiber optic cable.

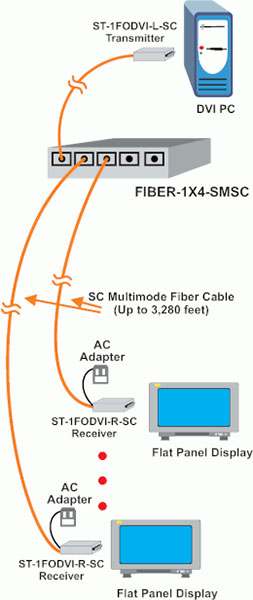

The VOPEX system consists of three components:

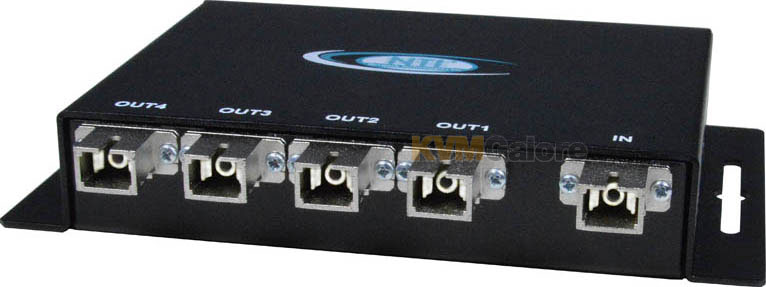

• Splitter, which connects to the transmitter and receivers;

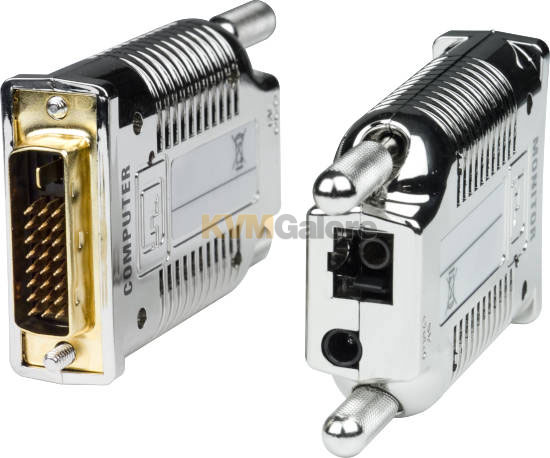

• Transmitter, which connects to the DVI video source;
• Receivers, one for each remote DVI display.
The units are interconnected by a simplex 50-micron multimode SC fiber optic cable.
Features and Benefits
• Broadcast real-time DVI video to multiple display locations
• Supports HDTV resolution up to 1920x1200
• Signal transmission via single-strand 50-micron multimode SC fiber optic cable - no RF interference
• Compact design of transmitter and receivers allows for direct connection to source/displays
• Plug and play functionality - no software needed
• Cables can be installed in conduit prior to transmitter/receiver installation
• EDID learning for the support of any DVI display device
• Complies with DVI 1.0 standard
• No power supply required for the optical splitter or transmitter
• Integrated mounting brackets on the optical splitter, transmitter, and receivers for easy surface/wall mounting
• Ideal solution for digital signage applications
