![VOPEX HDMI Splitter/Extender VOPEX HDMI Splitter/Extender](images/FIBER-1X4-SSSC_P.jpg)

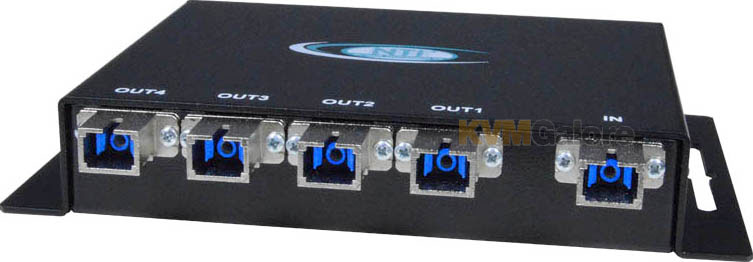

FIBER-1X4-SSSC: HDMI splitter/extender via Singlemode fiber-optic cable
drive up to 4 remote displays from one HDMI video source up to 12.4 miles away
One Transmitter and up to 4 Receivers must be purchased separately - see listing below
VOPEX® HDMI splitter/extender simultaneously distributes high resolution HDMI video to up to four displays up to 12.4 miles (20 km) from an HDMI video source using a single-strand SC singlemode fiber optic cable.

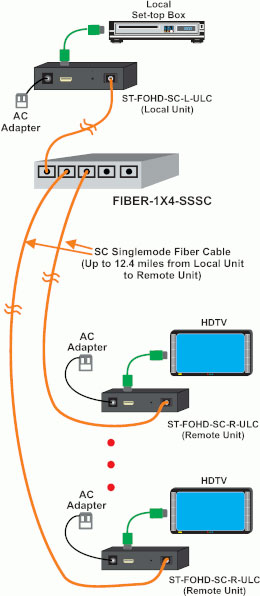

The VOPEX system consists of three components:
• Splitter, which connects to the transmitter and receivers;
• Transmitter, which connects to the HDMI video source;
• Receivers, one for each remote HDMI display.
The units are interconnected by a simplex 9-micron singlemode SC fiber optic cable.
Supported HDMI Features
• Deep Color
• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
• Bandwidth up to 10.2 Gbps
Features and Benefits
• Broadcast real-time HDMI video to multiple display locations
• Supports HDTV resolution up to 1080p
• HDCP compliant
• Signal transmission via single-strand 9-micron singlemode SC fiber optic cable - no RF interference
• Plug and play functionality - no software needed
• Cables can be installed in conduit prior to transmitter/receiver installation
• Built-in default EDID table
• No power supply required for the optical splitter
• Integrated mounting brackets on the optical splitter, transmitter, and receivers for easy surface/wall mounting
• Ideal solution for digital signage applications
