ST-C6USB4K18GB-230T: Extend a 4K 60Hz 4:4:4 HDMI display and USB

over one CAT-6/7 cable up to 230 feet (70 m) away, supporting USB touch-screen monitors

• 4K video resolution Ultra-HD 60Hz 4:4:4
• 18Gbps bandwidth
• HDMI 2.0
• Zero latency
• Supports USB touch-screen monitor

XTENDEX^® 4K 18Gbps HDMI USB KVM extender via One CAT-6/6a/7 cable provides remote KVM (USB keyboard, USB mouse, and 4K 60Hz Ultra-HD HDMI monitor) access to a USB computer up to 230 feet (70 m) away via CAT-6/6a/7 cable.

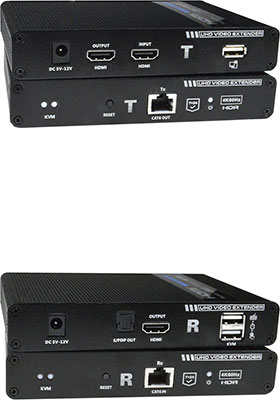

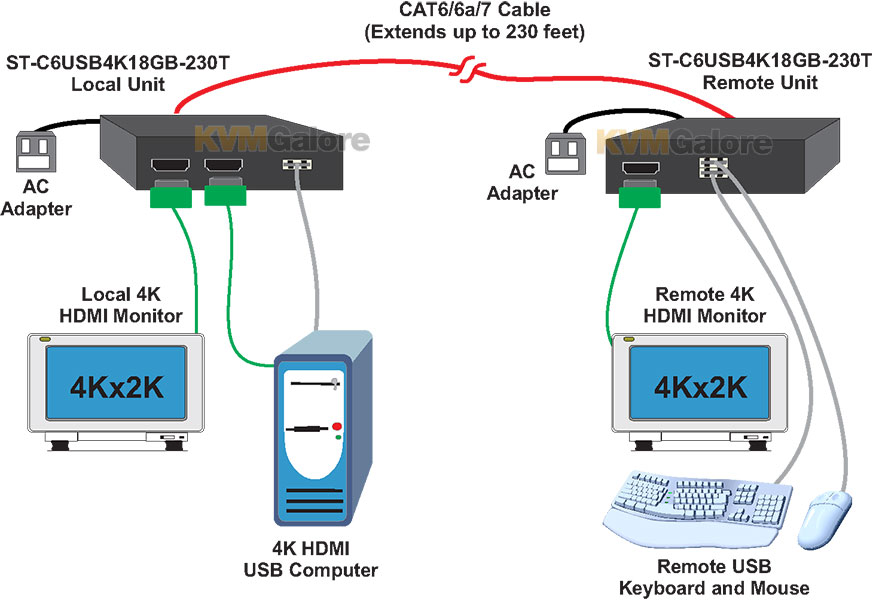

Each KVM extender consists of a local unit that connects to a computer and a local display via the HDMI loop output, and a remote unit that connects to an HDMI USB touchscreen monitor or a standard HDMI monitor, USB keyboard, and USB mouse. The local and remote units are interconnected via CAT-6/6a/7 cable.

HDMI Features Supported
• HDMI 2.0 compliant
• Up to 36-bit Deep Color
• LPCM, Dolby Digital, and DTS
• RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
• Bandwidth up to 18 Gbps
• 3D
• HDR10

Features and Benefits
• Supports Ultra-HD 4K resolution up to 3840x2160 @ 60Hz and 4096x2160 @ 24/25Hz YUV 4:4:4, HDTV resolution up to 1080p @ 60Hz, and up to 1920x1200 (WUXGA)
• Signal transmission via one CAT-6/6a/7 cable up to 230 feet (70 m)
• HDCP 2.2 and 1.4 compliant
• Supports local and remote HDMI displays
• Built-in default EDID table
• Supports HDMI-embedded digital audio and SPDIF digital audio output
• Two USB ports for keyboard, mouse, or touch screen monitor
• Compliant with USB 1.1 (low/full speed) standards
• Keyboard and mouse are hot-pluggable
• Supports Plug-and-Play specification
• Built-in surge and ESD protection
• Mounting brackets included for easy surface/wall mounting

Package Includes

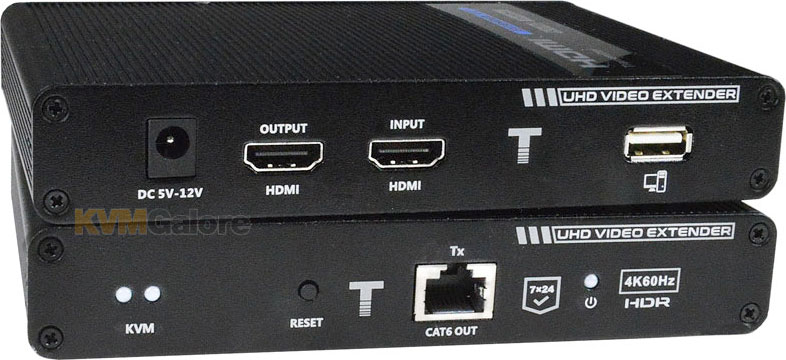

1x Transmitter (local unit)

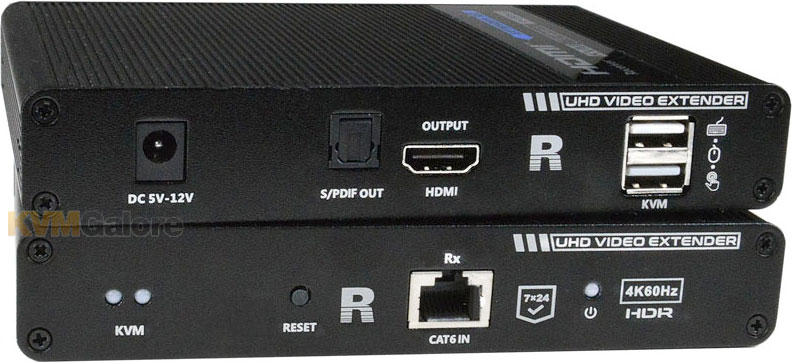

1x Receiver (remote unit)
1x 4 foot (1.2 m) male-to-male USB Type-A cable
2x power supplies
2x Sets of mounting hardware (4 brackets and 10 screws)
Video cables are not included
