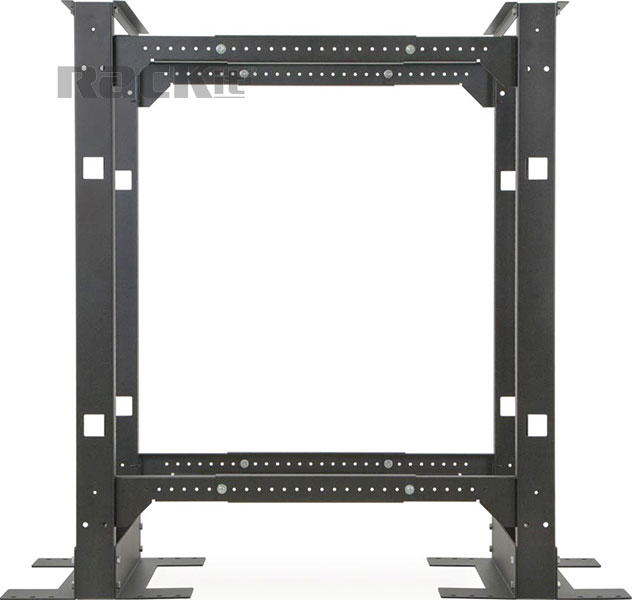

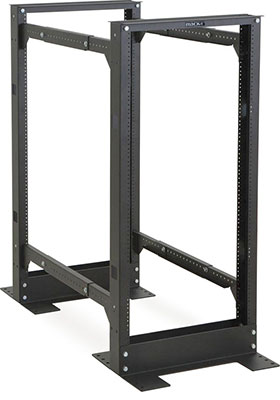

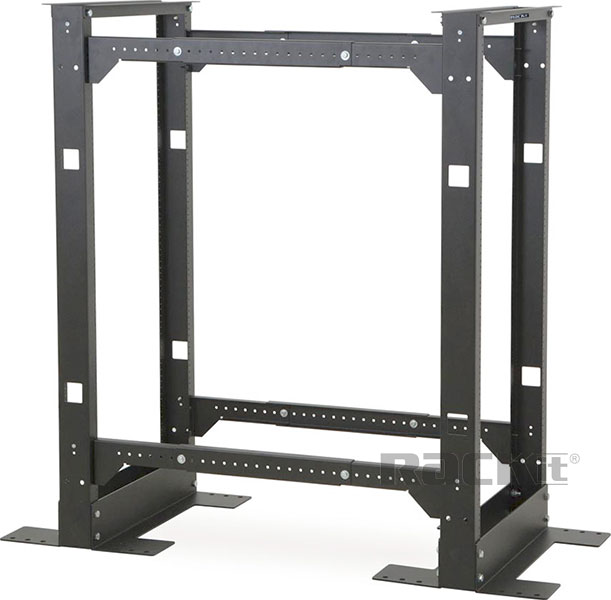

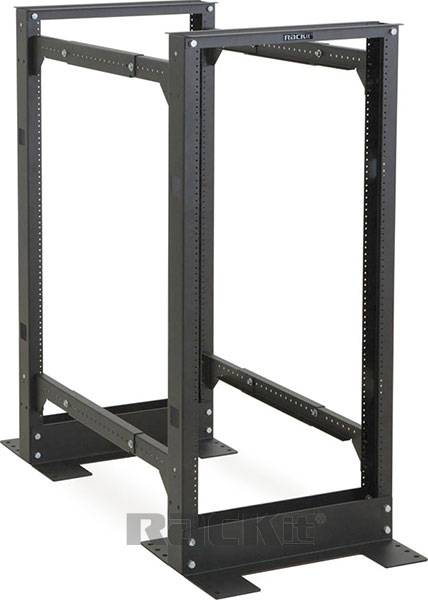

RCT-SRVPX24: Heavy-duty (1600 lb) 24U 4-post open rack with adjustable depth
and with built-in grounding studs
Servit™ PX features a heavy-duty construction with #10-32 pre-tapped mounting rails, supporting 4-post (front and rear) mounting of modern rack-mount servers at virtually any depth.
Servit PX utilizes side rails, an extension bar and cross member piece that get attached together with supplied hardware. These on-site assembled sections determine the depth of the rack and can be set by the user (during the assembly process) to any depth from 26" to 38" (in one-inch increments) to match the depth of your equipment.

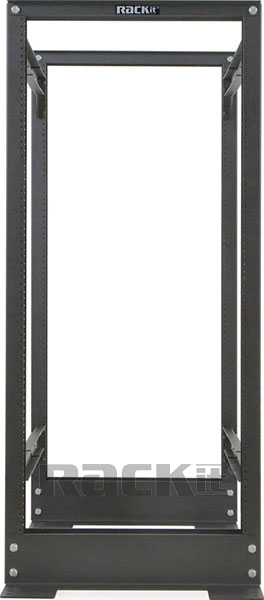

When multiple Servit PX racks are needed in a data-center installation, simply gang them together. Ganging holes on both sides of the frame make it easy to gang and secure multiple racks together. You can even gang (network) both the 24U and 45U size racks together because the holes align. And for installations that require connections be made above the rack (such as trunk cabling or ladder racks), simply go through the completely open frame at the top. Servit PX' completely open top design allows the racks to accept cable bundles. It also makes the racks compatible with most ladder racks and coordinating accessories.
Constructed of heavy duty, powder-coated, 12-gauge cold-rolled steel, Servit PX has a weight capacity of 1600 pounds! Vertical uprights feature a mounting pattern on both front and back of the upright. The uprights also feature cable pass through holes to allow cabling to pass from one rack to the next.
Servit PX also features eight grounding studs on the inside of the four rails that allow you to directly ground your equipment. Also included are serrated tooth washers that, when tightened, dig in and remove paint from the rack, establishing electrical continuity throughout the rack.
Servit PX is designed for either stand-alone setup or multiple-racks ganged-together (networked) in a data-center installation. Servit PX can also be networked with Comit relay racks and supports integrated PDUs.
Servit PX ships knocked-down with UPS/FedEx and gets easily assembled on-site requiring only one person.
Electrical Grounding
Servit PX feature eight ¼-20 x 0.5" grounding studs on the inside of the four rails (two on each rail, one at the top and one at the bottom) used for electrical grounding. These studs allow you to ground your equipment directly to the stud or with the use of bus bars (purchased separately).
The racks also include serrated tooth washers to allow the frame to be grounded during the assembly process. The washers, when tightened, dig in and remove paint from the steel surface, establishing electrical continuity throughout the rack.
Features and Benefits
• Variable depth setup, determined by user on-site, between 26-38 inches in 1-inch increments
• 4-post, 24U front and rear mounting support
• Stand-alone or networked (ganged together) deployment
• Supports floor bolting
• Open top design allows for smaller trunk cabling into the uprights
• 10-32 tapped rails
• 12 gauge cold rolled steel construction
• 1600 lb weight capacity
• Uprights feature cable pass-through holes to allow cabling to pass from one rack to the next
• Compatible with most ladder racks
• Ships knocked-down with UPS/FedEx in one box
• Easily and quickly assembled on-site
• Black powder coat finish
In the Box
4x 24U Rails
4x L Bases
4x Upper Support Brackets
2x Adjustable Front Arms
2x Adjustable Back Arms
2x Adjustable Middle Arms
8x 1/4 -20 Grounding Studs
1x Assembly Hardware Pack
Equipment mounting screws are not included - see listing below for compatible mounting screws
