DKX3-EUST: High performance access to Dominion^® KX III IP KVM switches

low-maintenance appliance provides IP access to remote servers connected to Dominion KX III; perfect for labs, studios and areas where a PC/laptop is not wanted

Dominion^® KX III Enhanced User Station is a stand-alone appliance for high performance IP access to servers connected to Dominion^® KX III switches.

DKX3-EUST is a low-maintenance appliance that provides high-performance IP access to remote servers connected to Dominion KX III, and it can replace outdated analog matrix switches, replace/supplement expensive, inflexible broadcast systems or be deployed anywhere hassle-free IP access is needed. It's perfect for broadcast, labs, studios, control rooms, offices, data centers, and areas where a PC/laptop is not wanted.

Dominion KX III Enhanced User Station can sit on a desk, be mounted in a standard 19" rack, or VESA-mounted on the back of a monitor. Deploy it using standard CAT-5 cabling and Ethernet/IP technology.

Dominion KX III Enhanced User Station Supports simultaneously access, viewing, and controlling multiple servers, spread across up to three monitors.

Dominion KX III Enhanced User Station is recommended for use with the Dominion^® KX III switches, up to three monitors, and servers up to 1080p video resolution.

High Performance User Appliance
• Powerful Intel-based platform
• Up to three (3) 1080p streaming video sessions at 60 FPS
• Ultra-fast connections and sub-second switching

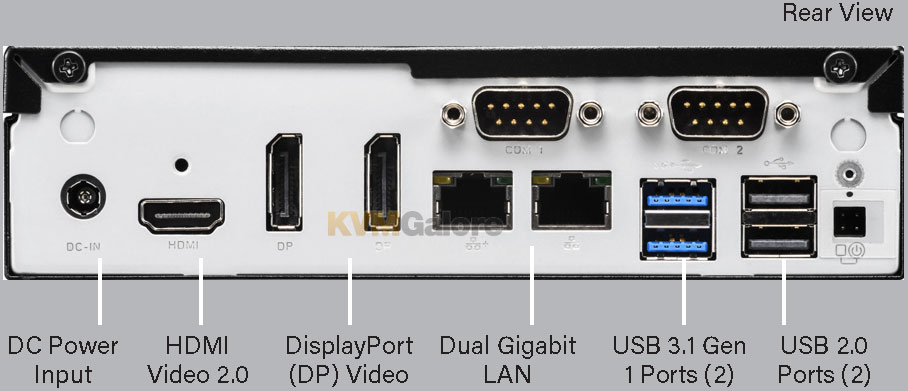

• Supports VGA, DVI, HDMI, USB-C and DisplayPort video
• Virtual media, USB audio, Smartcard
• Support for multiple video output systems
• Self-contained, low maintenance appliance

Productive and Powerful User Interface
• Multiple simultaneous IP connections across maximum of 3 monitors
• Mouse sharing feature supports multiple monitors
• Scan servers and optionally save screenshots
• Favorites and hot-key switching
• Productive window management
• Save and restore window layouts, even across multiple User Stations
• Chinese, French, German and Japanese language support

Flexible and Easy to Deploy
• Flexible dual LAN or WAN access
• Use corporate and/or separate LAN
• Connects with CAT-5 cabling
• Access hundreds of servers and devices
• PC/Laptop access also available
• Desktop, rack and VESA mountable
• Support for RDP, VNC, VMware virtual machines, web links, SSH and DSAM connections
• CommandCenter for centralized login and access
• Web-based and API-based remote control

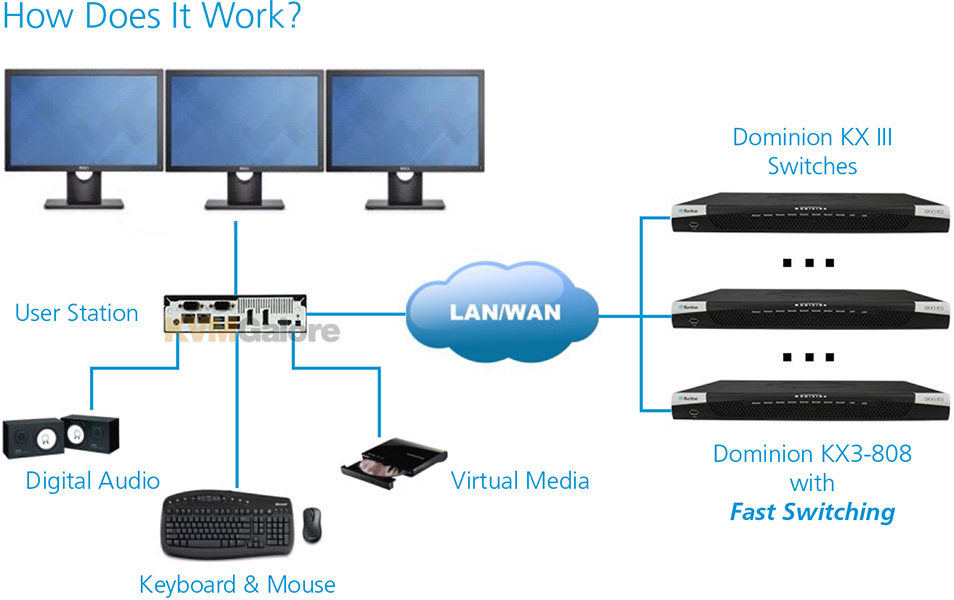

Easy to Deploy
1. Attach up to three (3) monitors
2. Attach keyboard and mouse
3. Optionally attach speakers and virtual media
4. Connect to corporate or separate LAN
5. Configure to add users and KX III's
6. Access and control servers connected to the KX III switches

Package Contents
• Dominion Enhanced User Station
• Power adapter
• VESA mount kit
• Quick Setup Guide
• Warranty card
