DKX4-EUST: Ultra-high performance access to Dominion^® KX KVM over IP systems at 4K

low-maintenance 4K appliance (perfect for areas where a PC/laptop is not wanted) provides quad-view IP access to remote servers connected to Dominion KX

Dominion^® KX IV enhanced user station is a standalone appliance for high performance IP access to servers connected to Dominion^® KX III switches and Dominion KX IV gateways, accessed by DSAM, RDP, VNC, VMware virtual machines, web links and SSH connections, together with optional CommandCenter integration.

A robust AMD Ryzen V2516 processor powers this innovative high-performance user station to support unlimited KVM sessions at higher video resolutions.

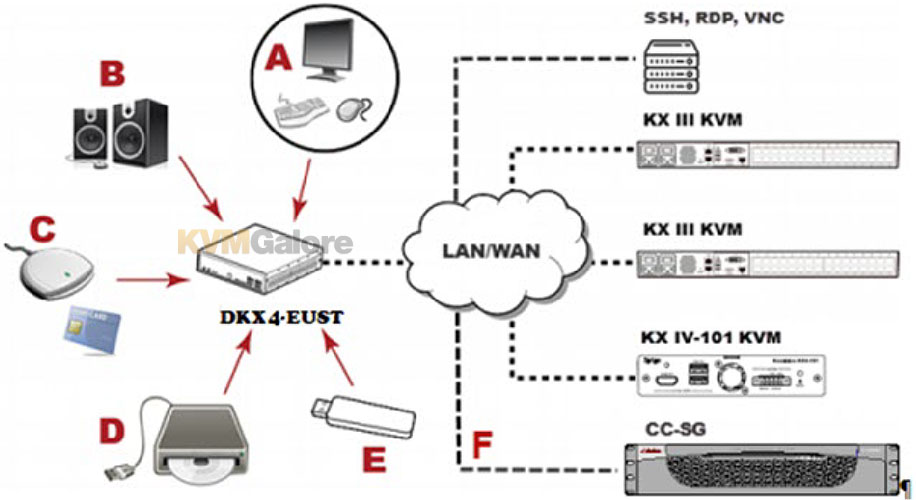

Dominion^® KX IV enhanced user station is designed to access servers and computer devices connected to Dominion KX III and Dominion KX IV-101 and Dominion SXII serial switches from customer LAN/WAN networks. Access to servers and devices on the network via RDP, SSH, and VNC is also supported.

User can store the IP addresses of multiple KVM and serial switches on the enhanced user station so that you can remotely access any IT device connected to these KVM and serial switches with only one click.

Dominion^® KX IV enhanced user station can replace outdated analog matrix switches, supplement inflexible broadcast systems, or be deployed anywhere hassle-free IP access is needed.

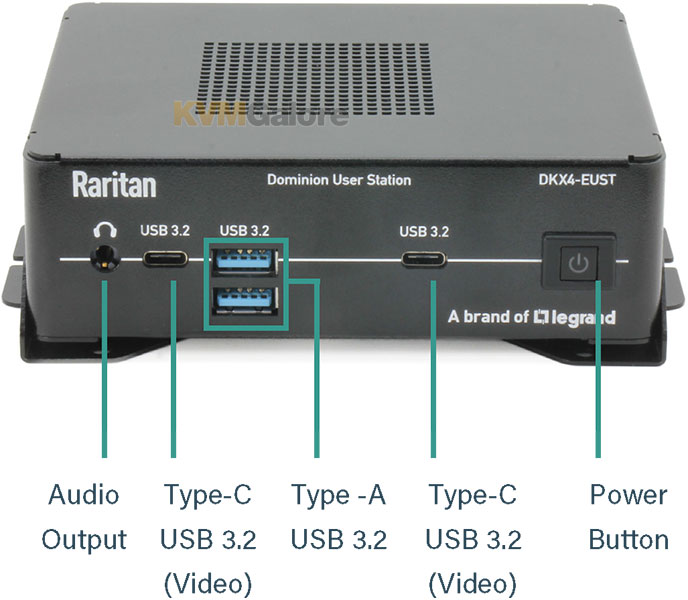

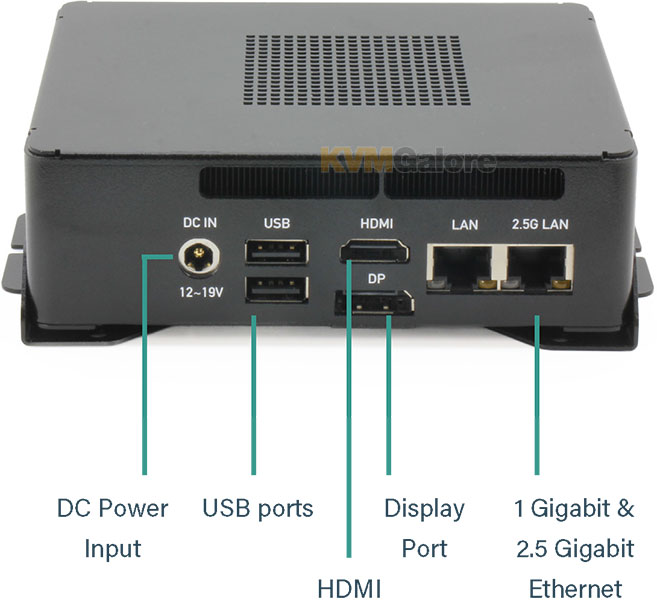

• Connect up to 4 monitors to one device (1x HDMI; 1x DisplayPort; 2x USB-C)
• Higher video resolution allows for 4K video sessions at 60 frames per second
• Supports unlimited KVM sessions

This enhanced user station provides a versatile solution for broadcast labs, studios, control rooms, offices, and data centers.

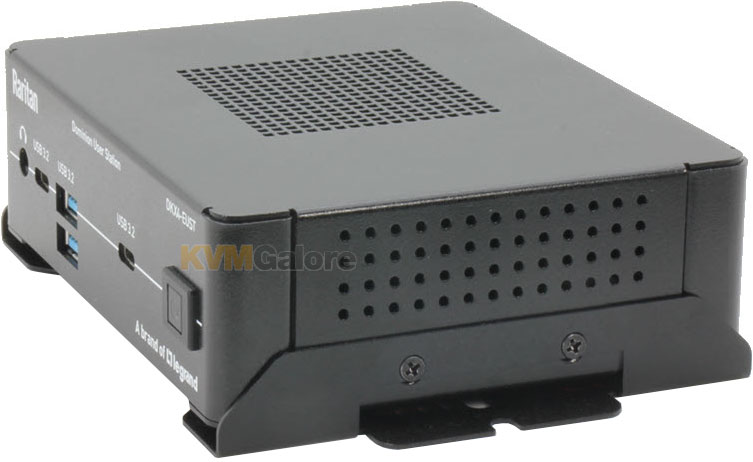

The slim form factor allows it to easily sit on a desk, be mounted in a standard 19" rack, or VESA-mounted on the back of a monitor. Deploy using standard CAT-5 cabling and Ethernet/IP technology.

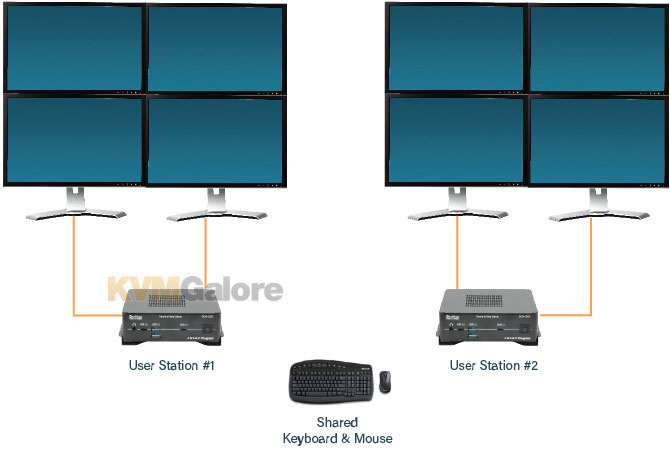

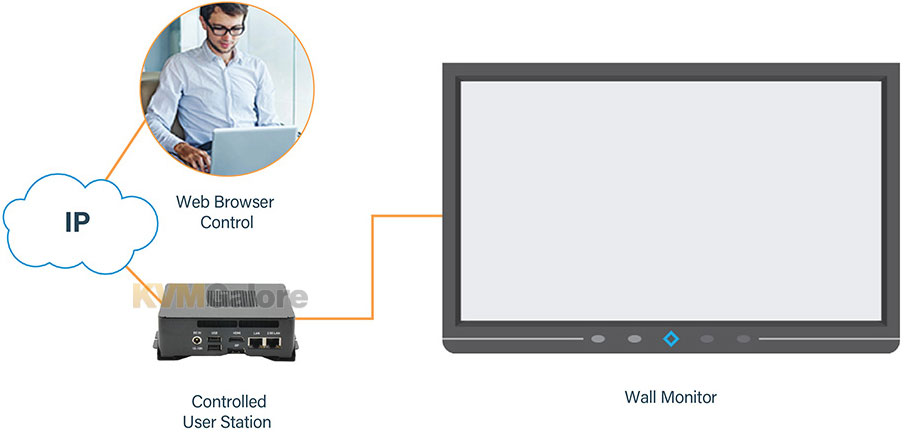

Simultaneously access, view, and control multiple servers, spread across up to 4 monitors. Or use the innovative keyboard and mouse sharing feature to work across 4, 8, 12 or more monitors! Use Web-based and API-based remote control to expand the capability of user-stations to display-walls and control rooms.

Dominion KX IV enhanced user station is recommended for use with the Dominion KX IV-101 high-performance KVM for resolutions up to 4K. DKX4-EUST also supports unlimited numbers of KVM sessions and up to 4 monitors.

Dominion KX IV enhanced user station can replace outdated analog matrix switches, supplement inflexible broadcast systems or be deployed anywhere hassle-free IP access is needed. It is perfect for broadcast, labs, studios, control rooms, offices, data centers, and areas where a PC/laptop is not wanted.

High Performance KX III and KX IV User Appliances
• Stream multiple video sessions up to 60 frames per second
• Ultra-fast connections and sub-second switching
• Video supported: DVI, HDMI, USB-C and DisplayPort video
• Virtual media, USB audio, Smartcard
• Support for multiple video output systems
• 4K video
• 4 monitors
• More KVM sessions

Productive and Powerful User Interface
• Multiple simultaneous IP connections across one, two, three, or four monitors
• Mouse sharing feature supports 4, 8, 12 or more monitors!
• Scan servers and optionally save screenshots
• Favorites and hot-key switching
• Productive window management
• Save and restore window layouts, even across multiple User Stations
• Chinese, German and Japanese language support

Flexible IP Solution - Easy to Deploy
• Flexible dual LAN or WAN access
• Use corporate and/or separate LAN
• Connects with CAT-5 cabling
• Access hundreds of servers and devices
• PC/Laptop access also available
• Desktop, rack and VESA mountable
• Support for RDP, VNC, VMware virtual machines (ESXi), web links, SSH and DSAM connections
• CommandCenter for centralized login and access
• Web-based and API-based remote control

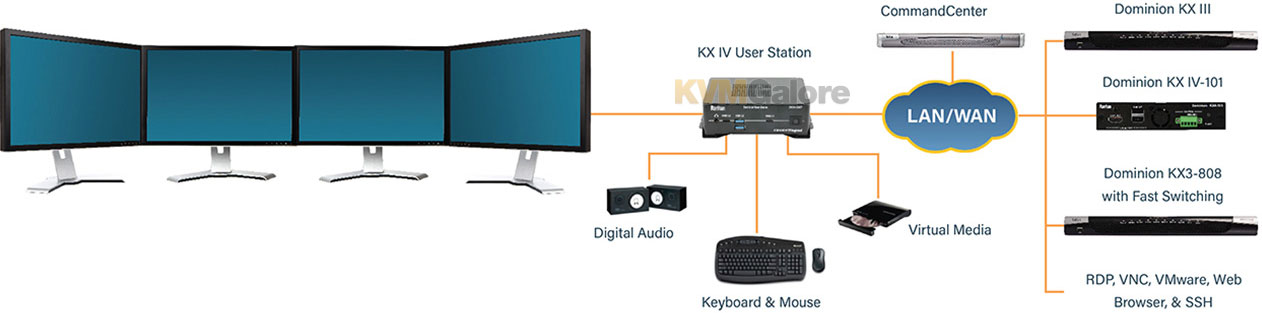

Easy to Deploy
1. Attach single, dual, triple or quad monitors
2. Attach keyboard and mouse
3. Optionally attach speakers and virtual media
4. Connect to corporate or separate LAN
5. Configure to add users and KX devices
6. Access and control servers connected to the KX devices

Package Contents
• Dominion KX IV enhanced user station
• Power adapter
• VESA mount kit
• Quick setup guide
