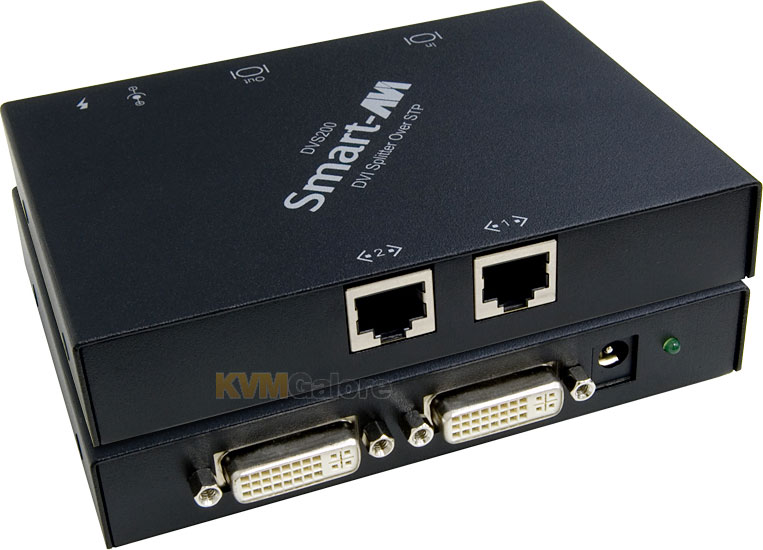

2-port DVI-D CAT-6 STP splitter/extender
extends DVI-D signals to 2 remote locations up to 220 feet away, with CAT-6 STP cables
Note: A DVX-RX200 remote receiver is required for each extended monitor

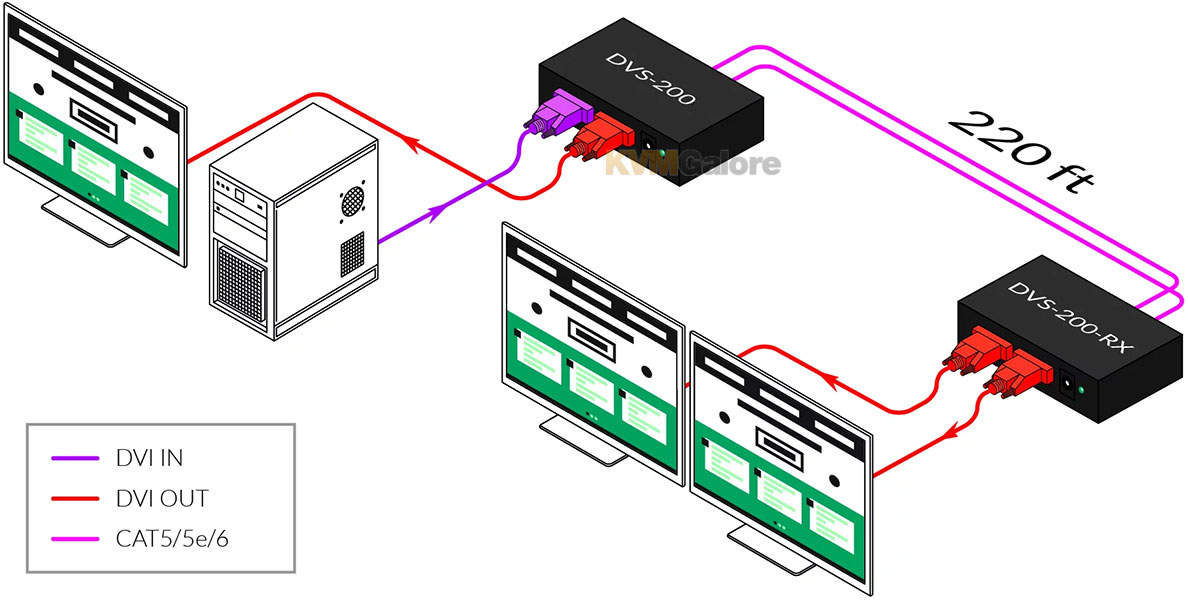

DVS-200 splits a DVI-D video signal and extends it to 2 remote locations (PLUS one local screen) up to 220 feet away via a single CAT-6 cable, while retaining a perfectly clear, crisp image of up to 1920x1200 resolution.
SmartAVI's DVS-200 allows you to extend a DVI-D signal to up to four remote displays via one small unit that also loops a signal to a local screen for local monitoring.
A great application example would be a retail shop running its digital signage from a computer in its back office - using DVS-200, a media file or group of files could be broadcast to up to four screens situated around the store while also being viewed locally on that computer's monitor.
Quite simply, the outgoing DVI-D signal from your computer is plugged into DVS-200. This box has one input and four outputs, so that your signal can be sent up to 220 feet over inexpensive CAT-6 cables to display screens anywhere in your retail shop, lounge, etc.

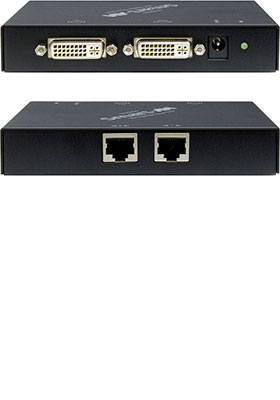

In addition to the four outgoing signal ports, the unit also has a loop-back port, so that you may monitor exactly what is being broadcast to the remote screens. This is all done from a single unit with one power supply.
On power-up, DVS-200 reads and stores the EDID of the DVI monitor connected to the local loop-back port. From that point on, even if the local monitor is not attached to the unit, its DDC is retained in the flash memory of DVS-200 unit and it will operate as if the monitor were connected, offering unhindered use and simple flexibility.
Applications
• Call Centers - co-locate user's computers
• Industrial - protection against pollution
• Information terminals and kiosks
• Airports - air traffic control, passenger information systems
Features and Benefits
• Local DVI output
• Top image quality at all resolutions
• Video resolutions up to 1920x1200 @ 60Hz (1280x1024 @ 75Hz) at all distances up to the maximum distance
• User selectable: DCC-information used from the remotely located monitor or from an internal DDC table
• Distances: 220 feet using regular STP CAT-5e or STP CAT-6 cables
• Compatible with all operating systems
• Upgradeable with onboard Flash for DDC
• Rack-mount options: Mount up to 4 devices in a 19" 1U rack mount kit to save expensive rack space
