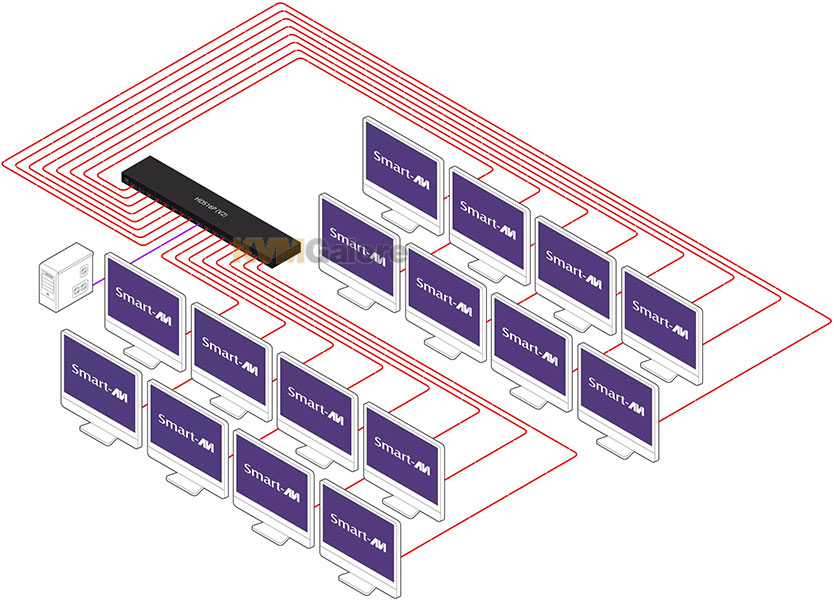

Send one 4K HDMI signal to 16 displays with no loss of quality

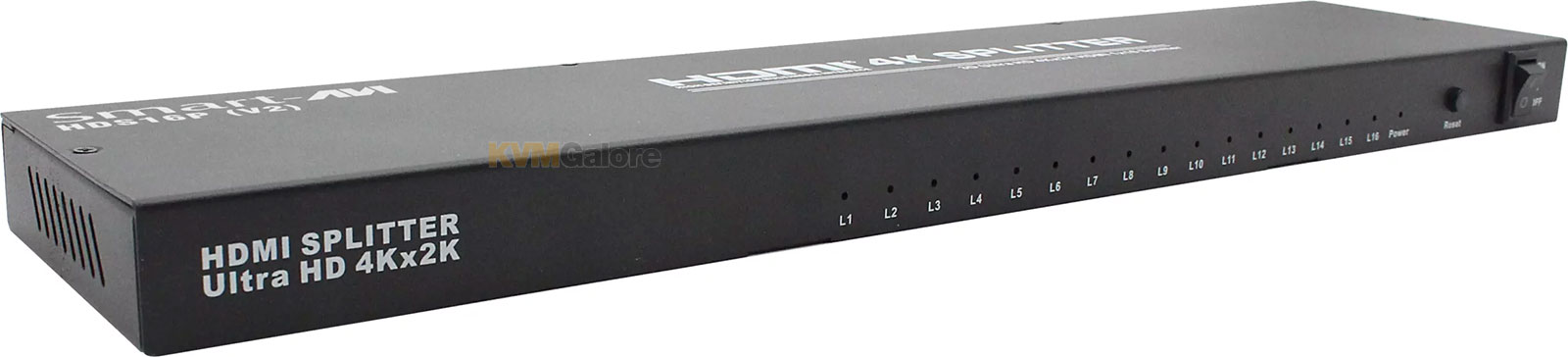

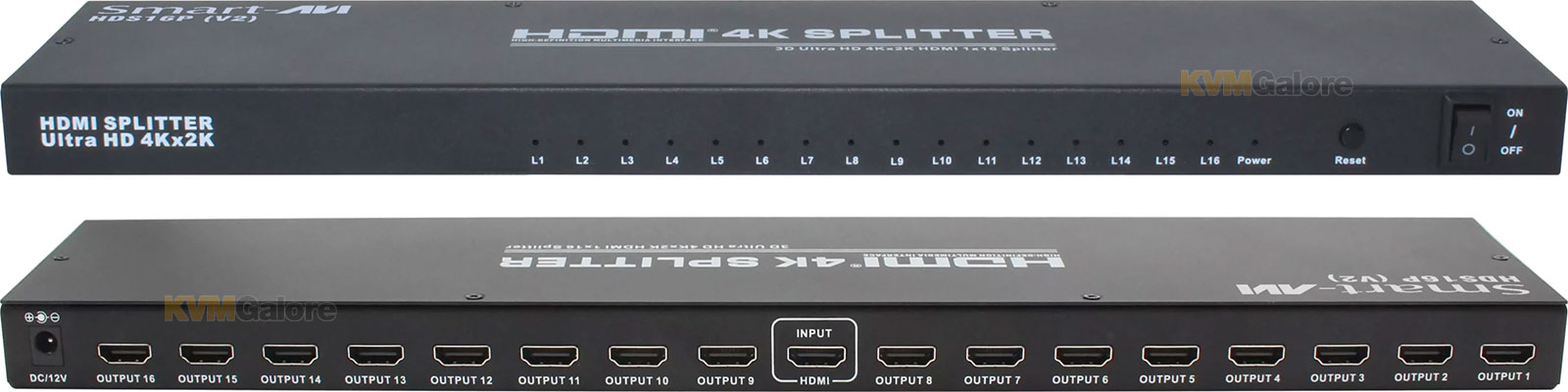

HDS16P (V2) HDMI splitter gives users the ability to take a single HDMI input and re-route it to sixteen displays. HDS16P (V2) splitter supports HDMI features like 3D video and 4K resolution and audio.
With no loss of signal quality and a simple - hardware-only implementation - HDS16P (V2) is the easiest and most cost-effective way to transmit stunning HD signal to sixteen displays simultaneously and instantly.
There is no need for multiple source devices for multiple HD displays when using this handy splitter.
HDS16P (V2) splitter delivers up to 10.2 Gbps data throughput and supports exciting HDMI features like 3D video and the latest in amazing 4K resolution. This means users are always getting top-quality video from the device.
HDS16P (V2) splitter saves users both the space and money otherwise lost on individual player-HDTV connections. HDS16P (V2) also supports exciting HDMI features like 3D video and amazing 4K resolution picture.
HDMI can output up to 50 feet from an HDMI device to the HDMI splitter, and then 80 feet from the HDMI splitter to the displays.
Features and Benefits
• Ultra-HD 4K (4096x2160) video resolution
• One HDMI 1.4 input signal split to sixteen HDMI screens
• HDCP 1.3 protocol compliant
• Supports CEC
• Supports deep color 30bit, 36bit
• Supports Blu-ray players
• Digital audio format, with DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Supports signal retiming
• Input up to 50 feet AWG26 HDMI 1.3 standard cable length
• Output up to 80 feet AWG26 cable length
• No loss of quality
• Hardware-only solution
Package Includes
• HDMI 16-port splitter [HDS16P-V2]
• Power supply [PS5VD4A]
Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.
