Keyboard/Mouse Switches

4- and 8-port KM (keyboard/mouse) switches

with cursor & mouse-gesture switching, multi-screen support, USB 2.0 peripheral sharing, optional audio and audio mixing support, optional redundant power, optional Android & Windows configuration apps, and optional Web interface

SmartAVI's keyboard/mouse switches enable users to manage and switch KM (Keyboard and Mouse) functions of four or eight connected computers, including multi-head computers.

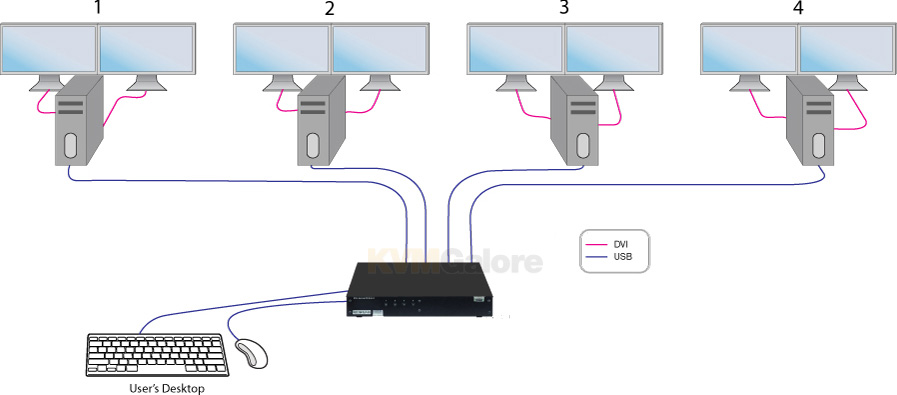

With support of multiple displays per computer, users can create the ultimate keyboard/mouse environment. This can be a superior solution to operating a KVM switch, especially among multi-head computers. Users can simply connect the monitors directly to the computers and use SmartAVI's keyboard/mouse switches to switch between computers for keyboard/mouse operation.

SmartAVI's keyboard/mouse switches are completely driverless, requiring no software or updates (although the switch has the capability for firmware updates). They are compatible with virtually any PC and all major operating systems without the need for software downloads, and it supports all USB 2.0 peripherals.

With full USB keyboard and mouse emulation, SmartAVI's keyboard/mouse switches deliver the utmost in user-friendly operation. Furthermore, the switches enable users to control keyboard/mouse functions on one computer while maintaining the connection of other USB peripheral on another connected computer simultaneously, without interruption for improved workflow.

Users can switch inputs via the buttons on the front panel or keyboard hot keys.

SmartAVI's keyboard/mouse switches are the first keyboard/mouse devices on the market to offer RS-232 control.

Users can also switch using a double click of a mouse's center button (known as Mouse-Gesture switching).

In single-head mode, users can switch computers with Smart-AVI's PASS (progressive automatic screen switching) cursor-switching technology, which enables the switch to automatically switch computers based on where the user's mouse goes. It's a quick, efficient and intuitive way to provide smooth switching that corresponds with a user's cursor movement. Some models support PASS on multi-screen PCs as well (with a driver installed on each such PC).

SmartAVI's keyboard/mouse switches allow for numerous displays to be used with their four or eight connected computers. This means multiple multi-head computers can be managed with no drivers required. Users can connect up to eight 16-head computers, for example, or four/eight quad-head computers, and so on. Although PASS is not available on all models when using multi-head computer configurations, users can easily switch using the switch's other supported switching protocols, including Mouse-Gesture switching.

SKM-04: 4-ports; Audio support

SKM-04-Lite: 4-ports; PASS mouse-cursor switching between multi-screen PCs support; Windows settings/configuration app

SKM-04-Plus: 4-ports; PASS mouse-cursor switching between multi-screen PCs support; Windows/Android settings/configuration apps; Web interface

SKM-04-Pro: 4-ports; PASS mouse-cursor switching between multi-screen PCs support; Windows/Android settings/configuration apps; Web interface; Audio and audio mixing support; Power redundancy

SKM-08: 8-ports

SM-KMN-08: 8-ports; Audio support
