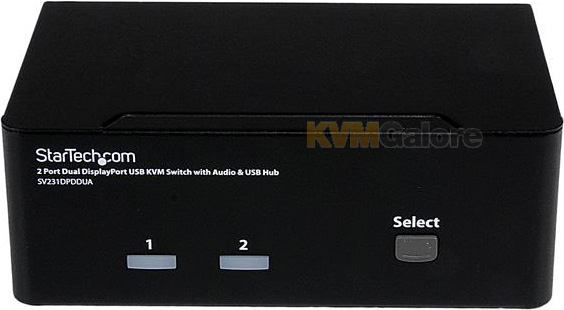

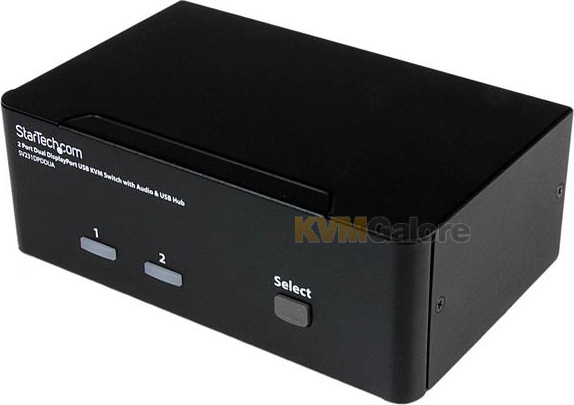

SV231DPDDUA: Control two dual-head DisplayPort computers via a single console

with audio support and USB 2.0 hub for peripheral sharing

• Native dual DisplayPort connections - no adapter required
• Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
• Maximum resolutions of 3840x2400 at lower refresh rates
• 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
• 3.5mm 2-channel stereo audio and microphone
• Integrated 2 port hub for USB 2.0 peripheral sharing
• No driver or software installation required
• OS Independent
• Hotkey and push-button switching
• Full plug-and-play support with USB console interfaces
• User-defined scan time intervals
• Audio can be switched independently
• Supports hot-plug, un-plug and link status-failure detection
• Supports DDC2B for monitor detection
• VESA and CEA compliant

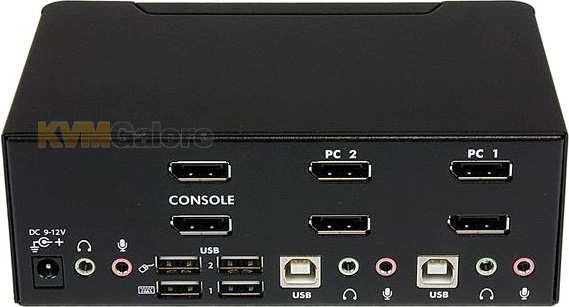

• Small form factor design with rear connection ports
• 3 years warranty

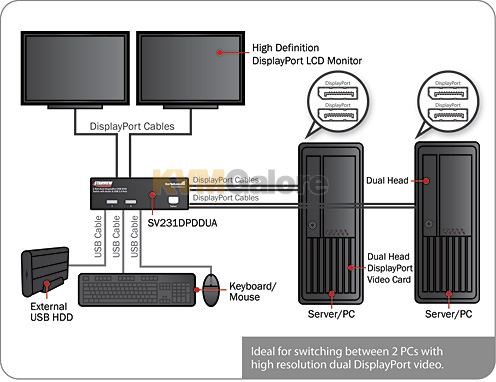

SV231DPDDUA 2-port USB dual-DisplayPort KVM switch with audio and USB 2.0 hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual-head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 @ 60Hz with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

The StarTech.com Advantage
• Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
• Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
• Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook® connectivity

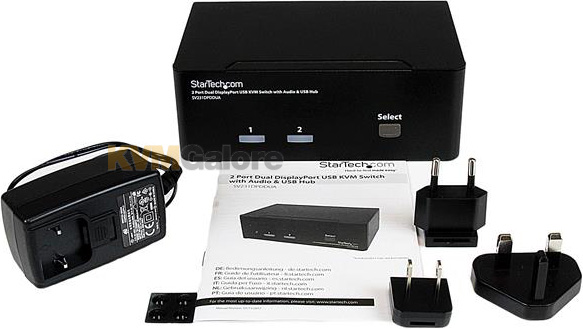

Included in Package
1x 2 Port Dual Display DisplayPort KVM
1x Universal Power Adapter (NA/EU/UK) and AU in Australia
1x Manual
Cables not included

Required Cables (per port)
2x DisplayPort, male-male
1x USB, Type-A to Type-B
2x Audio, 3.5mm, male-male
