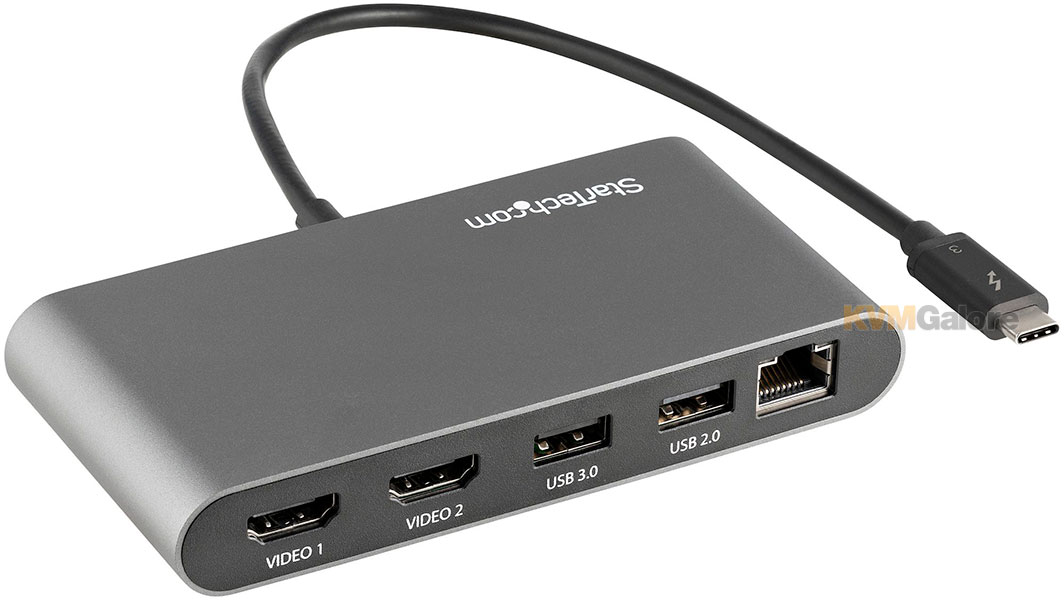

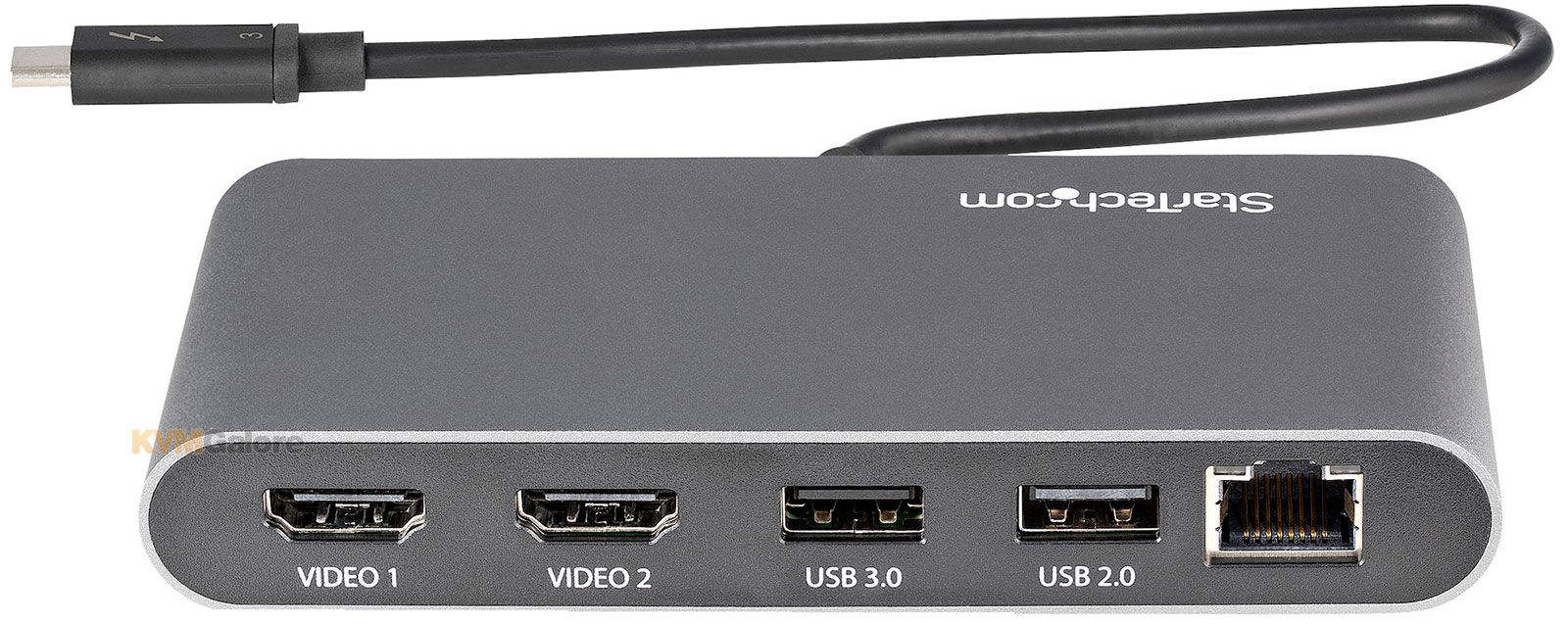

Dual 4K HDMI video, Thunderbolt 3 docking station

2x USB ports and Gigabit LAN

• Thunderbolt 3 (40 Gbps) docking station
• Dual HDMI* monitor 4K 60Hz
• 2-port USB Type-A hub
• Gigabit Ethernet port with PXE boot and WoL
• Long attached host cable to reduce port/connector strain on MacBooks and laptops on riser stands
• Compatible with Thunderbolt 3 devices including Lenovo ThinkPad X1 Carbon/T Series, Dell XPS/Latitude/Precision and HP EliteBook, MacBook Pro 16/13/Air (extended dual displays on Mac with Intel, M1 MAX and M1 PRO; single display only with older Apple M1 chip)
• Ideal for users who need to use their laptop power adapter as they require 100W or more to keep their laptops charged, but still want Thunderbolt 3 dock performance and functionality

Expansion Ports
1x USB Type-A (USB 3.2 Gen 1, 5Gbps)
1x USB Type-A (USB 2.0, 480Mbps)
2x HDMI*
1x RJ-45 (wired Gigabit Ethernet with PXE Boot and Wake-on-LAN support)

This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity.

The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB Type-A (USB 3.2 / 2.0) ports.

For flexible set up, the attached Thunderbolt 3 host cable has an extended length of 11 inches (28 cm).

Create a Dual-4K 60Hz Workstation
Great for editing 4K video or other Ultra-HD tasks, this portable Thunderbolt™ 3 to HDMI dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.

Connect your laptop to 2x 4K HDMI displays (up to 4096x2160p @ 60Hz)

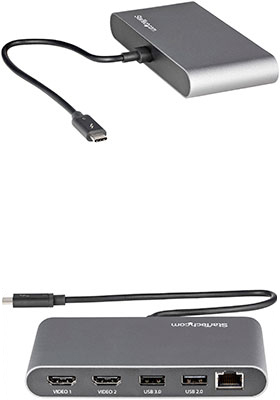

Compact Size and 11-inch Attached Host Cable
At just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 11 inch (28 cm) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.

Ideal for Power-Demanding Workstation Setups
As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.

This bus-powered Thunderbolt 3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.

Need help with product selection? Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
