Dual 4K video, Thunderbolt 3 docking station

6x USB ports, SD card-reader, audio support, Gigabit LAN and 85W Power Delivery

• Thunderbolt 3 (40 Gbps) docking station
• DisplayPort and Thunderbolt 3 (USB-C) video outputs (or single monitor 5K 30Hz)
• SD 4.0 card reader
• Gigabit Ethernet
• Headset port
• 85W Power Delivery powers and charges Ultrabooks and workstation laptops such as MacBook Pro (15 and 16), MacBook Air, HP, Lenovo ThinkPad and Dell XPS using macOS and Windows
• 6-port USB 3.1 Gen 1 5Gbps hub (5x USB Type-A and 1x USB Type-C ports) with 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected
• Auto driver setup
• Thunderbolt 3 host cable included
• 6 foot USB Type-C to DisplayPort cable included for second DisplayPort monitor
• Extended dual display support on MacBook Pro/Air with Intel processor and single display with Apple M1 Chip
• Downstream Thunderbolt 3 port that supports 3 modes of operation: 2nd monitor, daisy chain up to 5 Thunderbolt 3 peripherals, or connect USB Type-C accessories
• Connectivity Tools application provided with this device the improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout and Wi-Fi Auto Switch utilities

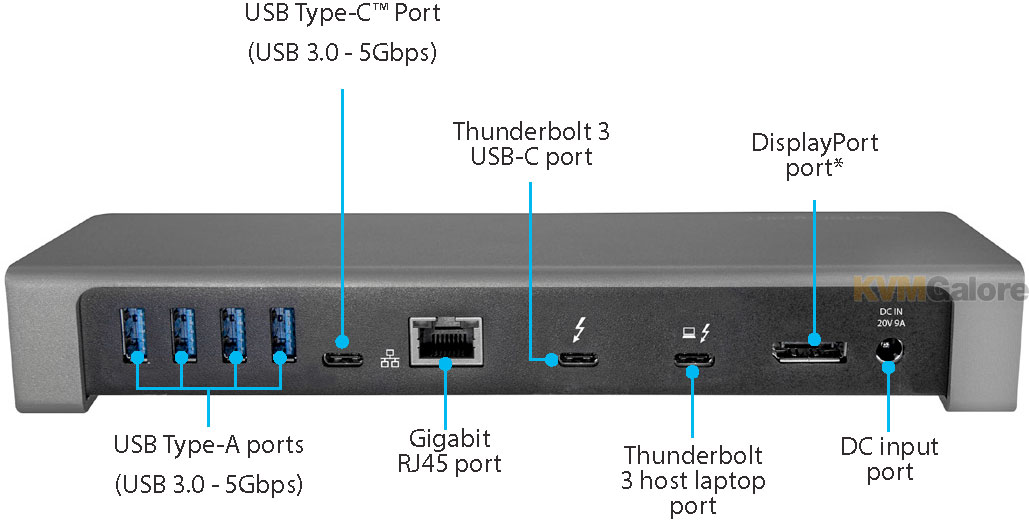

Expansion Ports
4x USB Type-A (USB 3.2 Gen 1, 5Gbps)
1x USB Type-A (USB 3.2 Gen 1, 5Gbps, BC 1.2 Fast-Charge)
1x USB Type-C (USB 3.2 Gen 1, 5Gbps)
1x Thunderbolt 3 (USB Type-C)
1x DisplayPort*
1x RJ-45 (wired Gigabit Ethernet with PXE Boot and Wake-on-LAN support)
1x SD 4.0 card reader
1x 3.5 mm headset

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality Thunderbolt 3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

Create a Dual-4K 60Hz Workstation
This dual-monitor docking station supports 40Gbps speeds and 4K (4096x2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The Thunderbolt 3 dock can also support 5K (5120x2880 @ 60Hz) on a single display.

Connect your laptop to:
1 x 4K monitor via the DisplayPort Port
1 x 4K monitor via the Thunderbolt 3 USB-C Port (1.8 m cable included)
OR
1 x 5K monitor via the DisplayPort and Thunderbolt 3 USB-C ports

Easy Installation and Deployment
Simply connect the Thunderbolt 3 dock to your laptop with the included Thunderbolt 3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

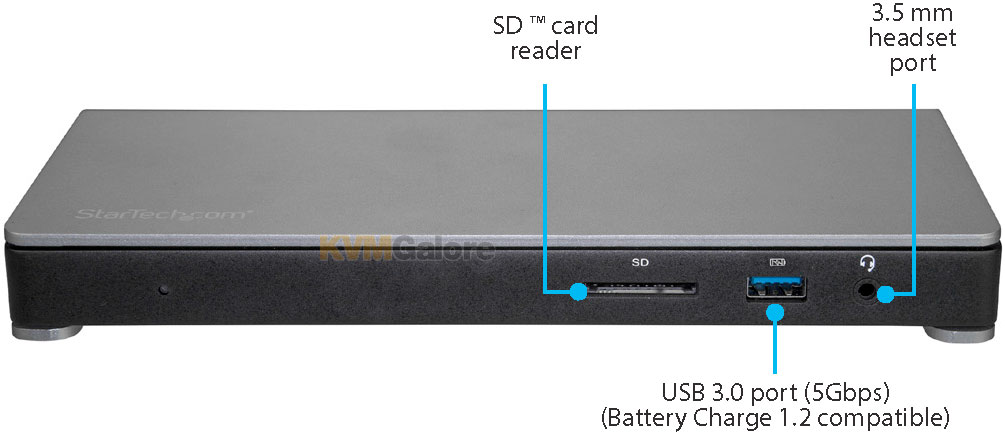

Plenty of Ports Including SD Card Reader
The Thunderbolt 3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB Type-C port, a GbE Rthernet port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.

85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: To setup and save custom windows layouts
• Mac Address Pass-Through Utility: To improve network security
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN

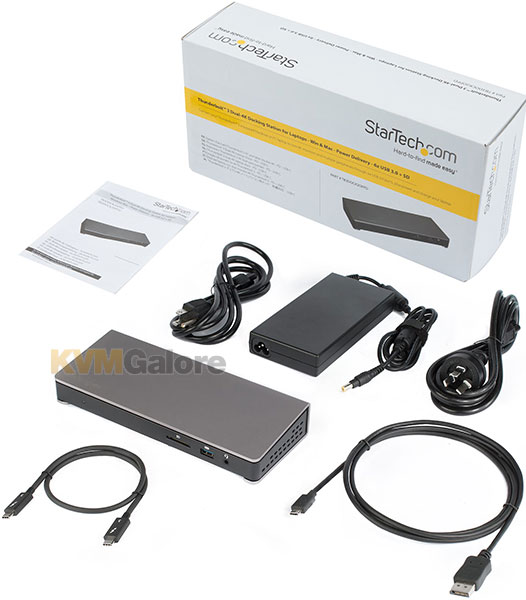

Included in Package
1x Docking station
1x Thunderbolt 3 cable
1x USB-C to DisplayPort cable
1x Universal power adapter
2x Power cords (NA/JP, ANZ)
1x Instruction manual

Need help with product selection? Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* DisplayPort does not support DisplayPort++ and an active video adapter is required to convert this video signal
