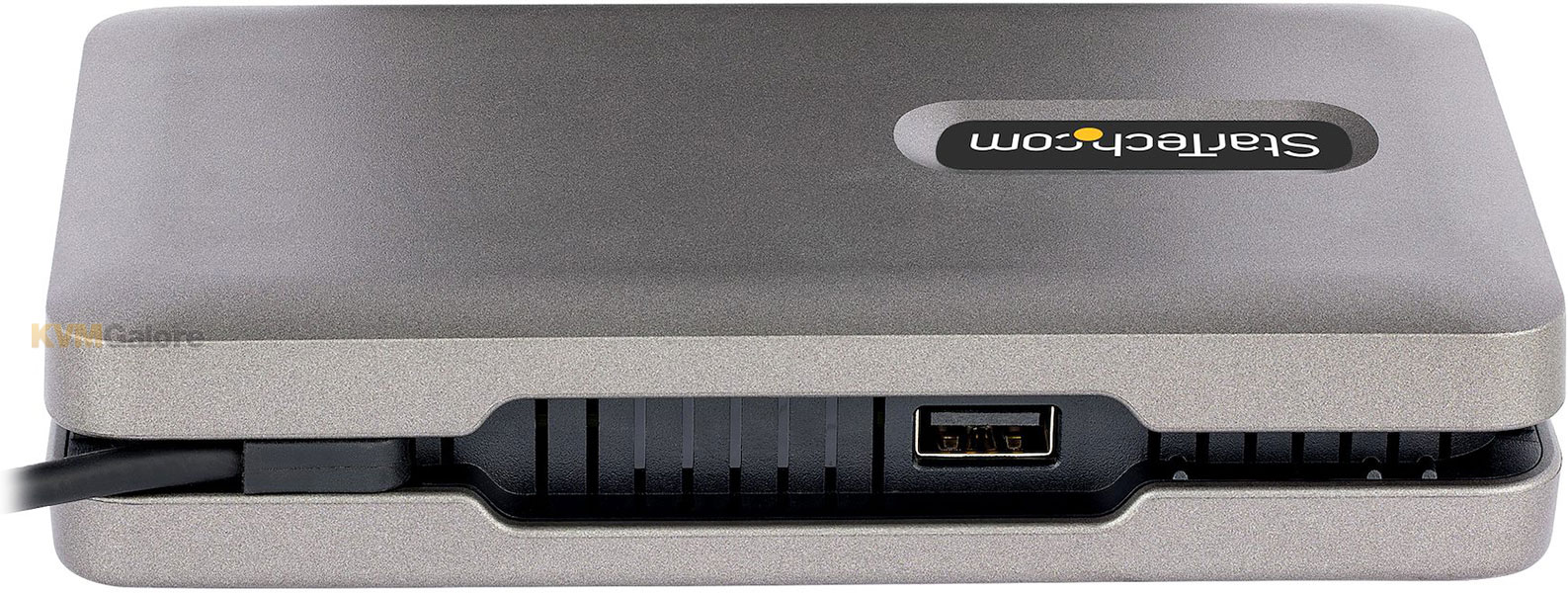

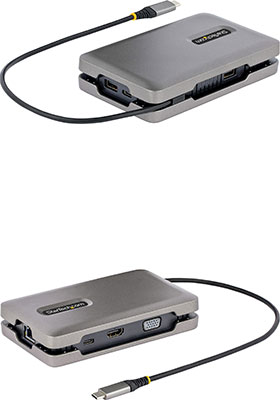

USB-C multiport adapter

with dual 4K 60Hz + VGA video, 3x USB ports, Ethernet, built-in cable management and 100W Power Delivery

• USB Type-C docking port
• USB-C DisplayPort Alt mode video output*; USB-C video port also supports USB 10Gbps data
• HDMI 2.0b, or VGA
• 2x USB Type-A hub
• 100W USB-C Power Delivery pass-through (80W laptop charging) with 20W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs
• Gigabit Ethernet
• Dual Monitor support up to 1x 4K 30Hz and 1x 1440p 60Hz through USB-C and HDMI with Intel 11th Gen DisplayPort 1.4 Alt Mode or higher Processors and Discreet GPU, backwards compatible with DisplayPort 1.2 laptops supporting dual 1080p video
• Bus power the portable USB-C monitor upto 12W
• Connectivity Tools application provided with this device the improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout and Wi-Fi Auto Switch utilities

Expansion Ports
1x HDMI (19 pin)
1x VGA (15 pin, High Density D-Sub)
1x USB Type-C (24 pin, USB 3.2 Gen 2, 10Gbps, 10W Power, DisplayPort Alt-Mode Video)
2x USB Type-A (9 pin, USB 3.2 Gen 2, 10Gbps)
1x Gigabit Ethernet

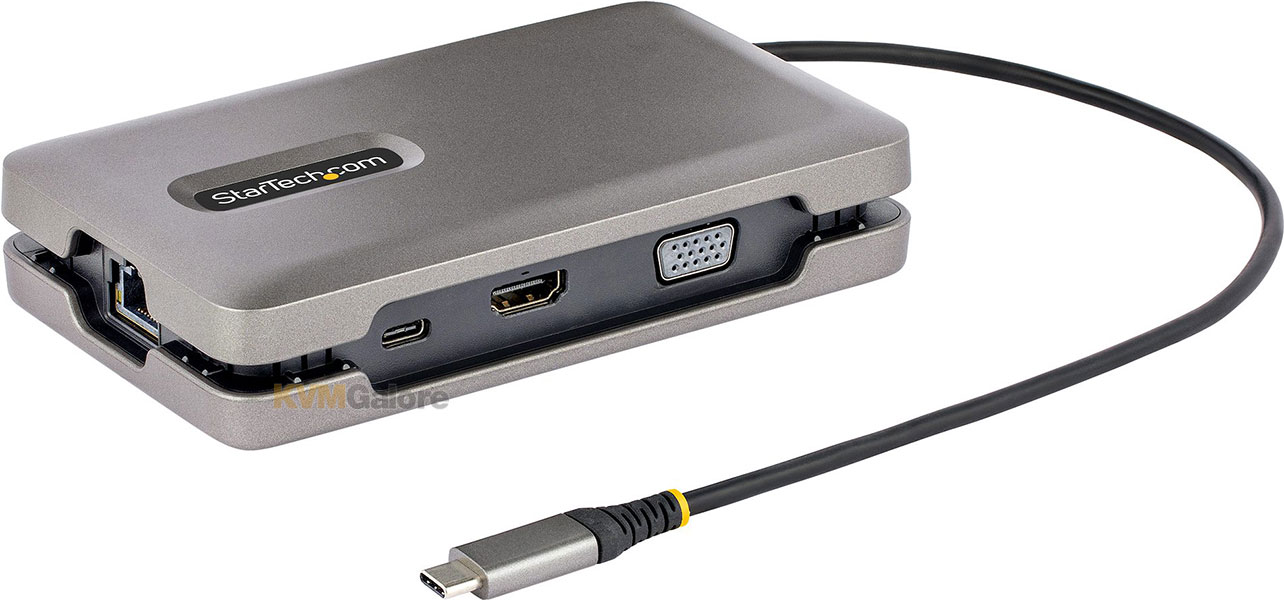

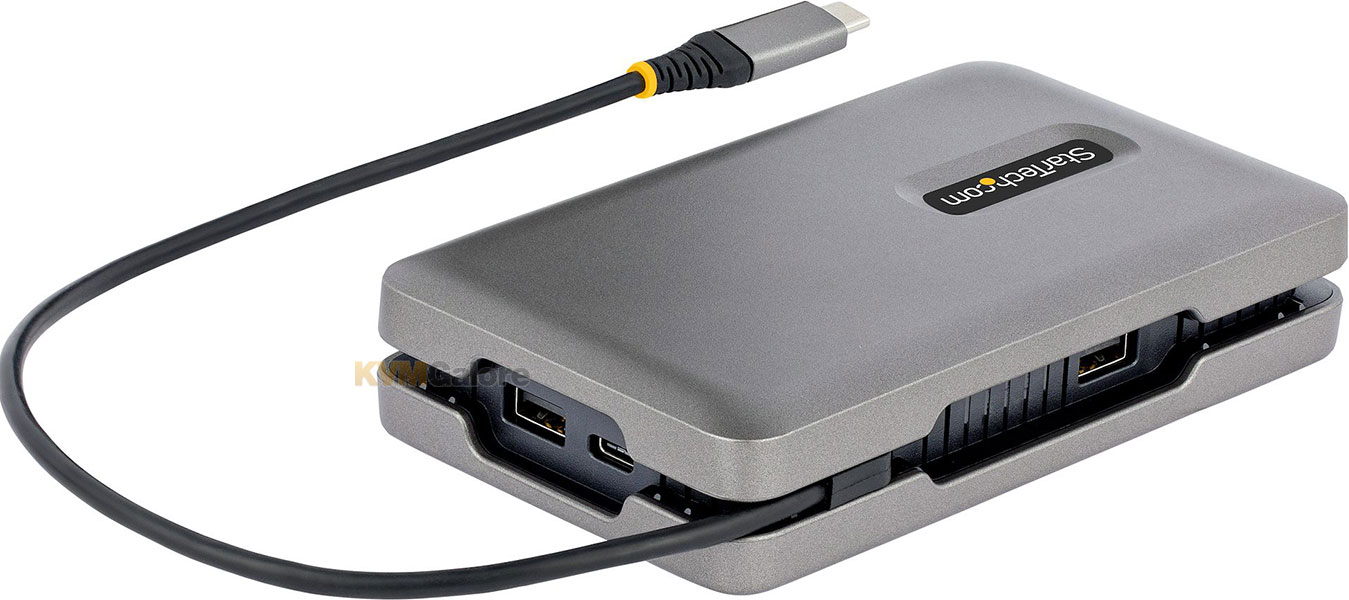

This USB-C™ multiport adapter/docking station with DisplayPort™ 1.4 (Alt Mode) and Multi-Stream Transport (MST), features three video output options (HDMI, VGA and USB-C video) to support a single or multi-monitor workstation.

The USB-C video port supports USB 3.2 Gen 2 (10Gbps) with 10W of power, to connect a USB-C monitor or a USB-C peripheral.

In addition, the docking station also features a 2-port USB Type-A 3.2 Gen 2 (10 Gbps) hub, a Gigabit Ethernet port, and provides advanced charging through a USB Power Delivery 3.0 pass-through port.

The multiport adapter connects to a laptop's USB-C or Thunderbolt 3/4™ port, using the integrated 10-inch (25cm) USB-C cable.

Versatile, High-Performance Video via MST

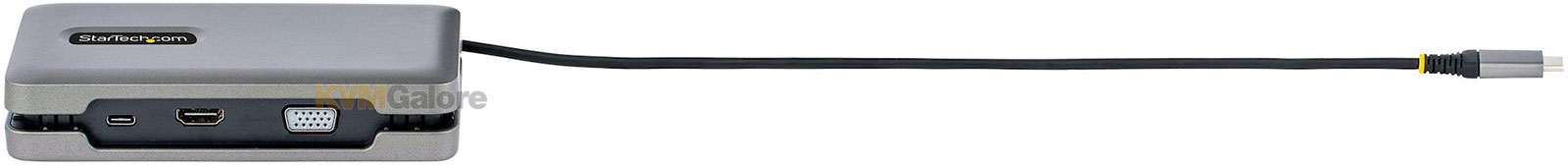

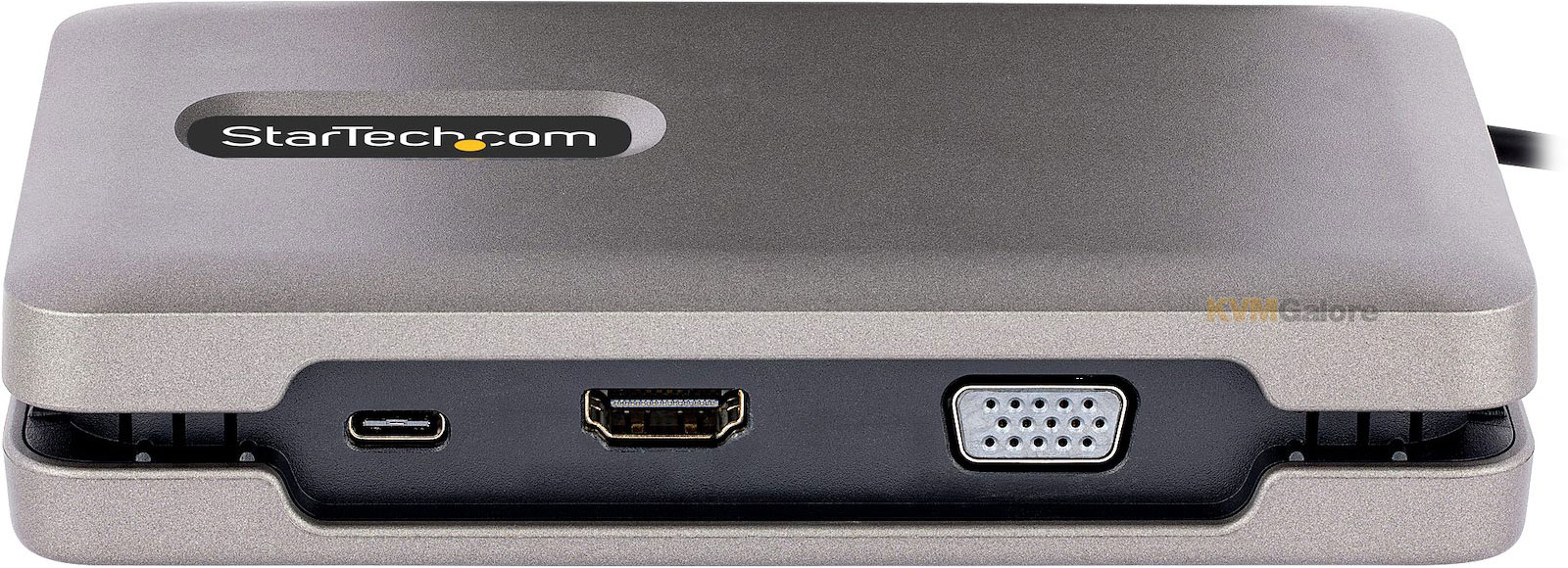

The compact USB Type-C docking station features three video output options to turn your laptop into a single or multi-monitor workstation:
• HDMI port: Provides HDR video with resolutions up to 4K 60Hz
• VGA port: Provides analog video with resolutions up to 1080p 60Hz
• USB-C port: Provides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DisplayPort Alt Mode video or peripheral connection, on a non-Thunderbolt adapter

The advanced video versatility of this multiport adapter, makes it suitable for a wide variety of applications:
• Connect a portable USB-C monitor as an extended display, to obtain a high resolution external monitor during on-the-go travel between an office desk, home office, hot desk, or the boardroom
• Connect a USB-C peripheral to the downstream 10Gbps USB-C port, while using the HDMI and/or VGA ports to connect external monitor(s) as extended display(s)
• Connect multiple external monitors as extended displays, using any combination of the two video ports, to create a high-productivity workstation. USB-C video adapters (sold separately) can be used to connect HDMI, DVI, VGA, or DisplayPort monitors to the USB-C video port.

This docking station utilizes MST to obtain video versatility. Video performance is based upon the number of attached monitors and the host computer's video controller. Consult the manufacturer of the host computer to determine MST video performance. StarTech.com performs rigorous performance benchmarks with all major host computer video controllers. The video performance results of StarTech.com's testing are listed below:

Connect Your Devices

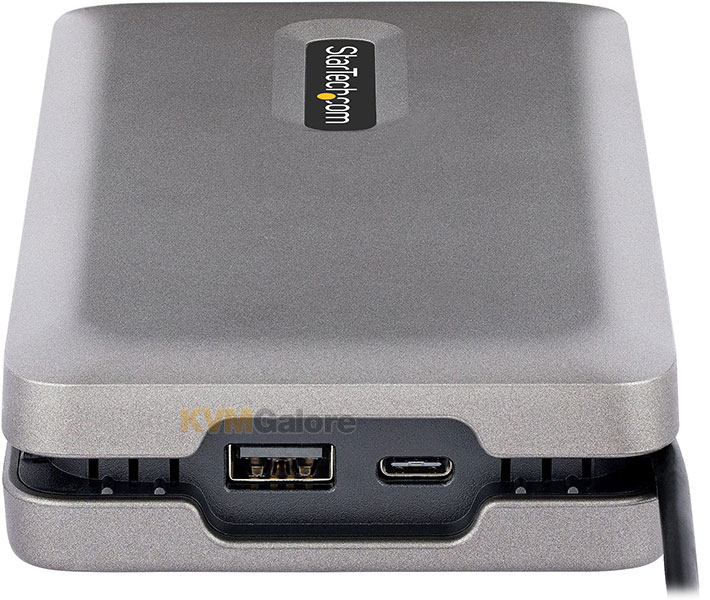

The USB 3.2 Gen 2 (10Gbps) hub features two USB Type-A ports and one USB-C port, for connecting your USB devices. The downstream USB-C port can be used to connect a monitor, or USB-C peripheral with up to 10W (5V/2A) of power, to power or charge your peripherals.

Multiple Use Cases
A versatile docking solution for use at an office desk, home office, hot desk, or in the boardroom. It's portable enough to be carried in a bag / backpack for mobile use.

The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the USB Power Delivery pass-through port - for full laptop and USB-C peripheral charging.

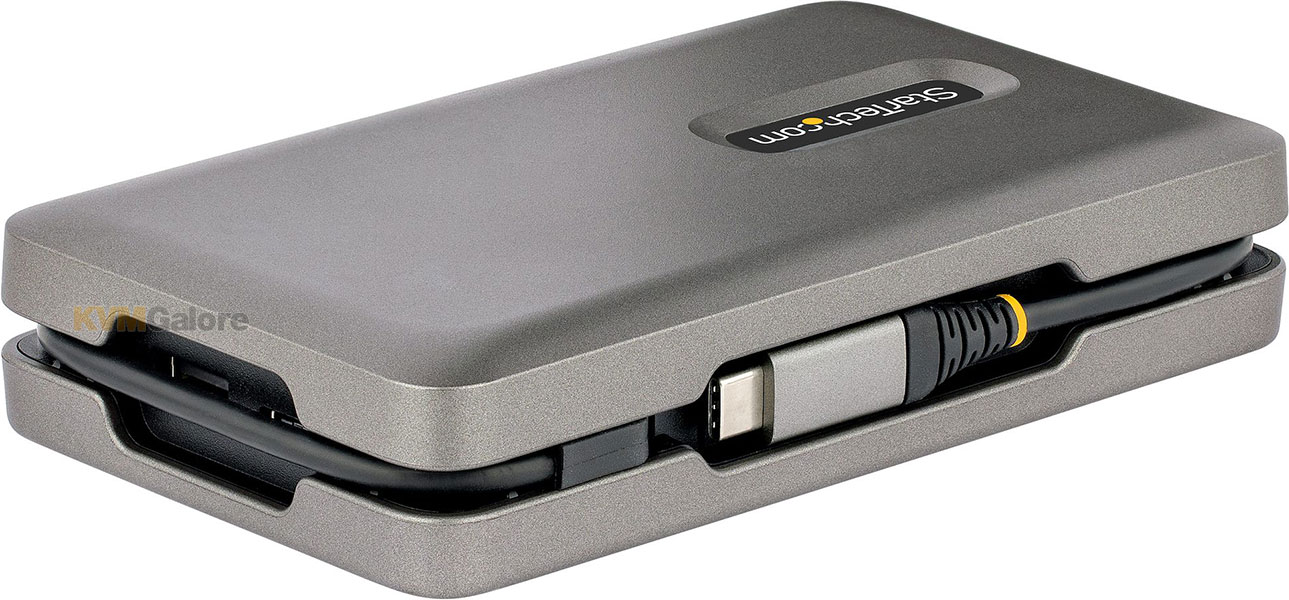

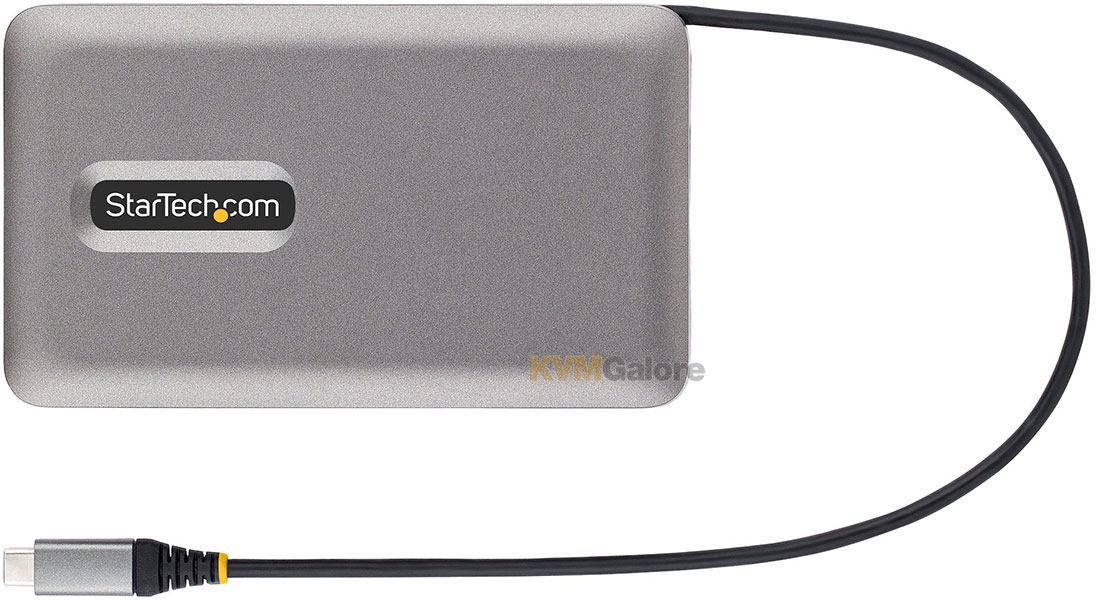

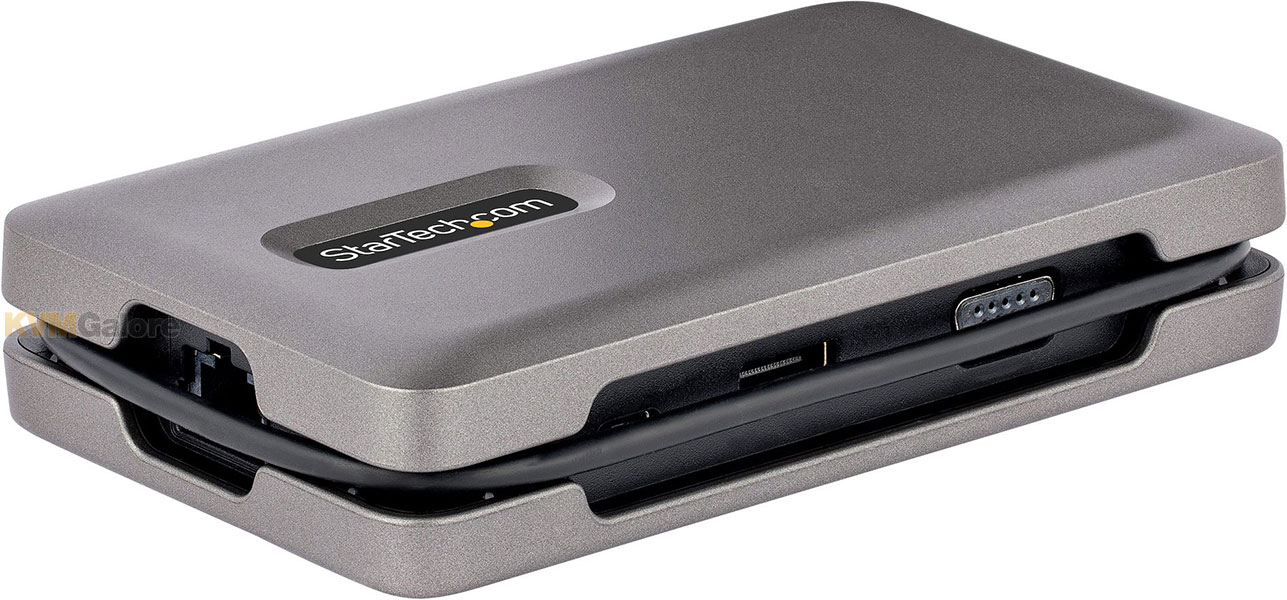

The lightweight docking station features a built-in 10 in (25 cm) USB-C host cable for added setup flexibility and to reduce port strain with laptop connection elevated off desktop surface.

Charge Your Laptop and Peripherals
With support for USB Power Delivery 3.0 (100W - 80W charging, 20W reserved for multiport adapter), the multiport adapter enables charging of the host computer and peripherals connected to the USB-C port. USB Power Delivery is only available when a USB-C power adapter is connected to the Power Delivery pass-through port. Power Delivery 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).

Reliable Network Connectivity

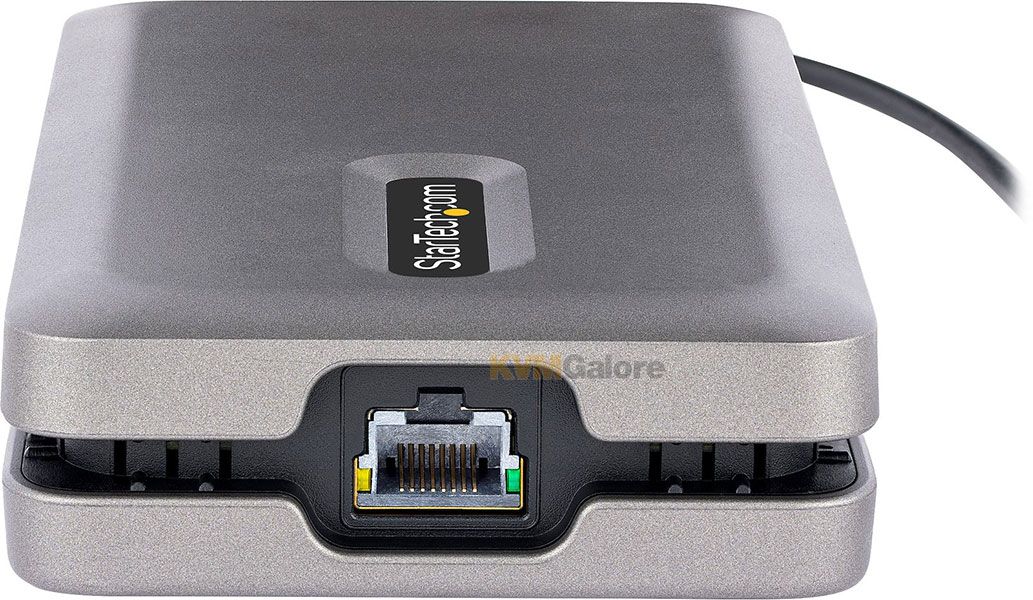

The Gigabit Ethernet port ensures reliable wired network access. Support for Wake-on-LAN (WoL) enables remote booting of the host computer.

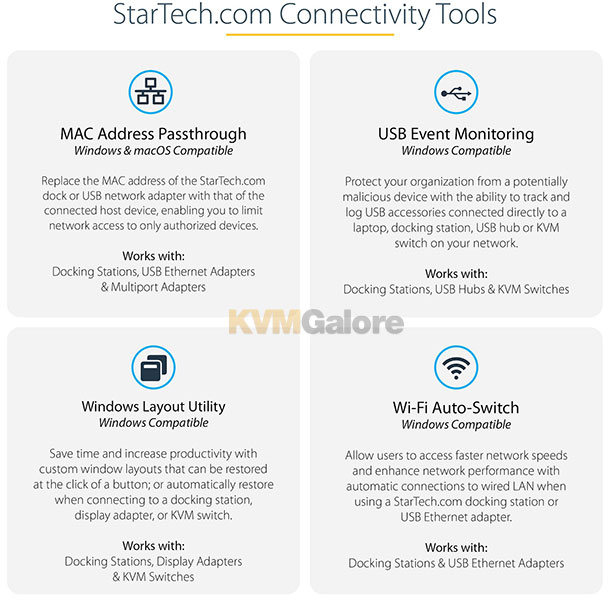

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: To setup and save custom windows layouts
• Mac Address pass-through Utility: To improve network security
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN

* Host system must support USB-C Power Delivery and DisplayPort alt mode. For a multi-monitor configuration, the computer must support MST
