8-port VGA video splitter
with 450 MHz video bandwidth and signal boosting up to 213 feet

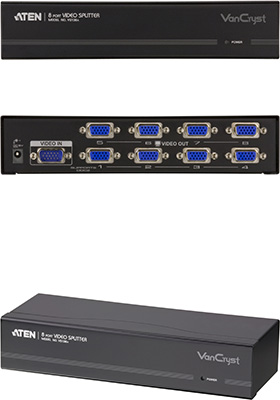

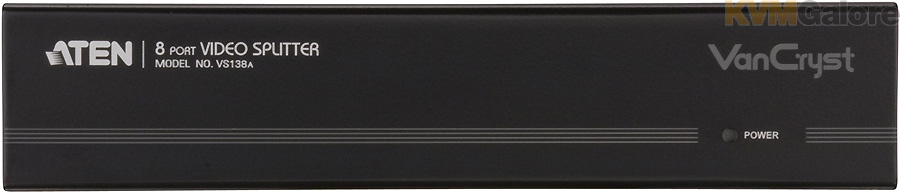

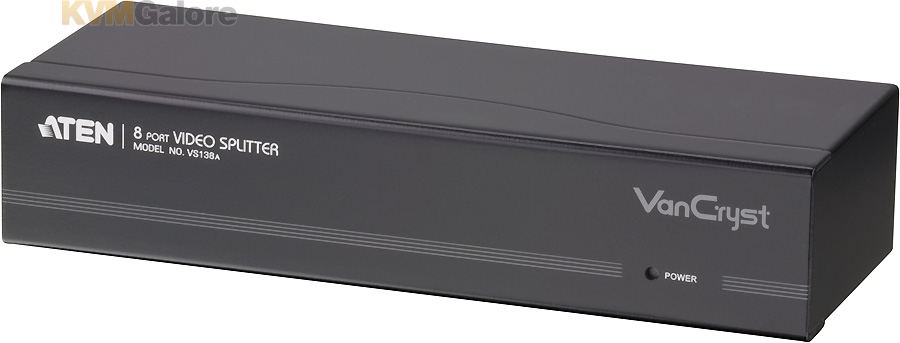

VS138A Video Splitter is a boosting device that duplicates a video signal from one source to 8 output devices.
Cascadable to three levels, the VS138A provides up to 512 video signals, in addition to extending transmission distance up to 65 meters, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA or multisync video signals over long distance without hassle, the VS138A is your best choice.
Applications
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos
Features and Benefits

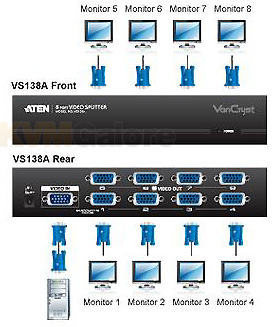

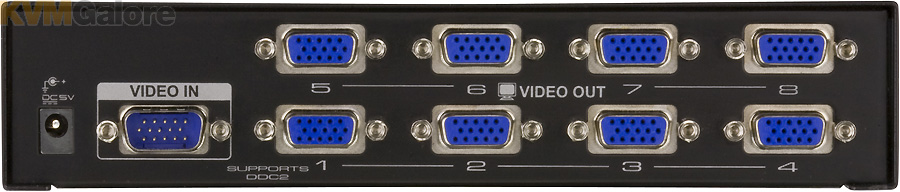

• One video input to 8 video outputs
• Supports up to 450 MHz bandwidth
• Cascadable to 3 levels - provides up to 512 video signals
• Long distance transmission - up to 213 feet (65m)
• Superior video quality - up to 2048 x 1536
• Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors
• Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
• All-metal casing
Package Content
1x VS138A Video Splitter
1x Power Adapter
1x User Guide
