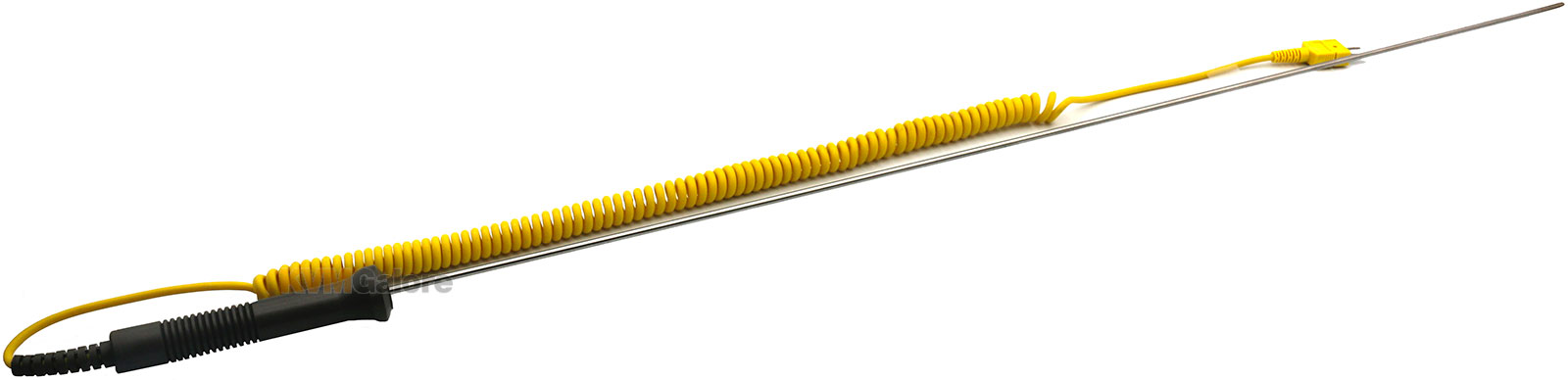

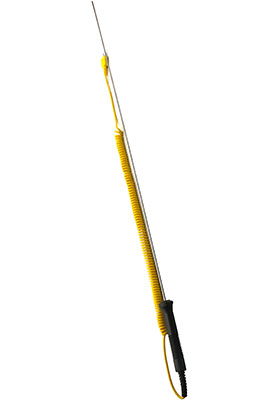

TCK: K-type thermocouple sensor

for measuring extreme (-330°F to 1650°F) temperatures

Thermocouples are temperature sensors typically used in heavy industry, cryogenics fields and chemical industry where the sensor is being exposed to extremes of temperature. This is due to thermocouples' accuracy and resistance to extremes of high and low temperatures.

TCK K-type thermocouple sensor requires K-type thermocouple adapter (TCAK - see listing below) in order to interface with an AKCP securityProbe or sensorProbe+ base unit monitoring appliance.

Thermocouples' setup is straight-forward. Plug the thermocouple sensor into the adapter, then connect the adapter to an intelligent sensor port on the securityProbe or sensorProbe+ base unit. A free 5 foot CAT-5 cable is supplied for you to do this. Once connected to the base unit, the securityProbe or sensorProbe+ recognizes the thermocouple automatically and configures the unit. All the user needs to do is set the thresholds for high and low warning and critical levels.

Typical Applications
• Industrial and high tech laboratories
• Heavy industries such as petrochemical and metal processing
• The cryogenics field
• Superconductor and semiconductor research and development
• Scientific research

Features and Benefits
• Simple, rugged, needs no batteries
• Can measure over very wide temperature ranges
• +ve electrode of chromel
• -ve electrode of alumel
• For use in oxidizing inert or dry reducing atmospheres
• Exposure to vacuum for short periods only
• Reliable and accurate at high temperatures

Package Includes
1x K-type thermocouple sensor
