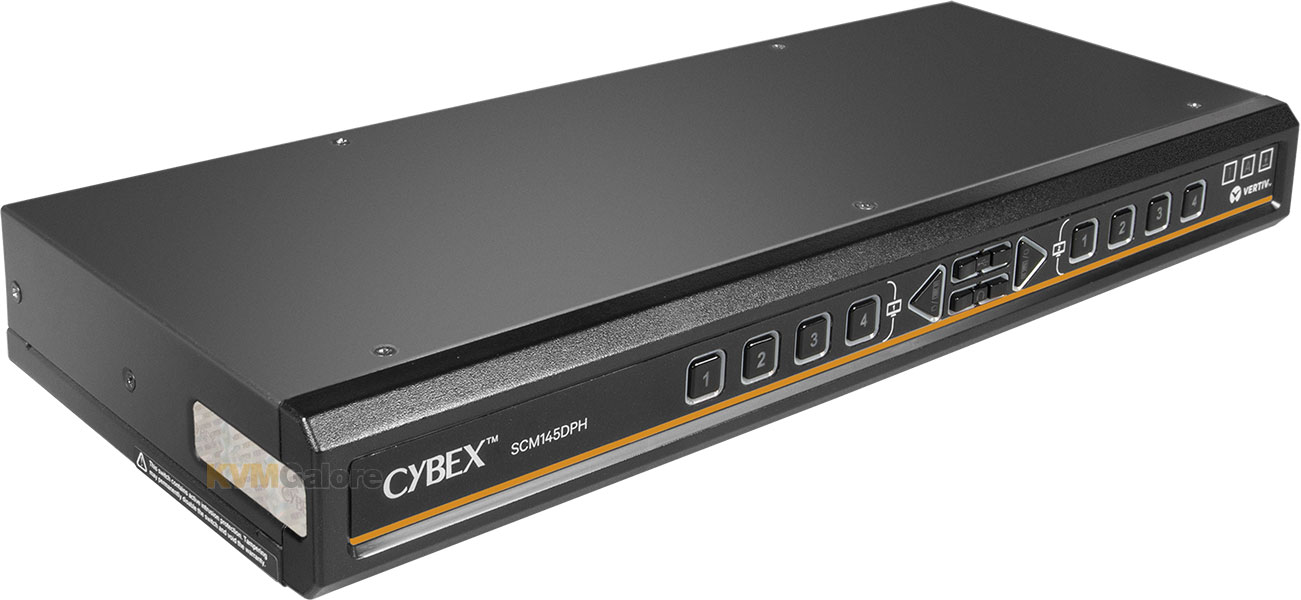

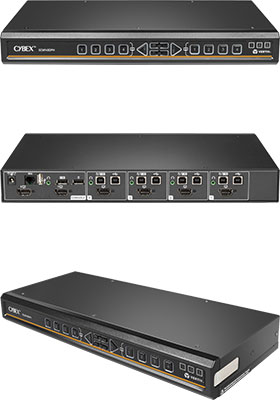

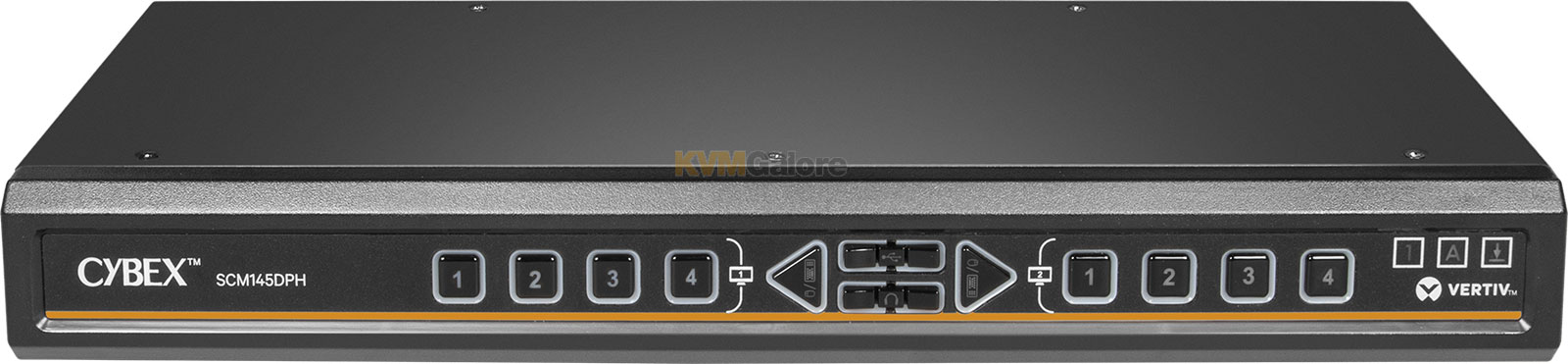

SCM145DPH: A unique switching solutions to simultaneously display two active computers
Vertiv™ Cybex™ secure desktop matrix allows users to securely interact with multiple computers and observe two active computers simultaneously.
Vertiv Cybex SCM145DPH secure desktop matrix KVM eliminates the need for multiple monitors, keyboards, mice and cables. Vertiv Cybex secure desktop matrix switch provides users flexibility by offering a universal video port, freeze DPP and audio channel capabilities as well as touch screen support.
Vertiv Cybex SCM145DPH comes with native video support up to Ultra-HD 4K @ 60Hz and smart-card (CAC) or biometric readers for authentication on any attached computer.
Vertiv Cybex secure desktop matrix is ideal for environments where monitoring and managing of multiple computers, covering various degrees of secure data is required. Through cursor navigation switching (CNS), users have the flexibility to manage and monitor their data by simply pressing the left CTRL key and moving their mouse across window borders.
Vertiv Cybex secure desktop matrix switch comes with universal video connectors that support both DisplayPort* and HDMI* video connectivity for resolutions up to Ultra-HD 4K. With this flexibility, users are not locked in to input and output display types and reduces the need for multiple types of cables.
Through the elimination of multiple KVM peripherals and reduction in desk clutter, Vertiv Cybex secure desktop matrix switch increases productivity and reduces operating expenses for organizations. It also enhances the ability of users to multi-task by keeping two systems in the user's field of vision at any given time.
Security
Designed to meet the latest Protection Profile for Peripheral Sharing Devices version 4.0, users are receiving the most up to date technology in a secure KVM. The secure desktop matrix switch meets or exceeds these requirements with the following capabilities:
• Unidirectional Optical Data Diodes (UODD) - Data can only flow in one direction
• Protected Video Display Emulators - Eliminates potential data leakage from display to computer
• Dedicated Peripheral Port (DPP) - Secure connection to external USB authentication devices
• Tamper-Evident Labels - Ensure hardware has not been compromised
Flexibility

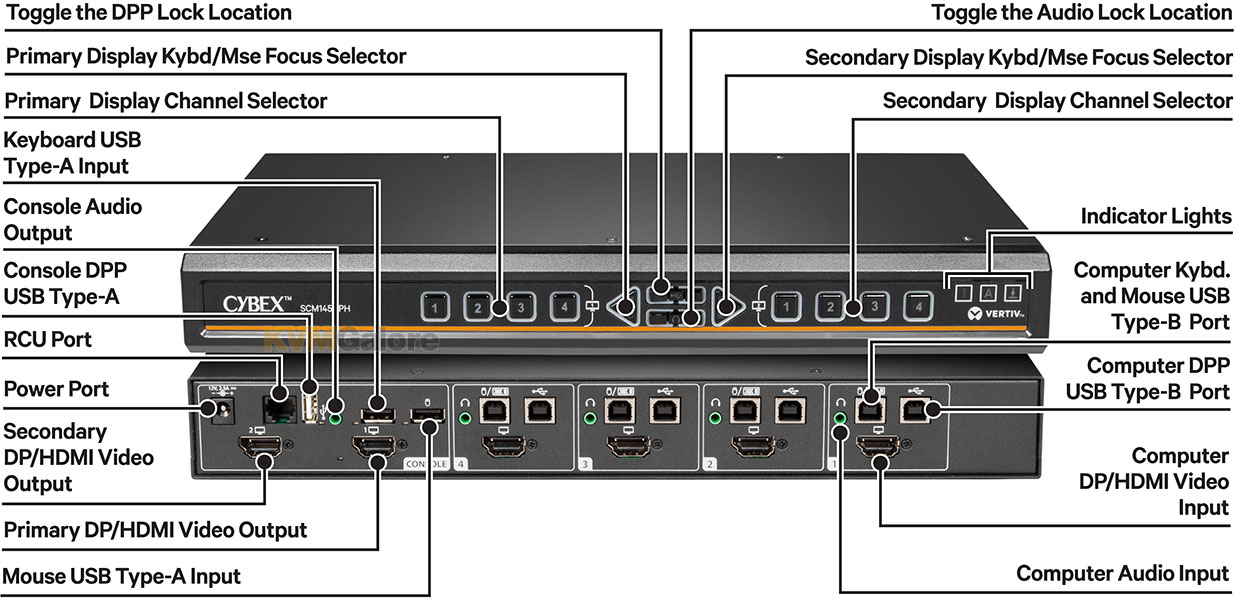

Vertiv Cybex secure desktop matrix switch provides users flexibility when it comes to video connection and switch control:
• Universal Video Port - Supports DisplayPort, HDMI or DVI-D connections
• Freeze DPP Channel - Independently locks DPP channel to a specific computer
• Freeze Audio Channel - Independently locks the audio channel to a computer
Features and Benefits
• Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
• Universal video connectors - Supports either HDMI or DisplayPort on the same physical video input and output ports (DVI-D supported with HDMI-to-DVI-D cable)
• Secure KVM switching allows for instantaneous interaction with two computers from different security classifications
• Cursor navigation switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
• Unidirectional data flow of keyboard, mouse, video, and audio
• Isolated switch ports provide discrete processing paths to each computer
• Native video supports up to Ultra-HD 4K at 60Hz
• Touch screen support (requires a Secure USB HID Filter - see listing below)
• Smart-card (CAC) or biometric readers for authentication on any attached computer
• Eliminate the need for multiple hardware resources, such as monitors, keyboards, mice, and cables
• Ease of setup and use
• Button LEDs can be customized for enhanced channel identification
• Always-on active anti-tampering system, and heavy-duty tamperresistant enclosure with holographic tamper evident seals
• View information on two isolated computers simultaneously
• Block unauthorized USB devices while allowing secure switching of smart card and biometric devices between computers
• Universal video connectors to support DisplayPort, HDMI, and DVI-D
• Active intrusion detection and tamper-evident holographic labels prevent hardware from being compromised
• Enhances ability to multitask by keeping two critical systems in the user's field of vision
• Vertiv patented keyboard lock status indication
Package Includes
• SCM145DPH KVM switch
• External, wall-mounted power supply with user-interchangeable localized plug blades
• Cables are not included

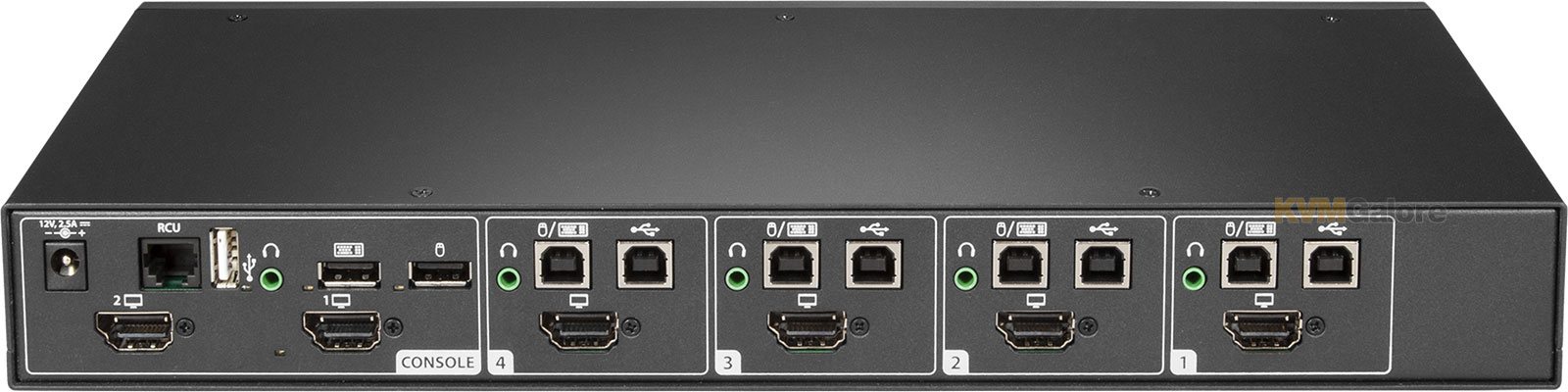

Required Cables (per port)
1x DisplayPort KVM Cable or HDMI KVM Cable
or
1x DisplayPort, male-male or HDMI, male-male
1x USB, Type-A to Type-B (for keyboard/mouse)
1x USB, Type-A to Type-B (for USB smart-card (CAC) or biometric reader)
1x 3.5mm audio cables, male-male
* Notes
1) Each connected computer's video interface may be either HDMI or DisplayPort.
2) One computer may use an HDMI video connection to the switch while another computer may use a DisplayPort video connection.
3) Only one video connection per computer is supported.
4) Connected monitor may have either HDMI or DisplayPort video connection.
5) Only one video connection to one monitor is supported.
