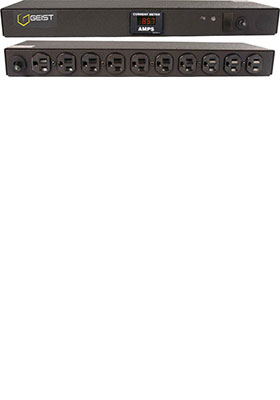

11864VH: Metered, standard PDU, 15A, 120V, rack-mount, 10x NEMA 5-15R rear receptacles

breakered, 10-foot cord with 5-15P plug, local current monitoring, black powder coat finish

Improve reliability, energy efficiency, and prevent crippling downtime caused by overloads using Geist's metered PDU. Equipped with a local digital display, this metered PDU provides power consumption metrics instantly, ideal for when deploying or moving critical server equipment.

Without built-in surge protection, BRAN100-10 is equipped with a local digital current meter that provides real-time local load monitoring and helps to avoid potential overloads.

This metered PDU is ideal for installations in facilities with proper surge protection at the main electrical service entrance.

Monitoring: Current; local; aggregate - total unit monitoring; digital RMS current meter +/- 2% accuracy with full scale 60Hz sine wave input.

Plug Form

5-15P



Receptacle

NEMA 5-15R (quantity: 10)



• Local display: Yes
• Environmental: No
• Configuration: Horizontal
• Rack-mount / Length: 19 in / 483 mm
• Volts: 120V
• Amps: 15A
• kW-input: 1.4kW
• Plug type: NEMA straight blade
• Plug form: 5-15P

• Plug quantity: 1

• Cord length: 10 feet
• Breaker: Yes

• On/off switch: No

• Receptacle type: NEMA 5-15R

• Receptacle quantity: 10
